Pacer TDT06F-12RS Deutsch Plug Repair Kit for 14-18 AWG Wire, 12-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (12 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 12
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

Contents:

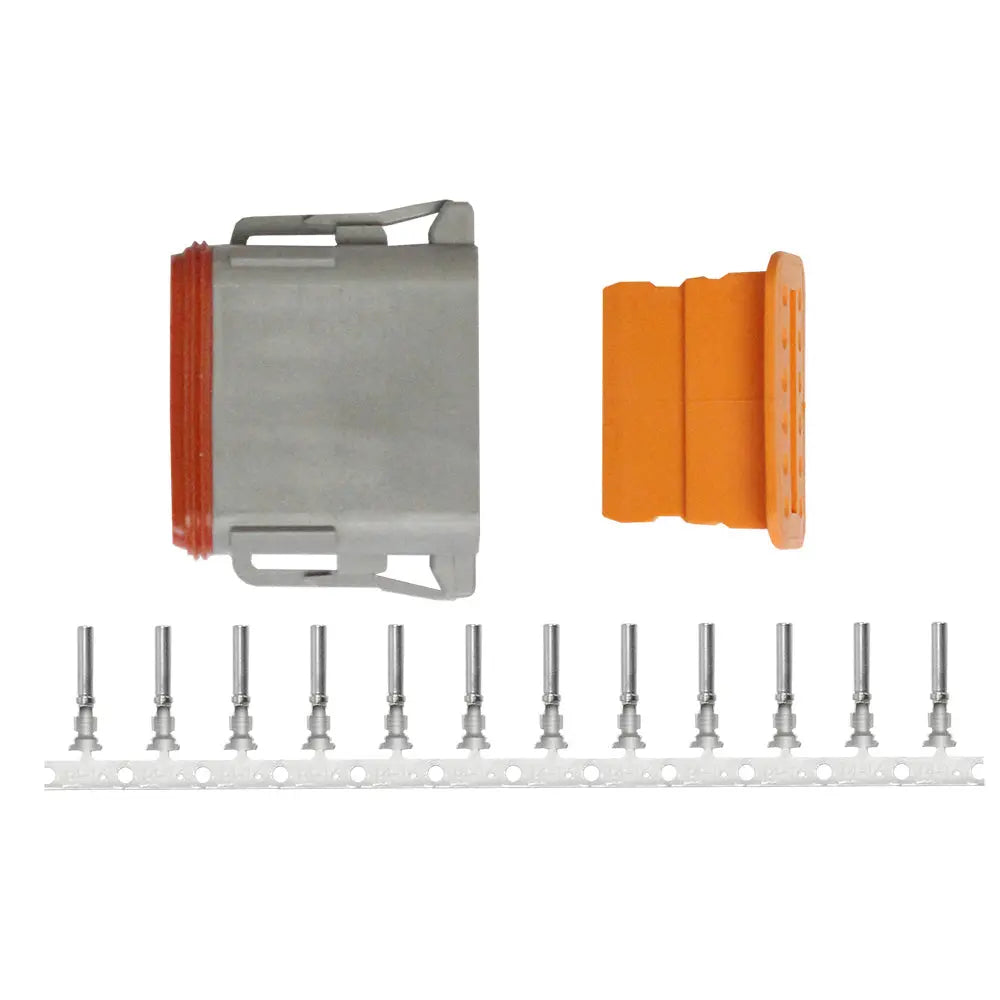

• (1) 12 pos. plug
• (1) 12 pos. wedge lock
• (14) sockets
• (6) cavity plugs

The Pacer TDT06F-12RS Deutsch Plug Repair Kit is designed for efficient and reliable wire-to-wire connections in various electrical applications. This kit features a 12-position rectangular receptacle made from durable plastic reinforced with glass fiber, ensuring ruggedness and long-lasting performance. The kit includes all necessary components to assemble a complete connector, including sockets, wedge lock, and cavity plugs, providing a comprehensive solution for maintenance and repair tasks. The design incorporates wedge locks that ensure proper contact alignment and retention, along with redundant silicone seals that offer ingress protection up to IP68 and IP6K9K standards, making it suitable for harsh environments. The contacts are hand-insertable and removable, facilitating easy installation and field servicing without specialized tools. The connector supports 14 AWG wire, with each socket capable of handling up to 13 amps continuously, making it suitable for various demanding electrical systems. Operating effectively across a temperature range from -55°C to 125°C, this repair kit is compliant with EU RoHS/ELV directives and recognized under UL-94 standards, ensuring safety and environmental compliance. Whether used for wire-to-wire applications or within enclosed connectors, the Pacer Deutsch Plug Repair Kit provides a reliable, field-proven solution for electrical installers and maintenance professionals seeking high-quality, durable connectors that meet stringent standards.

Features:

• Includes all parts needed for connector assembly

• Provides one to two extra terminals for replacement or expansion

• Cavity plugs seal open circuits to prevent moisture and debris ingress

• Wedge locks ensure secure contact alignment and retention

• Redundant silicone seals enhance ingress protection

• Contacts are hand-insertable and removable for easy servicing

• Designed for wire sizes 14 AWG with a 13-amp capacity

• Durable plastic housing reinforced with glass fiber for rugged environments

• Supports harsh conditions with operating temperature range from -55°C to 125°C

• Compliant with IP68 and IP6K9K ingress protection standards

• Meets EU RoHS/ELV and UL-94 safety standards
