Pacer TDT06F-2RS Deutsch Plug Repair Kit for 14-18 AWG Wires, 2-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (2 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 2
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

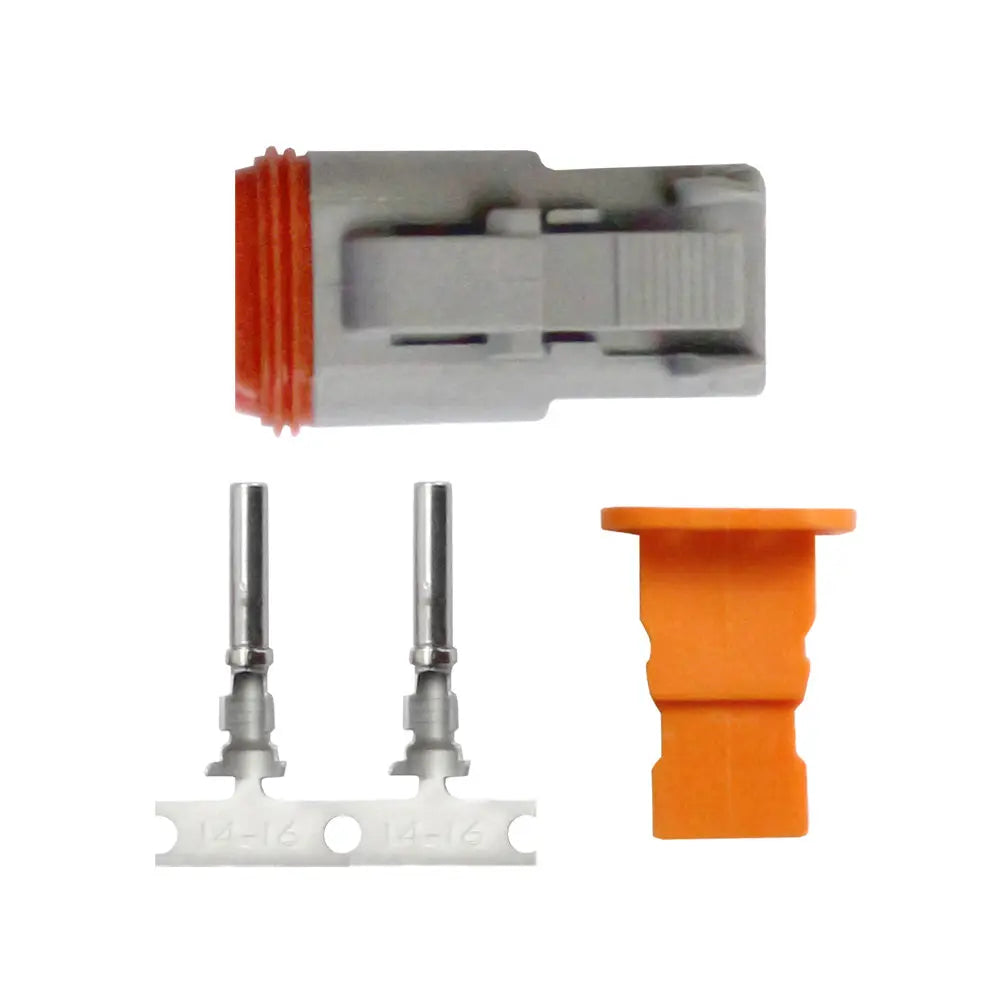

Contents:

• (1) 2 pos. plug
• (1) 2 pos. wedge lock
• (3) sockets

The Pacer TDT06F-2RS Deutsch Plug Repair Kit is designed for reliable wire-to-wire connections in demanding environments. Crafted for 14-18 AWG wire gauge applications, this kit includes all necessary parts to assemble a durable, field-repairable connector. The kit features two cavities, housing a rectangular plastic shell reinforced with glass fiber for added strength and durability. With a maximum continuous current of 13 amps per contact, it is suitable for various industrial and automotive wiring projects requiring secure, sealed connections.

Each kit contains a 2-position plug, a wedge lock to ensure secure contact retention, and three sockets, providing flexibility for multiple wiring configurations. The design incorporates redundant silicone seals and wedge locks, ensuring optimal sealing against moisture and contaminants with an ingress protection rating of IP68 and IP6K9K. These features make the connectors ideal for applications where environmental sealing and rugged reliability are critical. Hand-insertable and removable contacts facilitate easy installation and maintenance, while the operating temperature range from -55°C to 125°C allows for use in harsh conditions.

Manufactured under compliance with EU RoHS/ELV standards and recognized UL-94 flame-resistance certification, the Pacer TDT06F-2RS ensures safety and environmental responsibility. The connector's housing is a rectangular receptacle made from high-quality plastic reinforced with glass fiber, providing excellent mechanical strength. Wedge locks maintain precise contact alignment and retention, preventing accidental disconnection under vibration or stress. Suitable for a wide range of wire-to-wire applications, this repair kit offers field-proven reliability for professionals seeking a robust and easy-to-use connection solution.

Features:

• Includes all parts needed to assemble a connector

• One to two extra terminals for added flexibility

• Cavity plugs to seal open circuits

• Wedge locks ensure contact alignment and retention

• Redundant silicone seals for superior environmental protection

• Hand-insertable and removable contacts for easy installation and maintenance

• High-quality plastic housing reinforced with glass fiber for durability

• Designed for 14-18 AWG wire gauge applications

• Rated for continuous current of 13 amps per contact

• Operates in a temperature range from -55°C to 125°C
