Pacer TDT06F-6RS Deutsch Plug Repair Kit for 14-18 AWG Wires, 6-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (6 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits

Applications:

• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 6
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

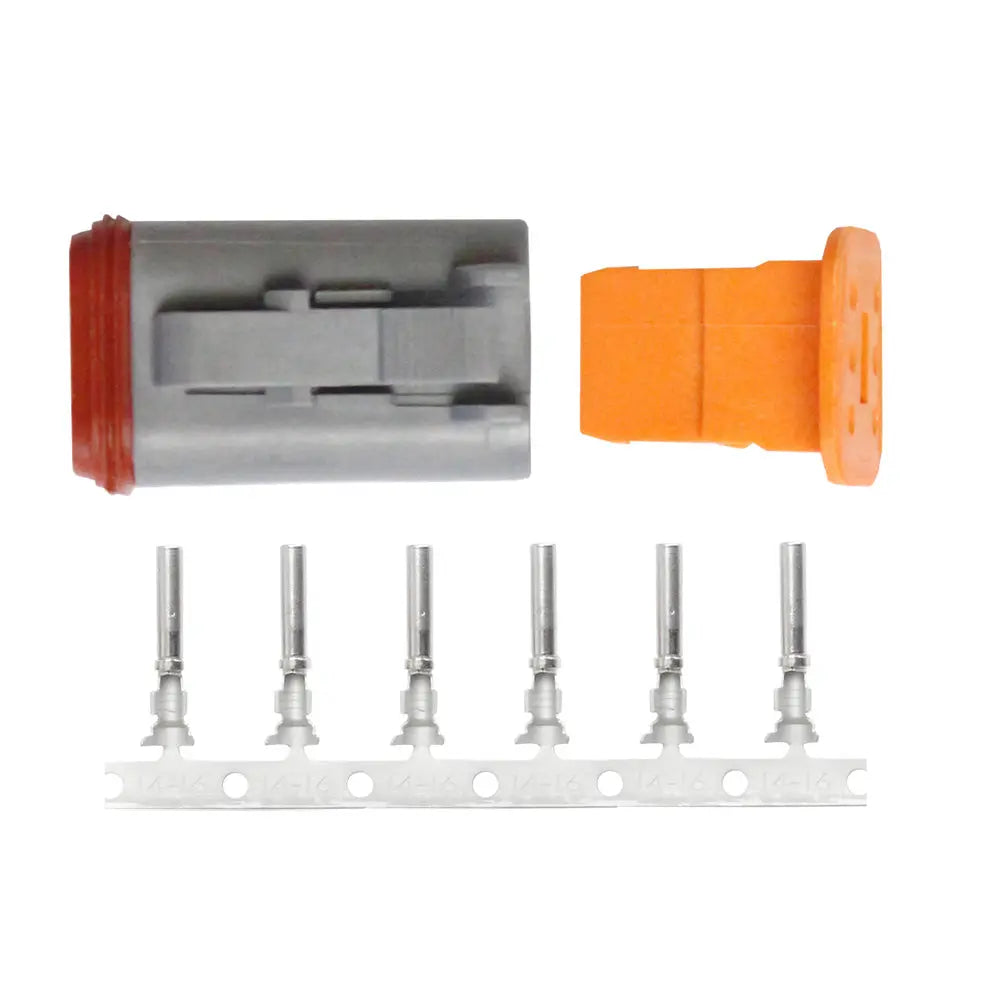

Contents:

• (1) 6 pos. plug
• (1) 6 pos. wedge lock
• (8) sockets
• (3) cavity plugs

The Pacer TDT06F-6RS Deutsch Plug Repair Kit is designed for reliable and durable wire-to-wire connections in demanding environments. This kit features a 6-position rectangular receptacle housing made from reinforced plastic with glass fiber, ensuring ruggedness and long-term performance. It is specifically tailored for 14 AWG wires, providing a secure fit with high electrical capacity, thanks to the use of larger 16 contacts rated for 13 amps each. The kit’s comprehensive contents include a plug, wedge lock, sockets, and cavity plugs, making it suitable for quick assembly and field repairs. The design incorporates wedge locks for precise contact alignment and redundant silicone seals to prevent moisture ingress, achieving an IP68 and IP6K9K ingress protection level. Its operating temperature range from -55°C to 125°C makes it adaptable across various industrial and automotive applications. The contacts are hand-insertable and removable, facilitating maintenance and troubleshooting. Compliant with EU RoHS/ELV standards and recognized under UL-94, this repair kit meets strict safety and environmental standards, providing peace of mind for critical wiring tasks. Whether used in enclosed connectors or wire-to-wire configurations, the Pacer Deutsch Plug Repair Kit offers a dependable solution for high-quality, rugged electrical connections in challenging environments.

Features:

• Includes all necessary parts for easy assembly and repair

• Two extra terminals provided for flexibility

• Cavity plugs seal open circuits for protection

• Wedge locks ensure secure contact retention

• Redundant silicone seals prevent moisture ingress

• Hand-insertable and removable contacts for maintenance

• Rugged design with glass fiber reinforced plastic housing

• High current capacity with 16 contacts rated for 13 amps

• Ingress protection rated IP68 and IP6K9K

• Operating temperature range from -55°C to 125°C

• Compliant with EU RoHS/ELV and UL-94 standards
