Pacer TDT06F-8RS DT Deutsch Plug Repair Kit for 14-18 AWG Wires, 8-Position

DT Deutsch Plug Repair Kit - 14-18 AWG (8 Position)

Pacer's DT repair kits use the larger size 16 contacts (Deutsch Pin P/N 0460-215-16141, Socket P/N 0462-209-16141) for applications using 14 AWG wires. However, DT series connectors are designed for 20-14 wire gauge applications. The DT series offers electrical designers the ability to use multiple sizes of 16 contacts (20-14 AWG) each with a 13-amp continuous capacity, within a single shell. Pacer also sells these other components for use in a wider range of applications.

Features:

• Packs include all parts needed to assemble a connector
• One to two extra terminals
• Cavity plugs to seal open circuits
• Applications:
• Wire-to-wire applications
• Enclosed connectors offer field-proven reliability and rugged quality

Compliances:

• Ingress Protection (IP) Level: IP68 and IP6K9K
• EU RoHS/ELV
• Standard UL-94 Recognized

Characteristics:

• Wedge locks ensure contact alignment and retention
• Redundant Silicone Seals
• Hand-insertable and removable contacts

Technical Specifications:

• Number of Cavities: 8
• Housing: Rectangular receptacle, plastic reinforced with glass fiber
• Contact Size: 16 (13 amp)
• Wire Size: 14 AWG
• Holds Pin/Socket: Sockets
• Operating Temperature: -55C to 125C

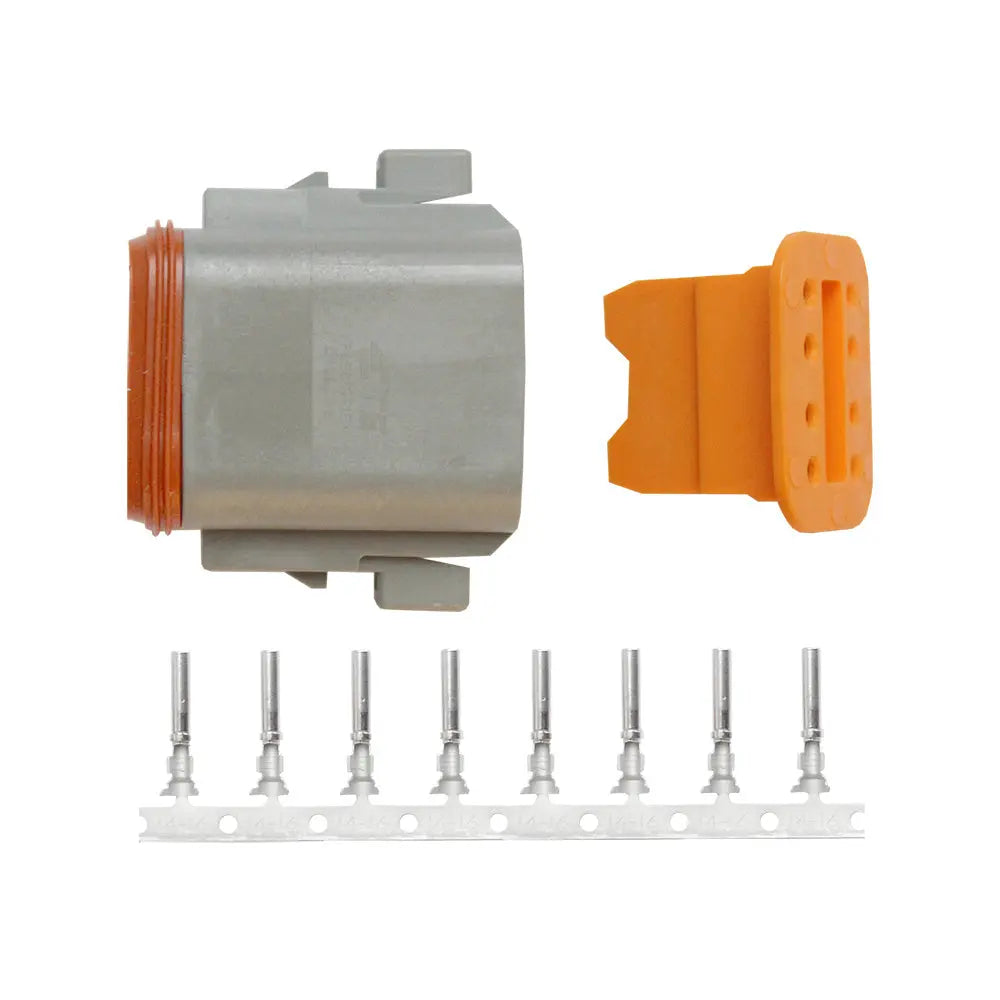

Contents:

• (1) 8 pos. plug
• (1) 8 pos. wedge lock
• (10) sockets
• (4) cavity plugs

The Pacer TDT06F-8RS DT Deutsch Plug Repair Kit is designed for reliable wire-to-wire connections in demanding environments. This kit includes all necessary parts to assemble an 8-position connector suitable for 14-18 AWG wires, featuring durable construction and field-proven performance. The housing is a rectangular receptacle made from reinforced plastic with glass fiber, ensuring ruggedness and longevity in various applications. The kit contains sockets, cavity plugs, and wedge locks that secure contact alignment and retention, providing a dependable electrical connection. These connectors are rated for a continuous 13-amp capacity per contact and are compliant with IP68 and IP6K9K ingress protection standards, making them suitable for harsh conditions. The inclusion of redundant silicone seals and hand-insertable contacts enhances sealing and ease of assembly, ensuring secure connections even in challenging environments. Operating across a temperature range of -55°C to 125°C, these connectors are ideal for demanding industrial, automotive, or military applications where durability and reliability are critical.

Features:

• Complete assembly kit includes all necessary parts for connector construction

• Contains one to two extra terminals for replacement or additional connections

• Includes cavity plugs to seal open circuits for protection

• Designed for wire-to-wire applications in rugged environments

• Enclosure provides field-proven reliability and durability

• Ingress protection rated at IP68 and IP6K9K for dust and water resistance

• RoHS and ELV compliant, UL-94 recognized materials ensure safety and environmental standards

• Wedge locks guarantee contact alignment and retention for secure connections

• Redundant silicone seals enhance sealing performance

• Contacts are hand-insertable and removable for easy maintenance
