SKU:104996

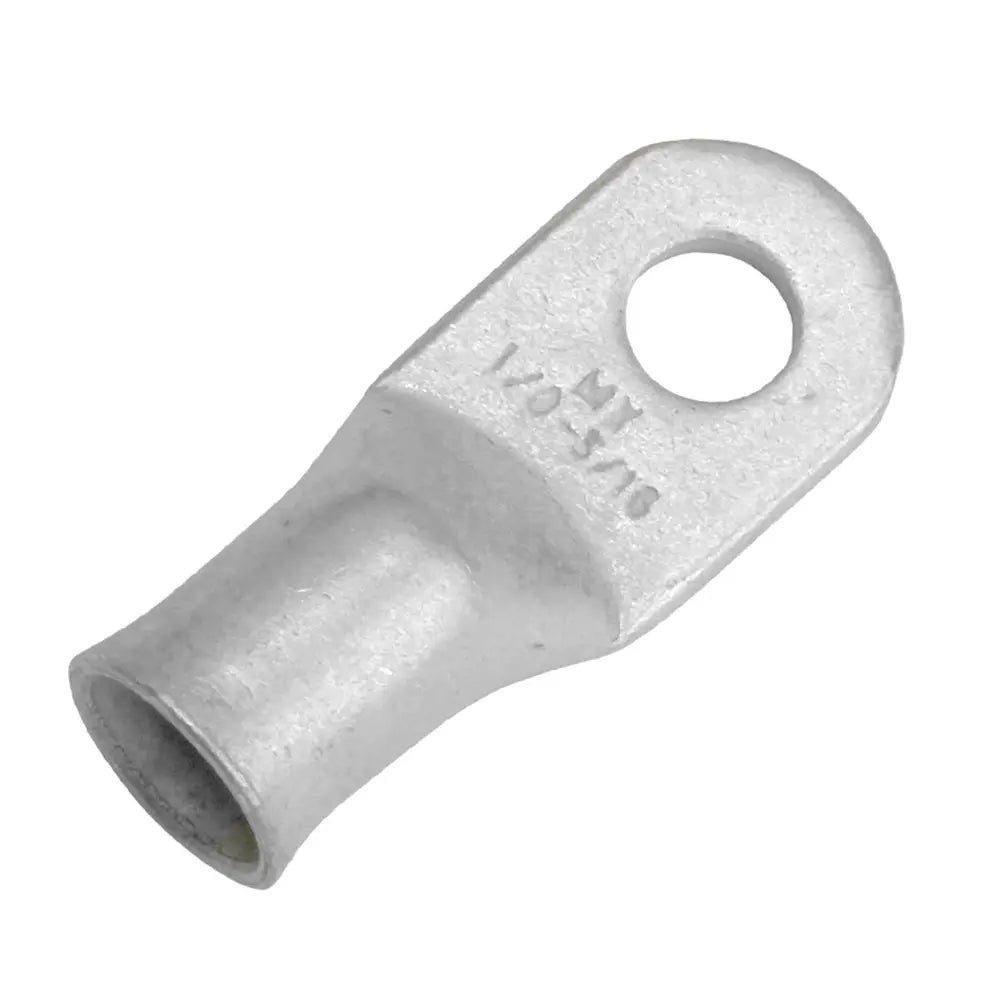

Tinned Lug 1/0 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
Compliances:
Specifications:
Ensure reliable and durable electrical connections with the Pacer Tinned Lug Model TAE1/0-56R-10. Crafted from seamless tubes of 99.9% copper, these lugs offer superior conductivity and are designed for stranded copper wires. The tin-plated surface prevents corrosion and provides a watertight seal, making them ideal for marine and outdoor applications. Their no-exposed-seam construction enhances longevity and resistance to environmental elements, especially when combined with epoxy heat shrink tubing for full conductor encapsulation. The larger pad area ensures better contact and efficient current transfer, while the stamped cable size and stud hole facilitate quick identification during installation. These lugs are rated for 600 volts, providing a safe and secure connection in a variety of electrical systems. Suitable for crimping or soldering, they feature a highly controlled flare to ease cable insertion and a tight barrel-to-pad transition for a longer usable barrel length. With compliance to industry standards such as UL, CSA, RoHS, and ASTM-B-152, the Pacer Tinned Lug ensures quality and safety in demanding environments. The package contains ten lugs, each measuring approximately 1.84 inches in length and 0.73 inches in width, with a stud size of 5/16 inch, making them suitable for a wide range of applications requiring robust terminal connections. Whether for marine, industrial, or heavy-duty electrical systems, these lugs deliver dependable performance and corrosion resistance, ensuring your electrical connections remain secure over time.
Features:
