SKU:104993

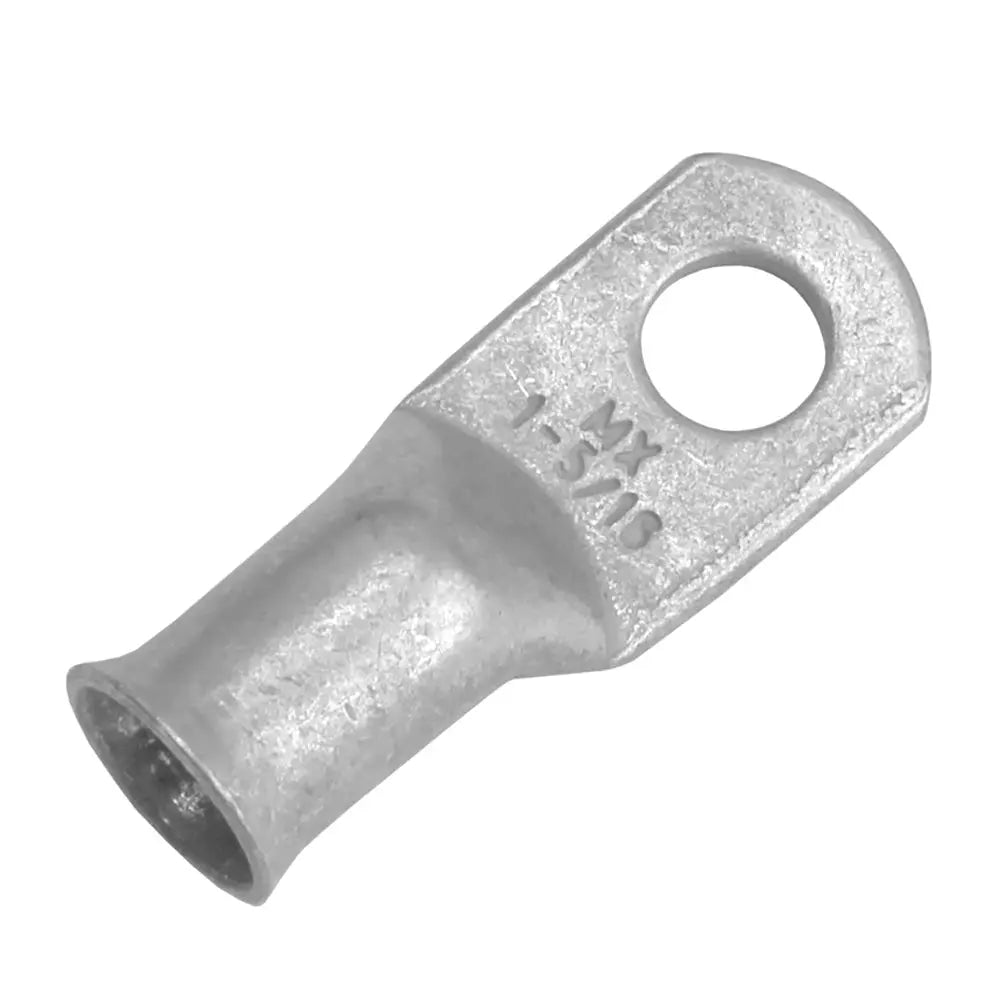

Tinned Lug 1 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
Compliances:
Specifications:
Ensuring a secure and durable electrical connection is critical in many applications, especially in marine environments where exposure to moisture and elements is common. The Pacer Tinned Lug Part TAE1-56R-10 is designed to provide a high-quality solution for stranded copper wires with a 1 AWG gauge and a 5/16 inch stud size. Constructed from seamless tubes of 99.9% copper, these lugs offer excellent conductivity and are tin-plated for corrosion resistance. Their no exposed seams design enhances durability and makes them suitable for waterproof connections, particularly when used with epoxy heat shrink. This combination fully envelops the conductor, protecting it from moisture and environmental damage, which is essential for marine, outdoor, or harsh industrial conditions. To install, strip your wire, slide the lug over the conductor, and crimp with the appropriate tool. For added protection, apply epoxy-lined heat shrink to ensure a waterproof seal and increased longevity. These lugs are rated for 600 volts, making them versatile for various electrical systems, and are compatible with both crimping and soldering methods. The larger pad area promotes better contact, while the stamped cable size and stud hole on the pad facilitate easy identification and proper installation. The highly controlled flare design allows for easy cable insertion, and the tight barrel-to-pad transition ensures a longer usable barrel length, reducing the risk of failure over time. The Pacer Tinned Lug complies with industry standards including ASTM-B-152 copper, UL, CSA, and RoHS, ensuring safety and environmental compliance. Whether used in marine, automotive, or industrial wiring, this pack of ten lugs provides a reliable, corrosion-resistant connection solution that enhances overall system durability and performance.
Features:
