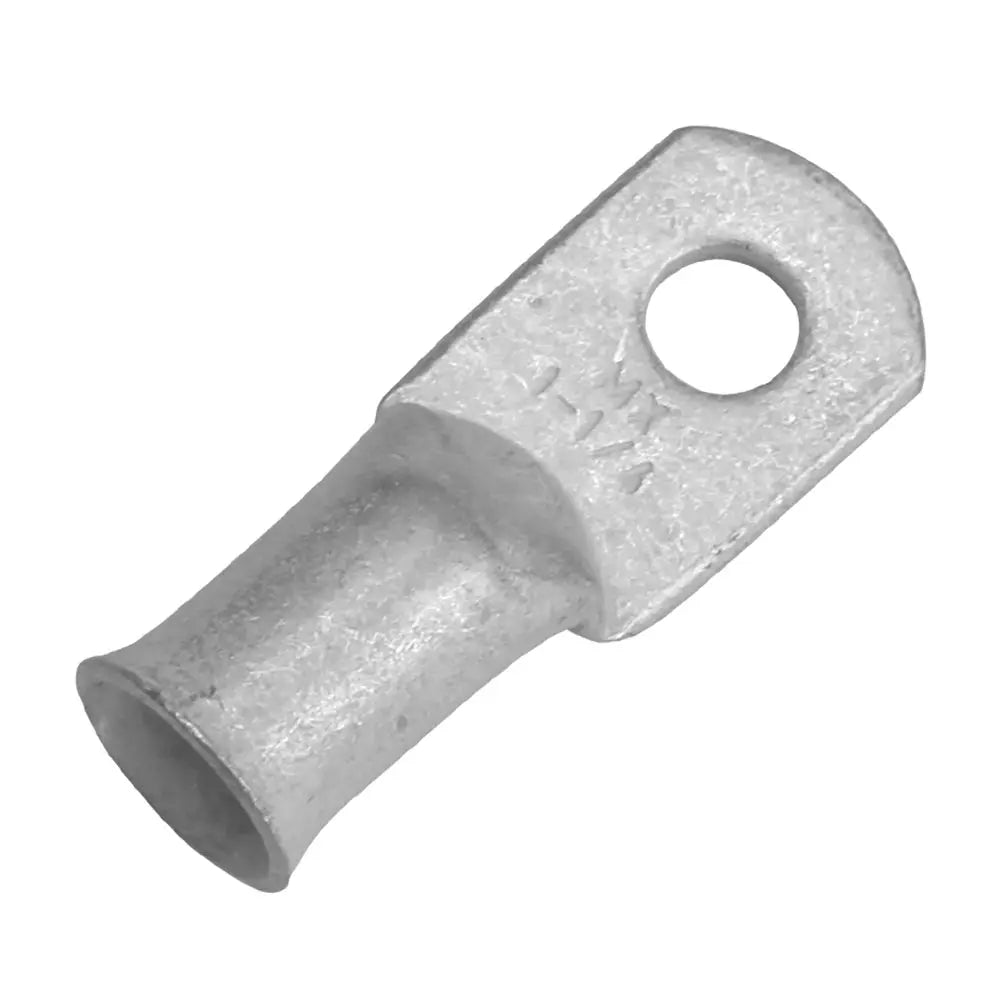

Pacer Tinned Lug 1 AWG with 1/4 Inch Stud - 10 Pack for Reliable Marine Electrical Connections

Tinned Lug 1 AWG - 1/4 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 1
• Stud Size: 1/4
• Length: 1.719
• Width: 0.692
• Clearance: 0.406
• Package Size: 10

Ensuring a secure and durable electrical connection is crucial for any marine or outdoor electrical system. The Pacer Tinned Lug Part Number TAE1-14R-10 is designed to provide corrosion-resistant, waterproof connections with its tin-plated finish and seamless construction. These closed-end lugs are made from high-quality 99.9% copper tubing, offering excellent conductivity and strength. The larger contact pad and tight barrel-to-pad transition facilitate a secure crimp or solder connection, reducing resistance and ensuring long-term performance. Their design allows for easy cable insertion with a controlled flare, making installation straightforward even in confined spaces. The lug's stamped cable size and stud hole on the pad help verify proper fit, streamlining the assembly process. Whether used in marine environments or other demanding settings, these lugs are rated for 600 volts, making them suitable for a wide range of electrical applications. For added durability and waterproof sealing, they can be combined with epoxy-lined heat shrink, fully enveloping the conductor and protecting it from moisture and corrosion. Compatibility with stranded copper wires, along with certifications such as UL, CSA, and RoHS compliance, assures quality and safety standards are met. This pack contains ten lugs, each with a 1/4 inch stud size, perfect for connecting 1 AWG wires in various electrical setups. Designed for professionals and DIY enthusiasts alike, these lugs help create reliable, long-lasting connections in challenging environments.

Features:

• Tin Plated for corrosion resistance

• No exposed seams for enhanced durability

• Rated for 600V applications

• Manufactured from seamless 99.9% copper for high conductivity

• Designed for stranded copper wires

• Larger pad area for improved contact

• Cable size and stud hole stamped on the pad for easy identification

• Can be crimped or soldered depending on application

• Highly controlled flare facilitates easy cable insertion

• Tight transition from barrel to pad ensures longer usable length
