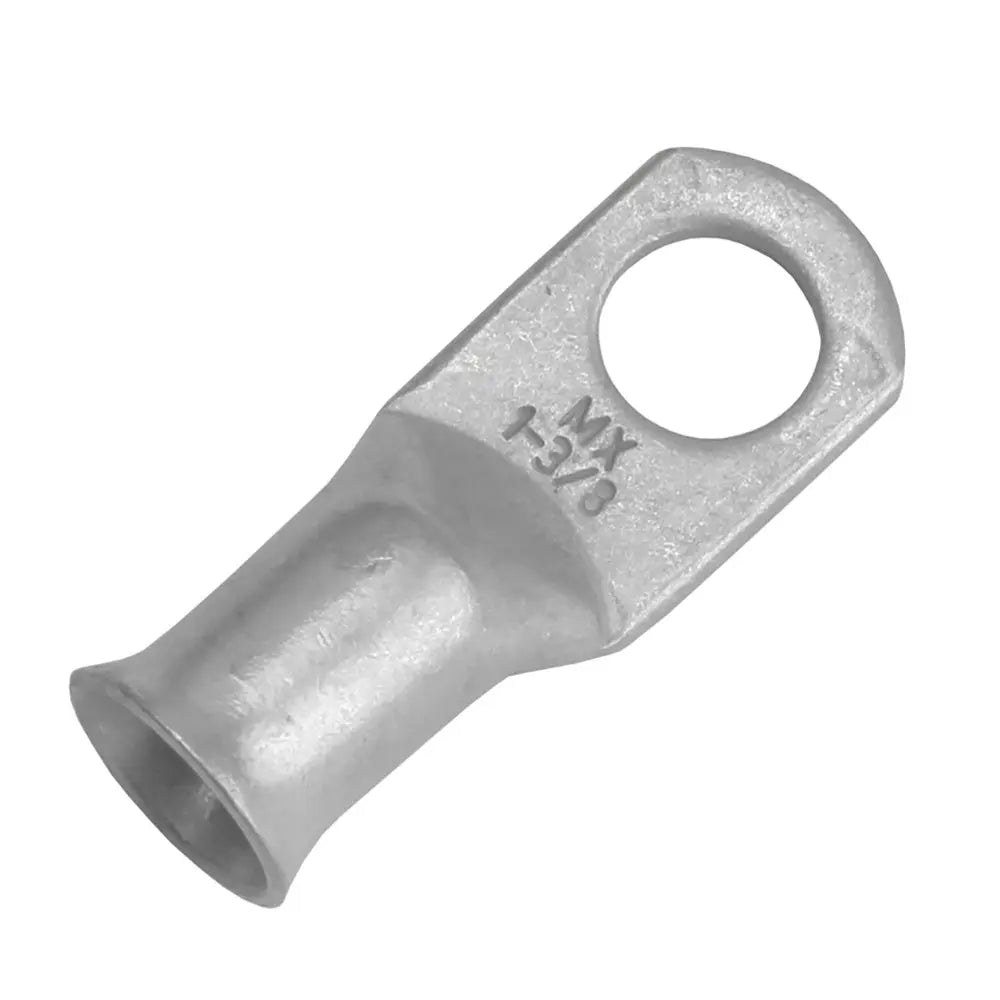

Pacer Tinned Lug 1 AWG with 3/8-Inch Stud - 10 Pack for Marine and Electrical Applications

Tinned Lug 1 AWG - 3/8 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 1
• Stud Size: 3/8
• Length: 1.719
• Width: 0.692
• Clearance: 0.406
• Package Size: 10

Ensure reliable and durable electrical connections with the Pacer Tinned Lug designed for 1 AWG stranded copper wires. Made from seamless tubing of 99.9% copper, this lug offers high conductivity and robust performance. Its tin-plated finish provides corrosion resistance, making it especially suitable for marine environments where waterproof connections are essential. The lug features no exposed seams, which enhances durability and prevents corrosion at connection points. Its larger contact pad ensures a secure, low-resistance connection, while the stamped cable size and stud hole facilitate proper installation. Ideal for both crimping and soldering, this lug can be used with epoxy-lined heat shrink for added protection against the elements, creating waterproof and long-lasting connections in demanding conditions. The lug's highly controlled flare allows for smooth cable insertion, and the tight transition from barrel to pad ensures a longer, more reliable connection length. Designed to meet or exceed industry standards, it is rated for 600 volts and complies with multiple safety and conductivity standards including UL, CSA, and RoHS. Suitable for use in various applications requiring a 3/8-inch stud size, this pack of ten offers a practical solution for electrical projects where strength, longevity, and corrosion resistance are priorities. Whether used in marine, industrial, or electrical systems, the Pacer Tinned Lug provides a dependable connection that stands the test of time.

Features:

• Tin plated for corrosion resistance

• No exposed seams for increased durability

• Rated for 600 volts for reliable performance

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed for stranded copper wires

• Larger pad area for better contact and connection quality

• Cable size and stud hole stamped on the pad for easy identification

• Can be crimped or soldered for versatile installation

• Highly controlled flare facilitates easy cable insertion

• Tight barrel to pad transition ensures longer, more reliable barrel length
