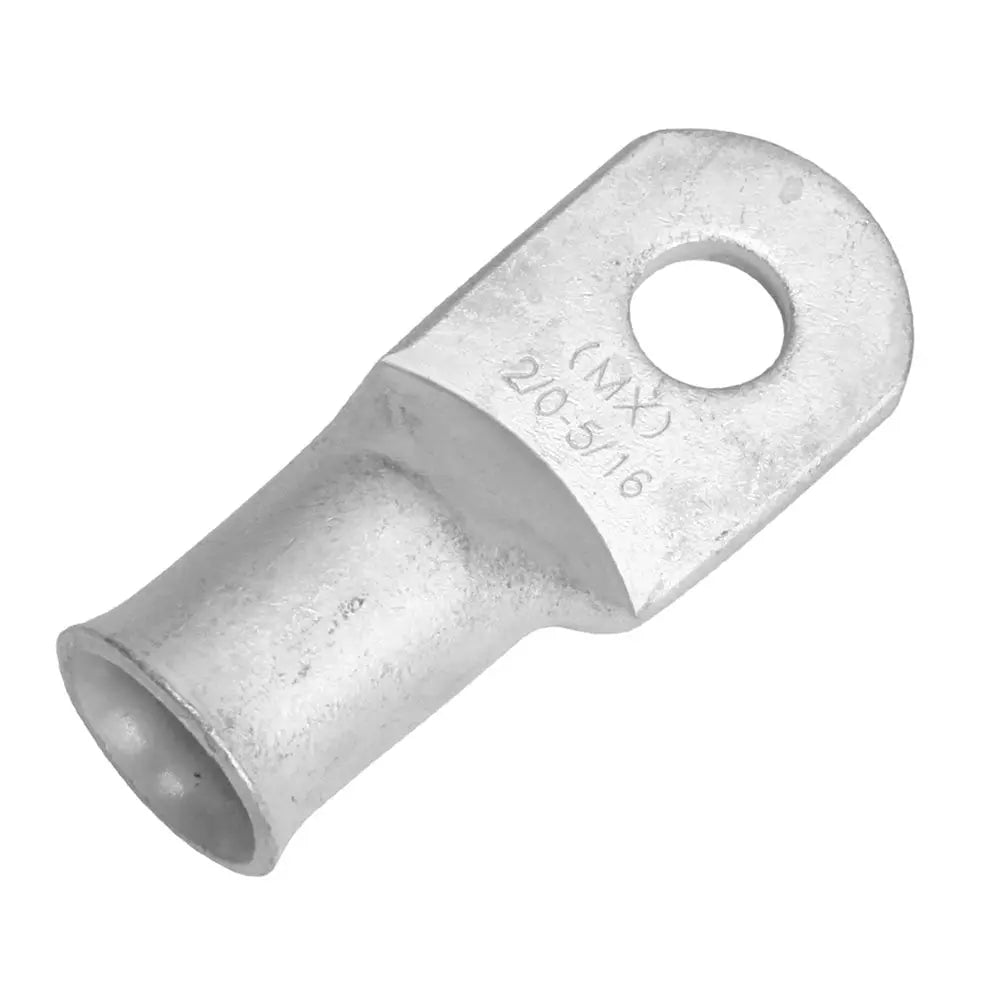

Pacer Tinned Lug 2/0 AWG - 5/16 Inch Stud Size - 10 Pack

Tinned Lug 2/0 AWG - 5/16 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 2/0
• Stud Size: 5/16
• Length: 2.063
• Width: 0.813
• Clearance: 0.500
• Package Size: 10

Ensure reliable and durable electrical connections with the Pacer Tinned Lug 2/0 AWG, designed for high-performance applications. Crafted from seamless tubes of 99.9% copper, these lugs provide excellent conductivity and are tin-plated to resist corrosion, making them ideal for marine and outdoor environments. The absence of exposed seams enhances durability and prevents water ingress, which is critical for maintaining a secure connection in challenging conditions. This lug features a larger contact pad for improved electrical contact and a tight transition from barrel to pad, ensuring longer usability and consistent performance. Suitable for stranded copper wires, it can be crimped or soldered to suit your installation method, with a highly controlled flare that facilitates easy cable insertion. The lug is rated for 600V, and its stud size of 5/16 inch makes it compatible with a wide range of electrical systems. Markings on the pad specify the cable size and stud hole, simplifying the installation process. The packaging includes ten lugs, making it suitable for both repair and new installations, while the specifications ensure compatibility with wire gauges up to 2/0 AWG. The product complies with industry standards including UL and CSA approvals, RoHS compliance, and exceeds SAE conductivity standards, guaranteeing safety and reliability. This lug is an essential component for creating waterproof, corrosion-resistant connections in demanding environments, providing peace of mind for electrical professionals and DIY enthusiasts alike.

Features:

• Tin Plated for corrosion resistance

• No exposed seams for enhanced durability

• Rated for 600V applications

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed for stranded copper wires

• Larger pad area for better contact

• Cable size and stud hole stamped on pad for easy identification

• Can be crimped or soldered for versatile installation

• Highly controlled flare allows for easy cable insertion

• Tight barrel to pad transition ensures longer usable barrel length
