SKU:104992

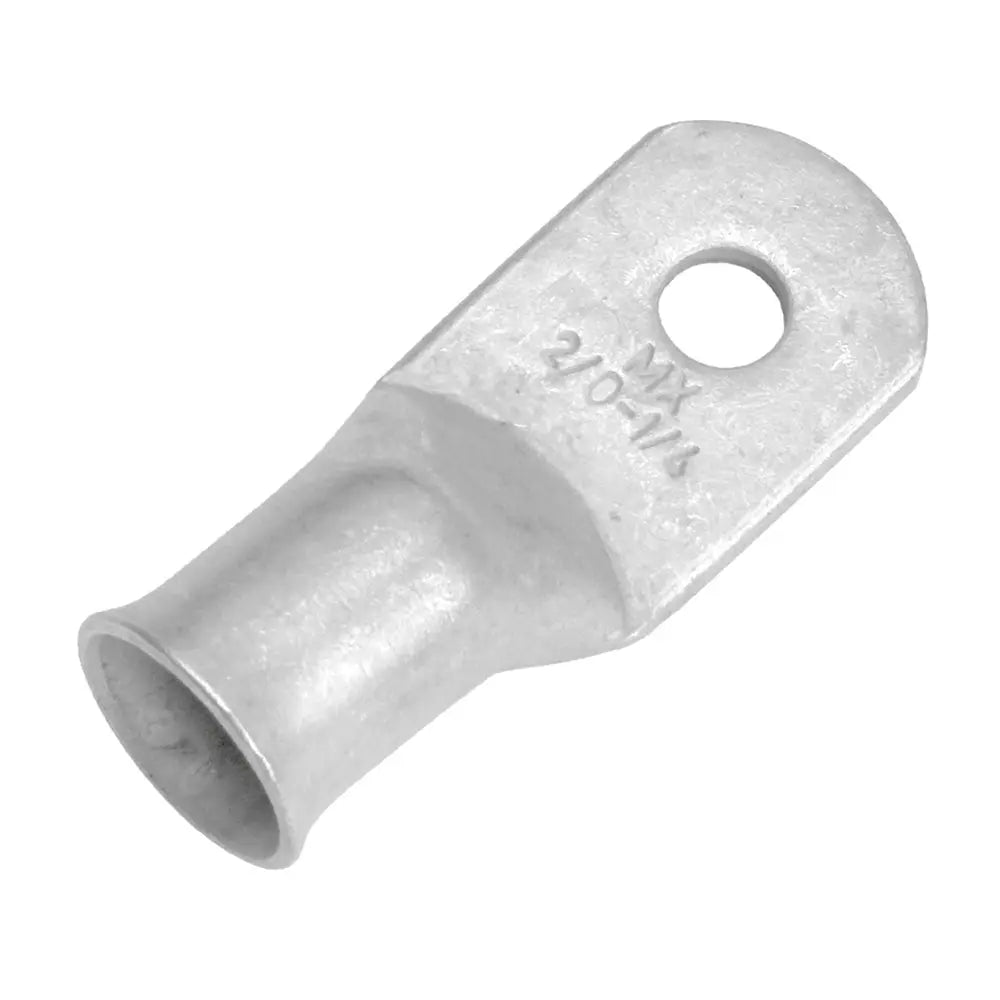

Tinned Lug 2/0 AWG - 1/4 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
Compliances:
Specifications:
Ensure reliable and durable electrical connections with the Pacer Tinned Lug 2/0 AWG Part Number TAE2/0-14R-10. Crafted from seamless 99.9% copper tubing and tin-plated for corrosion resistance, these closed-end lugs are designed for high-performance marine and industrial environments. The absence of exposed seams and a highly controlled flare make cable insertion straightforward while maintaining a secure, waterproof connection when combined with epoxy heat shrink. This lug features a larger contact pad for improved conductivity and a tight transition from barrel to pad for increased longevity. Easy to crimp or solder, it accommodates stranded copper wire and is rated for 600 volts, making it suitable for demanding electrical systems. The lug's stud size is 1/4 inch, with a length of approximately 2.06 inches and a width of 0.81 inches, providing ample space for robust connections. Marked with wire and stud size on the pad, it simplifies installation and ensures proper matching. Compliant with industry standards such as UL, CSA, and RoHS, the lug adheres to SAE conductance standards, guaranteeing performance and safety. This pack includes ten lugs, ideal for large-scale electrical projects requiring consistent, corrosion-resistant connections, especially in marine and outdoor applications where waterproof sealing is critical. Easy to install, these lugs are compatible with crimping tools and can also be soldered for added security. Whether upgrading existing wiring or installing new systems, Pacer's high-quality closed-end lugs provide a reliable, long-lasting solution for your electrical needs.
Features:
