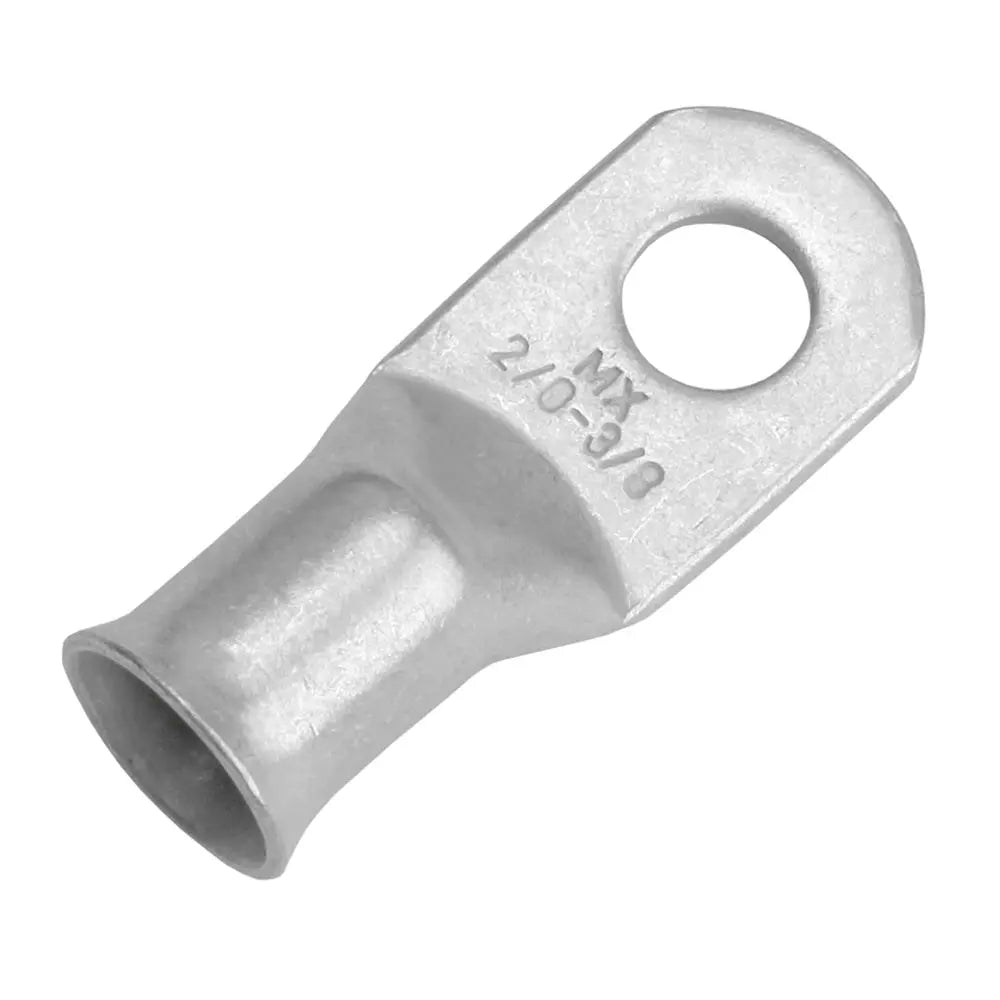

Pacer Tinned Lug 2/0 AWG with 3/8 inch Stud - 10 Pack for Marine and Heavy-Duty Electrical Connections

Tinned Lug 2/0 AWG - 3/8 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 2/0
• Stud Size: 3/8
• Length: 2.063
• Width: 0.813
• Clearance: 0.500
• Package Size: 10

The Pacer Tinned Lug Part Number TAE2/0-38R-10 offers a reliable solution for creating durable electrical connections in demanding environments. Crafted from seamless tubes of 99.9% copper, these lugs provide high conductivity and are tin-plated to resist corrosion, making them ideal for marine and outdoor applications. The no exposed seams design enhances durability and ensures a waterproof connection when used with epoxy heat shrink, fully enveloping the conductor for protection against moisture and environmental elements. This feature makes them suitable for situations where water resistance and longevity are critical. The lugs are designed for stranded copper wires and feature a larger pad area for better contact, ensuring a stable and secure connection. The stamped cable size and stud hole on the pad aid in quick identification and proper installation. The highly controlled flare facilitates easy cable insertion, while the tight transition from barrel to pad extends the usable length of the lug, reducing the risk of damage during crimping or soldering. These lugs are rated for 600 volts, meeting or exceeding industry standards such as ASTM-B-152 and UL CSA approvals, and are RoHS compliant for environmentally conscious applications. Suitable for wire sizes up to 2/0 AWG and compatible with 3/8 inch studs, they come in a pack of 10, making them a practical choice for large projects or maintenance tasks. Proper installation involves stripping the wire, sliding the lug over the conductor, and crimping or soldering for a secure connection, with optional epoxy-lined heat shrink for added durability. For marine, industrial, or heavy-duty electrical systems, Pacer's closed-end lugs provide a dependable, corrosion-resistant, and waterproof connection solution that ensures system integrity over time.

Features:

• Tin plated for corrosion resistance

• No exposed seams for durability and waterproofing

• Rated for 600 volts, suitable for high-voltage applications

• Made from seamless tubes of 99.9% copper for higher conductivity

• Designed for stranded copper wires for reliable connections

• Larger pad area for improved contact quality

• Cable size and stud hole stamped on the pad for easy identification

• Can be crimped or soldered based on installation preference

• Highly controlled flare facilitates easy cable insertion

• Tight barrel to pad transition extends usable barrel length
