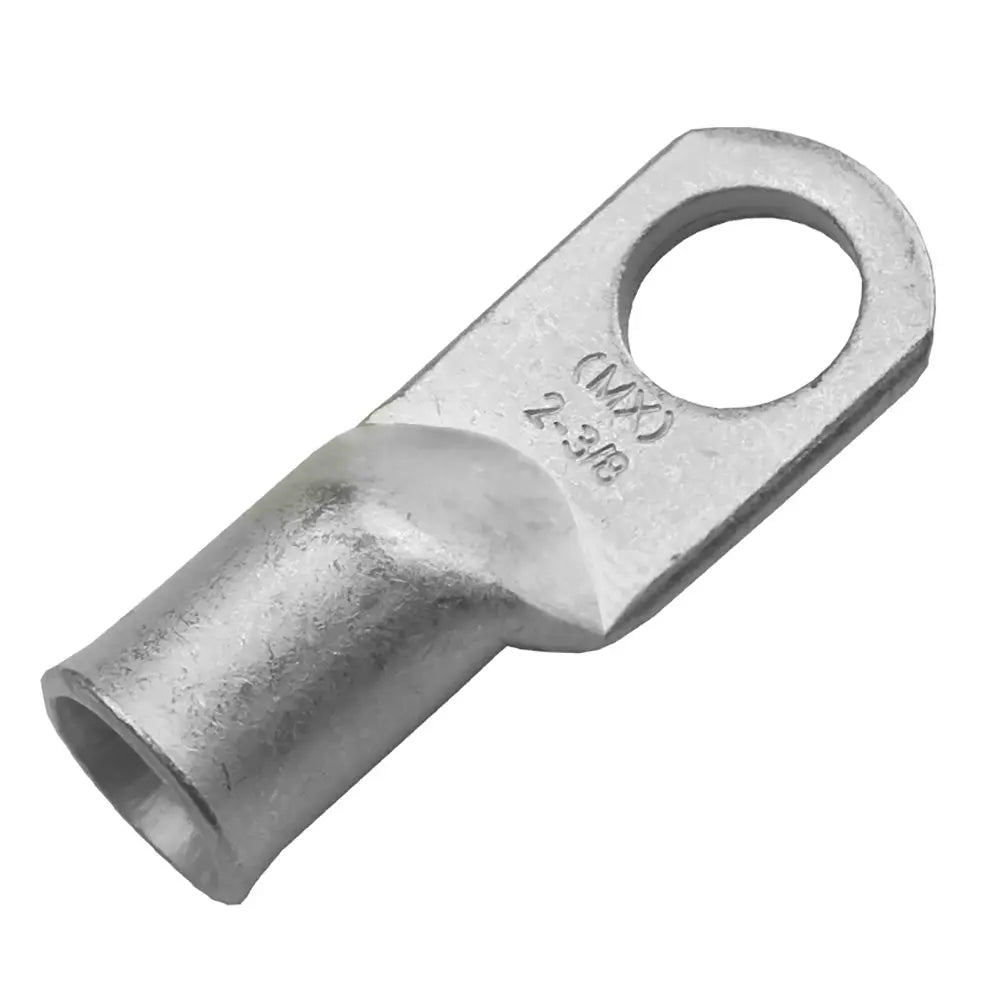

Pacer Tinned Lug 2 AWG with 3/8 Inch Stud - 10 Pack for Marine and Heavy-Duty Electrical Connections

Tinned Lug 2 AWG - 3/8 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 2
• Stud Size: 3/8
• Length: 1.625
• Width: 0.609
• Clearance: 0.406
• Package Size: 10

Ensure reliable and durable electrical connections with the Pacer Tinned Lug 2 AWG, featuring a 3/8 inch stud size, sold in a convenient 10-pack. Designed for applications requiring strong, waterproof connections, these lugs are ideal for marine environments and other demanding settings. Crafted from seamless tubes of 99.9% copper, they offer high conductivity and enhanced corrosion resistance through tin plating. The absence of exposed seams reduces potential points of failure and helps maintain integrity over time. These closed-end lugs fully envelop the conductor when combined with epoxy heat shrink, providing a waterproof seal that prevents moisture ingress and environmental damage, making them suitable for exposed or wet conditions. To install, strip the wire to the appropriate length, slide the lug over the conductor ensuring the insulation butts at the edge, then crimp with a compatible tool, optionally adding epoxy-lined heat shrink for added durability and insulation. The larger pad area promotes better contact, and the highly controlled flare facilitates easy cable insertion, ensuring a secure connection. With a tight barrel-to-pad transition and detailed markings for cable size and stud dimensions, these lugs support both crimping and soldering methods for versatile installation. Certified for 600V operation, they meet industry standards including UL and CSA approvals, RoHS compliance, and exceed SAE conductivity standards. Whether used in marine, industrial, or commercial electrical systems, the Pacer Tinned Lug 2 AWG offers a dependable solution for high-conductivity, corrosion-resistant connections that stand the test of time and environmental exposure.

Features:

• Tin plated for corrosion resistance

• No exposed seams for increased durability

• Rated for 600 volts for high-voltage applications

• Made from seamless tubes of 99.9% copper for superior conductivity

• Designed specifically for stranded copper wires

• Larger pad area for optimal contact and connection stability

• Cable size and stud hole stamped on the pad for easy identification

• Compatible with crimping or soldering installation methods

• Highly controlled flare for smooth cable insertion

• Tight transition from barrel to pad ensures longer usable barrel length
