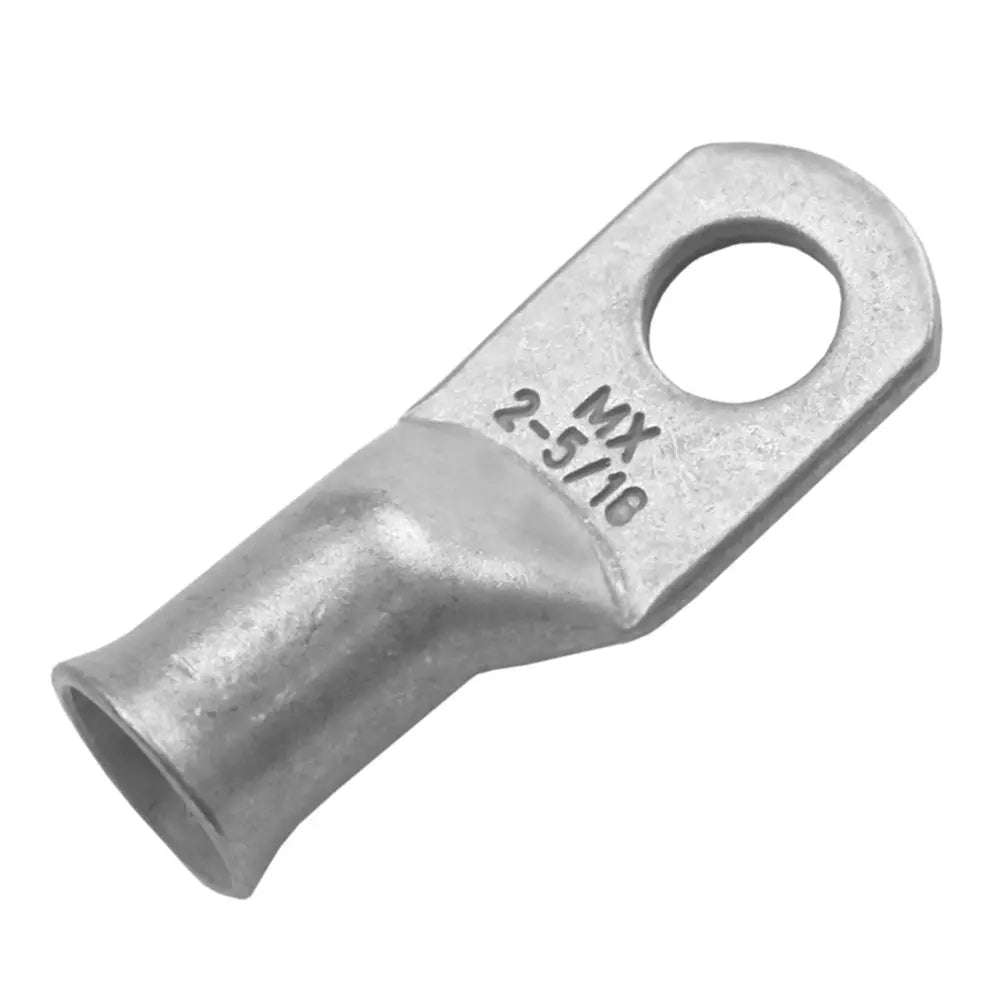

Pacer Tinned Lug 2 AWG with 5/16 Inch Stud - 10 Pack for Marine and Electrical Applications

Tinned Lug 2 AWG - 5/16 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 2
• Stud Size: 5/16
• Length: 1.625
• Width: 0.609
• Clearance: 0.406
• Package Size: 10

Ensure reliable electrical connections with the Pacer Tinned Lug 2 AWG, featuring a 5/16 inch stud size, available in a convenient 10-pack. Crafted from seamless tubes of 99.9% copper, these lugs offer high conductivity and durability for demanding electrical systems. The tin-plated finish provides excellent corrosion resistance, making them particularly suitable for marine environments where waterproof connections are essential. These closed-end lugs are designed without exposed seams, enhancing their integrity and longevity, especially when used with epoxy heat shrink to fully envelop the conductor and protect against moisture and elements. Installation involves stripping the wire to the correct length, sliding the lug over the conductor, and crimping with the appropriate tool for a secure connection. For added durability, epoxy-lined heat shrink can be applied, ensuring a weatherproof and mechanically robust termination. These lugs are rated for 600 volts and are suitable for stranded copper wires, with a larger pad area for improved contact. The component includes stamped cable size and stud hole indicators for easy identification and proper fitment. They can be crimped or soldered depending on application preferences, with a highly controlled flare facilitating easy cable insertion and a tight transition from barrel to pad for extended usability. Certified to industry standards, these lugs comply with ASTM-B-152 for high conductivity, UL and CSA approvals, RoHS compliance, and exceed SAE standards J163 and J1811. Designed for 2 AWG wire and a 5/16 inch stud, each lug measures approximately 1.63 inches in length and 0.61 inches in width, making them suitable for various high-current electrical connections. This pack of ten provides ample components for large or multiple installations, ensuring a secure and corrosion-resistant connection in marine, industrial, or electrical systems.

Features:

• Tin Plated for corrosion resistance

• No exposed seams for durability and waterproofing

• Rated for 600V for high-voltage applications

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed for stranded copper wires

• Larger pad area for better contact and secure connection

• Cable size and stud hole stamped on the pad for easy identification

• Can be crimped or soldered according to application needs

• Highly controlled flare allows easy cable insertion

• Tight barrel to pad transition provides longer usable barrel length
