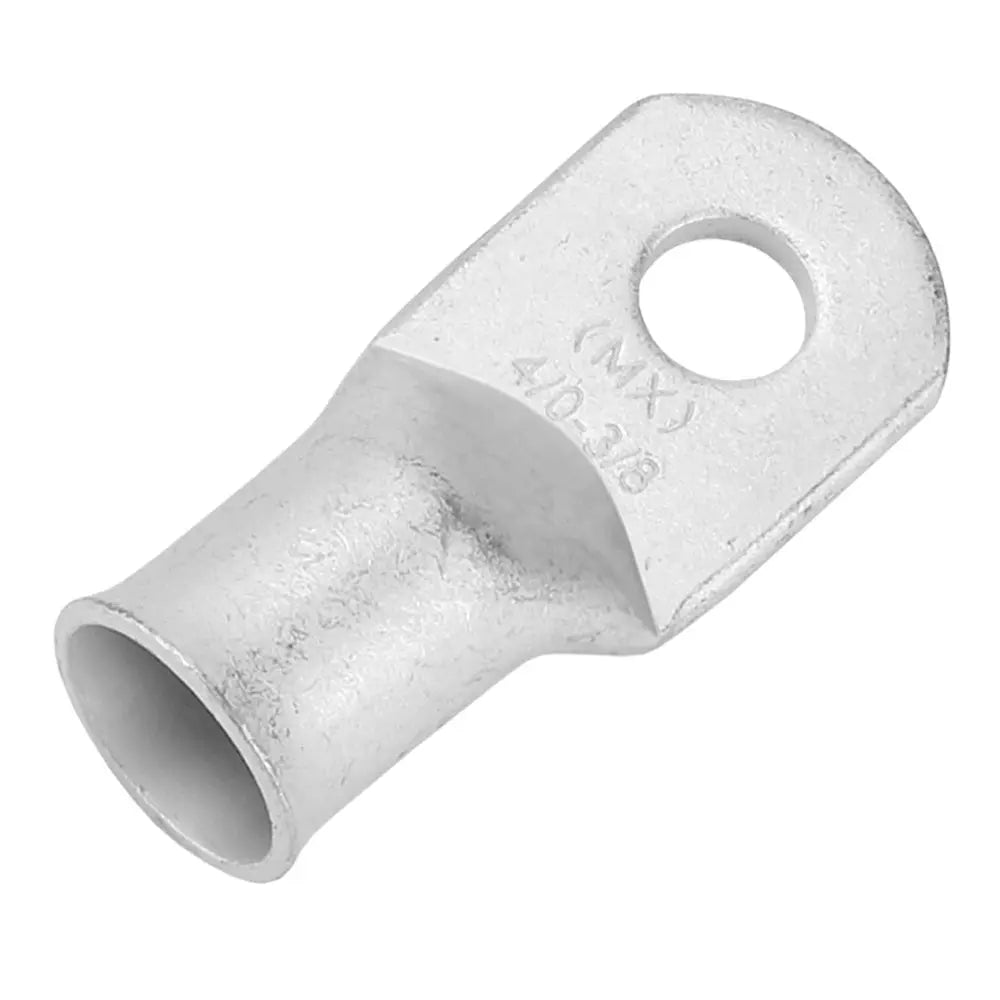

Pacer Tinned Lug 4/0 AWG with 3/8-inch Stud Size - 10 Pack

Tinned Lug 4/0 AWG - 3/8 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 4/0
• Stud Size: 3/8
• Length: 2.344
• Width: 0.984
• Clearance: 0.547
• Package Size: 10

Ensure reliable and durable electrical connections with the Pacer Tinned Lug designed for 4/0 AWG stranded copper wires. This closed-end lug features a seamless, tin-plated construction that provides corrosion resistance and excellent conductivity, making it suitable for demanding environments including marine applications. Its no exposed seams design enhances durability and ensures a waterproof seal when used with epoxy heat shrink, protecting connections from moisture and the elements. The lug's larger pad area promotes better contact, and the highly controlled flare facilitates easy cable insertion, streamlining installation and maintenance. The tight transition from barrel to pad extends the usable length, ensuring a secure and long-lasting connection. The lug is rated for 600 volts, compliant with industry standards, and suitable for crimping or soldering, providing flexibility in installation methods. It also features the stud size stamped directly on the pad for quick identification, with a sturdy copper construction that exceeds SAE conductivity standards. This 10-pack provides an excellent solution for large-scale electrical setups, offering both reliability and ease of use for professional and DIY applications alike.

Features:

• Tin Plated: Provides corrosion resistance and high conductivity

• No exposed seams: Ensures durability and waterproof integrity

• Rated for 600V: Suitable for high-voltage applications

• Made from seamless tubes of 99.9% copper: Ensures superior electrical conductivity

• Designed for stranded copper wires: Optimized for flexible, high-quality connections

• Larger pad area for better contact: Enhances connection stability

• Cable size and stud hole stamped on pad: Facilitates quick identification

• Can be crimped or soldered: Offers flexible installation options

• Highly controlled flare: Allows easy cable insertion

• Tight barrel to pad transition: Extends the usable barrel length for secure connections
