SKU:104983

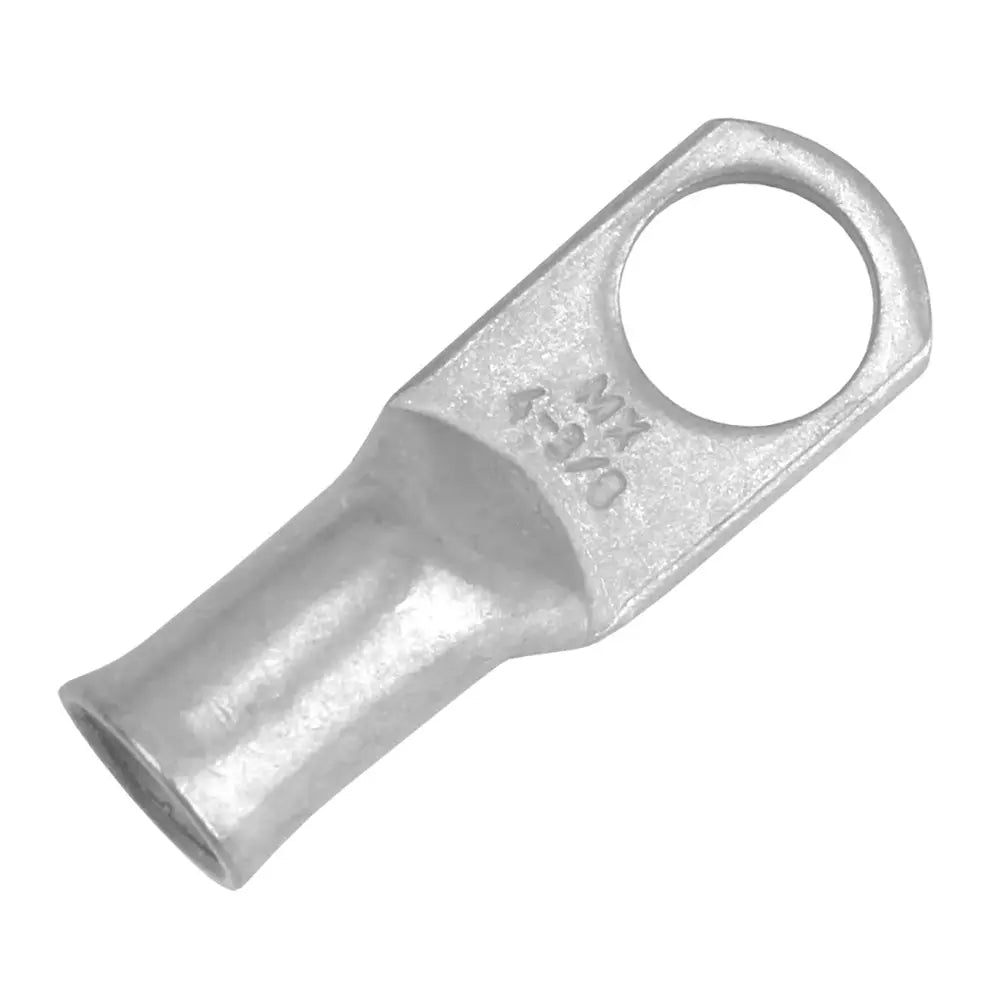

Tinned Lug 4 AWG - 3/8 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
Compliances:
Specifications:
The Pacer Tinned Lug Part Number TAE4-38R-10 provides a durable and corrosion-resistant solution for connecting 4 AWG stranded copper wires in various electrical applications. Made from seamless tubes of 99.9% copper, these lugs are designed to deliver high conductivity and long-lasting performance. The tin-plated finish ensures excellent resistance to environmental elements, making them particularly suitable for marine and outdoor installations where waterproof connections are essential. The lug features no exposed seams, which minimizes corrosion risk and enhances the overall integrity of the connection. Its larger pad area promotes better contact, improving conductivity and reducing potential points of failure. Each lug is stamped with cable size and stud hole specifications for easy identification, and the highly controlled flare facilitates smooth cable insertion. The transition from barrel to pad is tight, providing a longer usable barrel length for secure crimping or soldering, simplifying installation and ensuring reliable electrical contact. This pack includes ten lugs, each with a 3/8 inch stud size, rated for 600 volts, conforming to industry standards such as UL and CSA approvals, RoHS compliance, and exceeding SAE conductivity standards. The lugs are suitable for use with epoxy-lined heat shrink for waterproof, corrosion-resistant connections, especially critical in marine environments, where exposure to moisture and salt can compromise other connection types. With a length of approximately 1.69 inches and width of about 0.53 inches, these lugs provide ample surface area for effective crimping, resulting in a secure and stable connection. Whether for professional electrical work or marine wiring projects, the Pacer Tinned Lug 4 AWG ensures a dependable, high-quality connection that withstands harsh conditions and offers long-term durability.
Features:
