SKU:104982

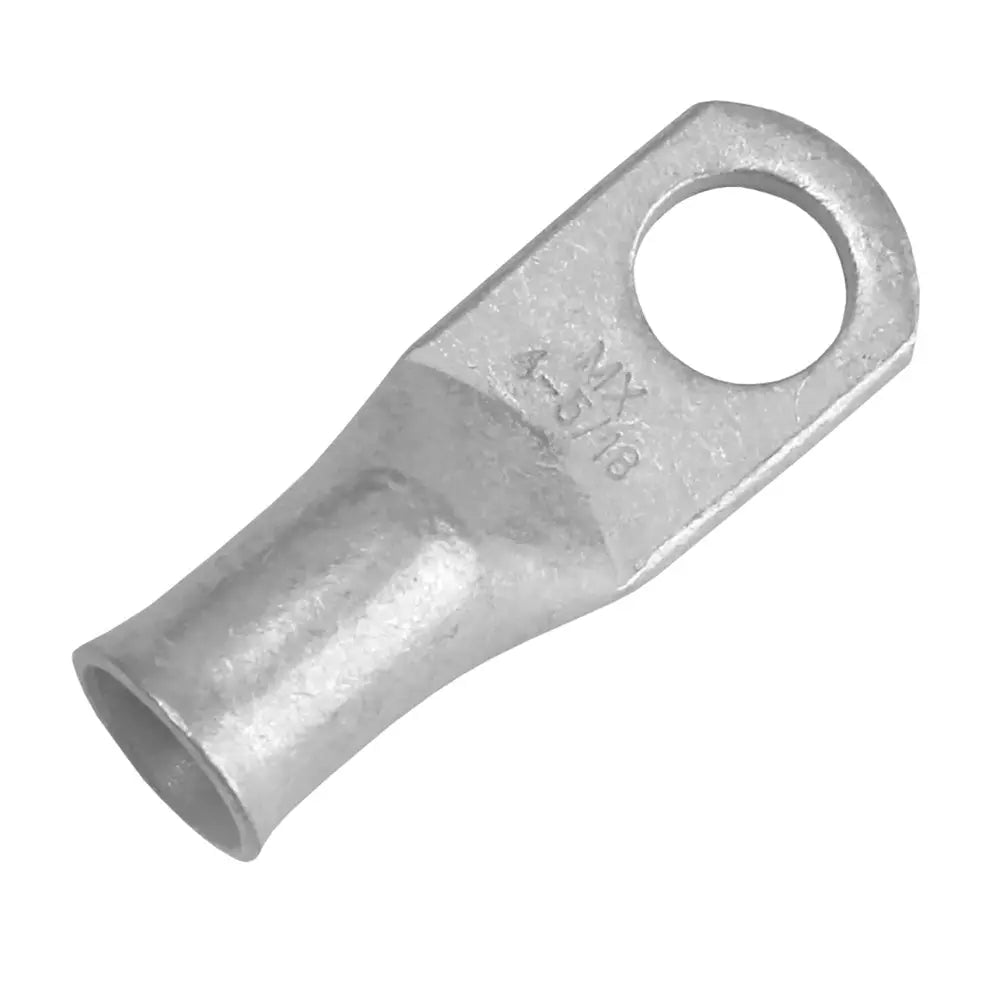

Tinned Lug 4 AWG - 5/16 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
Compliances:
Specifications:
The Pacer Tinned Lug Part TAE4-56R-10 is designed to provide reliable and durable electrical connections for various wiring needs. Constructed from seamless tubes of 99.9% copper, these lugs offer high conductivity and are ideal for stranded copper wires. Their tin-plated finish ensures corrosion resistance, making them suitable for marine environments where moisture and exposure to elements are common. The absence of exposed seams in these closed-end lugs enhances durability and prevents moisture ingress, which is critical for maintaining long-term electrical integrity. These lugs are rated for 600 volts, supporting a wide range of high-performance electrical applications. The larger contact pad area facilitates better electrical contact, ensuring efficient current transfer. Each lug features a stamped cable size and stud hole on the pad for easy identification, and they can be crimped or soldered depending on installation preferences. A highly controlled flare design allows for smooth cable insertion, while the tight transition from barrel to pad ensures longer usability and consistent performance. Ideal for marine, industrial, and general electrical wiring, these lugs can be combined with epoxy-lined heat shrink for waterproof connections, fully enveloping the conductor to protect against elements. Installation involves stripping the wire to the appropriate length, sliding the lug onto the conductor, and crimping with a compatible tool. The product's compliance with industry standards such as ASTM-B-152, UL, CSA, and RoHS ensures safety and quality assurance. The Pacer Tinned Lug 4 AWG with 5/16 inch stud size is available in packs of 10, making it a practical choice for both small and large projects. Whether for new installations or repairs, these lugs deliver dependable performance and corrosion resistance, ensuring long-lasting electrical connections in demanding environments.
Features:
