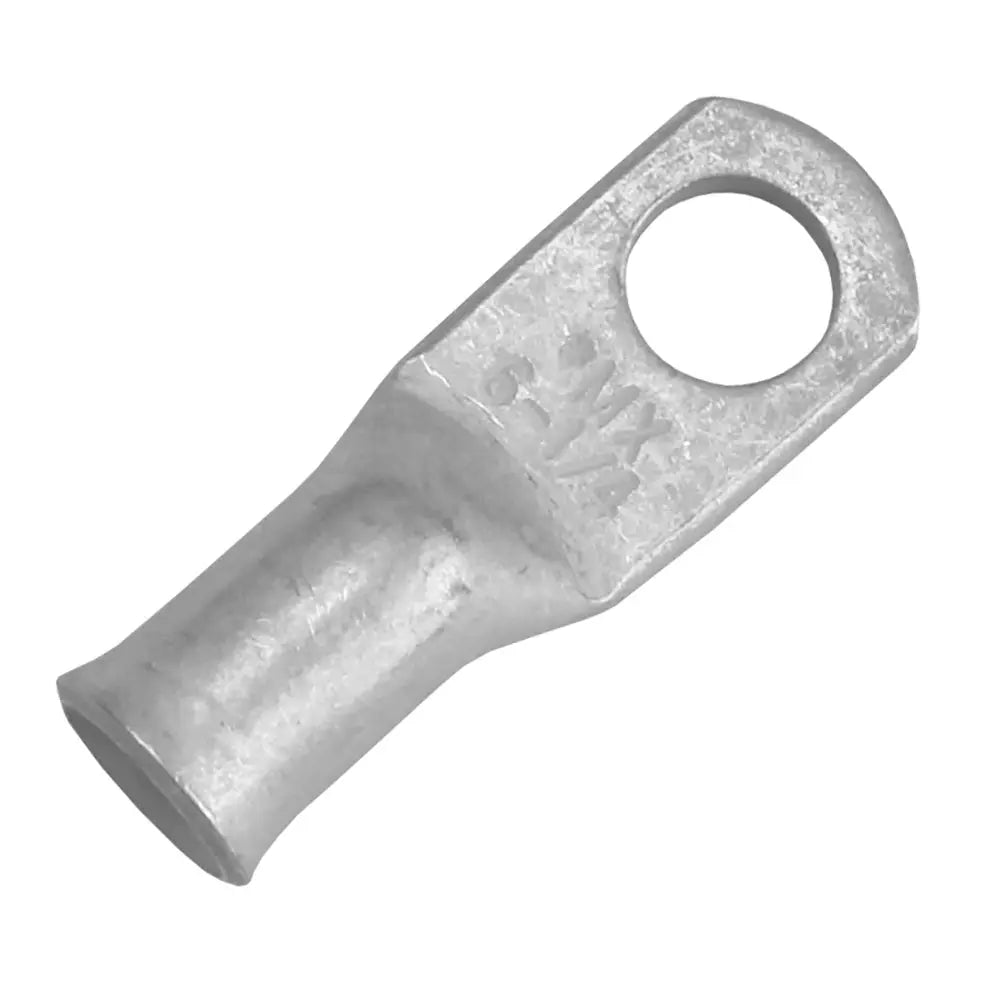

Pacer Tinned Lug 6 AWG with 1/4 Inch Stud Size – 10 Pack for Reliable Marine and Electrical Connections

Tinned Lug 6 AWG - 1/4 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 6
• Stud Size: 1/4
• Length: 1.266
• Width: 0.438
• Clearance: 0.344
• Package Size: 10

Achieve secure and durable electrical connections with the Pacer Tinned Lug designed for 6 AWG stranded copper wires. Crafted from seamless tubes of 99.9% pure copper, these lugs ensure high conductivity and reliable performance. Their tin-plated finish provides excellent corrosion resistance, making them suitable for marine environments and outdoor applications. The absence of exposed seams enhances durability and minimizes potential points of failure, while the larger contact pad improves electrical contact quality. The stamped cable size and stud hole on the lug facilitate quick identification and proper installation. These lugs are rated for 600 volts, allowing safe usage in a variety of electrical systems. They can be crimped or soldered, providing flexibility for different installation preferences. The highly controlled flare design ensures easy cable insertion, and the tight transition from barrel to pad extends the usable length for secure termination. The included heat shrink with epoxy lining offers waterproof protection, enveloping the conductor completely when used. This feature is especially beneficial in marine or harsh environments, where moisture intrusion could compromise electrical integrity. Installation involves stripping the wire to the proper length, sliding the lug over the exposed conductor, and crimping with an appropriate tool. For added durability, epoxy-lined heat shrink can be applied after crimping. Each pack contains ten lugs, making them suitable for both repair and new installations. The Pacer Tinned Lug complies with industry standards including ASTM-B-152, UL, CSA, and RoHS, ensuring quality and safety. Whether for marine, automotive, or industrial applications, these lugs provide a reliable and corrosion-resistant connection that stands the test of time.

Features:

• Tin plated for corrosion resistance

• No exposed seams for increased durability

• Rated for 600 volts electrical systems

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed for stranded copper wires

• Larger pad area for improved contact

• Cable size and stud hole stamped on the lug for easy identification

• Can be crimped or soldered for secure connection

• Highly controlled flare for easy cable insertion

• Tight barrel to pad transition for longer usable length
