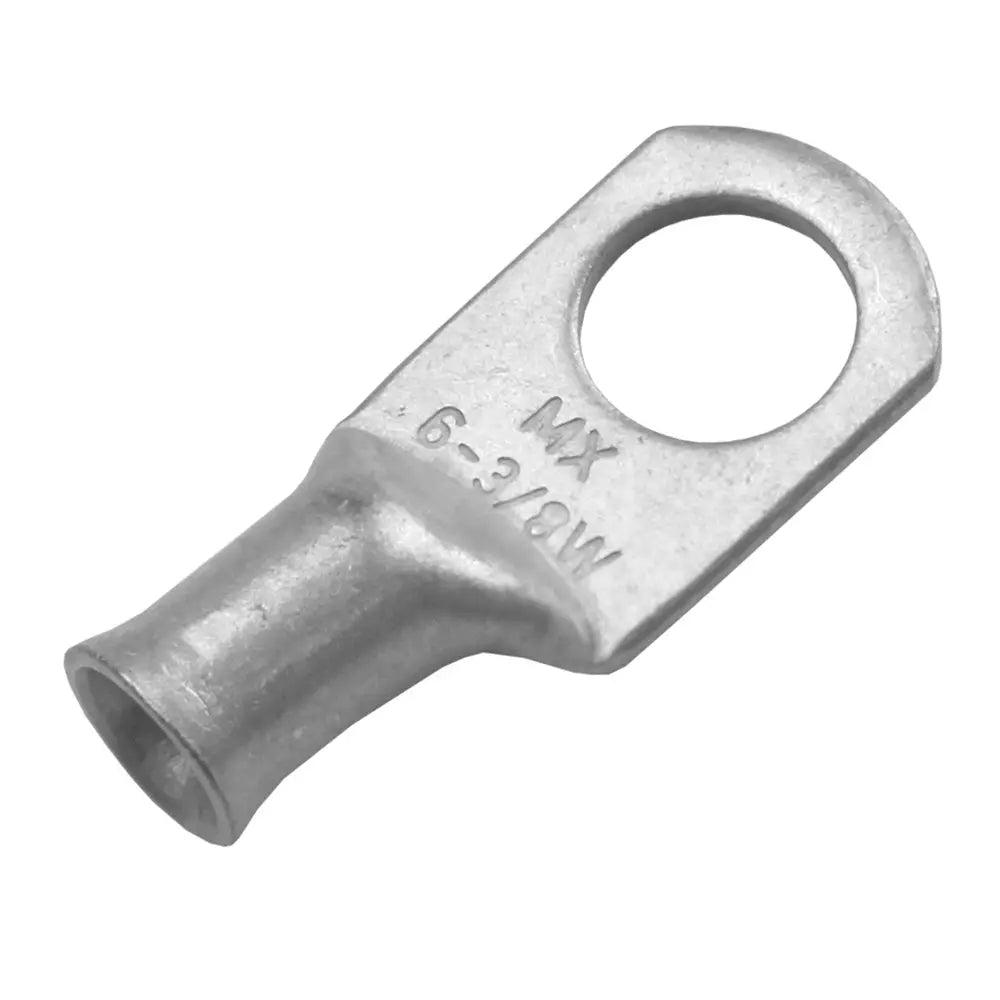

Pacer Tinned Lug 6 AWG with 3/8 Inch Stud Size - 10 Pack for Marine and Electrical Applications

Tinned Lug 6 AWG - 3/8 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 6
• Stud Size: 3/8
• Length: 1.406
• Width: 0.609
• Clearance: 0.406
• Package Size: 10

Secure and reliable electrical connections are critical in both marine and industrial environments. The Pacer Tinned Lug Part TAE6-38R-10 is designed to provide a durable, corrosion-resistant connection for 6 AWG stranded copper wires. Constructed from seamless tubes of high-purity copper and tin-plated for enhanced corrosion protection, this lug ensures high conductivity and longevity. Its no-exposed-seam design makes it particularly suitable for waterproof and marine applications, where exposure to moisture and harsh conditions can compromise less robust connectors. The lug features a larger contact pad area for improved electrical contact and a highly controlled flare to facilitate easy cable insertion. The tight transition from barrel to pad extends the usable length, allowing for secure crimping or soldering, and the stud size of 3/8 inch accommodates various terminal configurations.

Installation is straightforward: strip the wire to the proper length, slide the lug over the conductor ensuring insulation butts to the edge, then crimp or solder for a secure connection. For added durability, epoxy-lined heat shrink can be applied to create a waterproof seal, enveloping the conductor fully and safeguarding against environmental elements. These lugs are rated for 600 volts and conform to industry standards, including UL and CSA approvals, RoHS compliance, and exceeding SAE conductivity standards. They are compatible with epoxy heat shrink for enhanced environmental protection, making them ideal for challenging conditions where longevity and reliability are essential.

The Pacer Tinned Lug 6 AWG is available in a pack of ten, with the wire size and stud hole stamped directly on the pad for easy identification. Whether used in marine wiring, industrial electrical systems, or other high-demand applications, these lugs provide a dependable connection designed for maximum performance and corrosion resistance in demanding environments.

Features:

• Tin Plated for corrosion resistance

• No exposed seams enhances durability and waterproofing

• Rated for 600 volts, suitable for high-voltage applications

• Made from seamless tubes of 99.9% copper for superior conductivity

• Designed specifically for stranded copper wires

• Larger pad area for better electrical contact

• Cable size and stud hole stamped on the pad for easy identification

• Can be crimped or soldered depending on user preference

• Highly controlled flare for easy cable insertion

• Tight barrel to pad transition provides longer usable length
