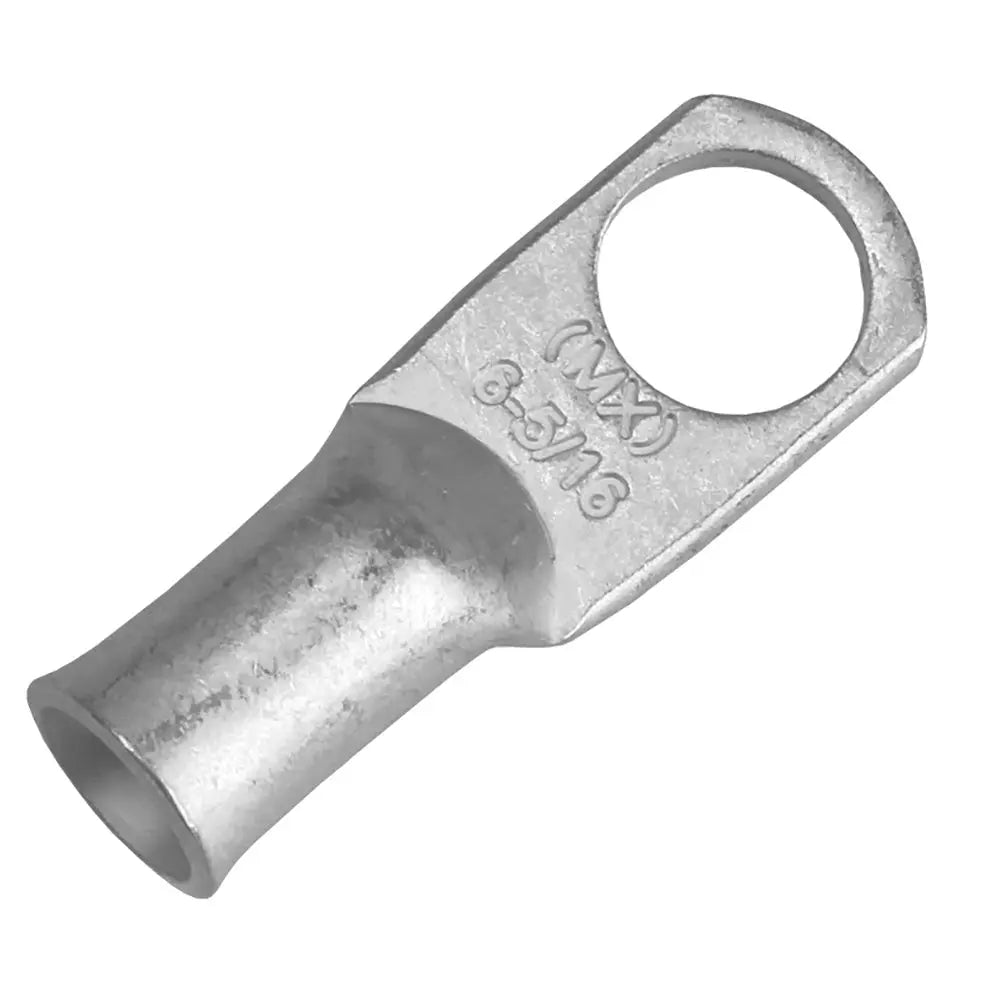

Pacer Tinned Lug 6 AWG with 5/16-Inch Stud Size - Pack of 10

Tinned Lug 6 AWG - 5/16 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 6
• Stud Size: 5/16
• Length: 1.266
• Width: 0.438
• Clearance: 0.344
• Package Size: 10

Ensure reliable and durable electrical connections with the Pacer Tinned Lug designed for 6 AWG stranded copper wires. Crafted from seamless tubes of high-conductivity 99.9% copper and tin-plated for corrosion resistance, these lugs are ideal for marine and outdoor applications where waterproofing and longevity are critical. The seamless construction eliminates exposed seams, providing a robust barrier against the elements, and the larger contact pad enhances electrical contact quality. This lug features a highly controlled flare to facilitate easy cable insertion and a tight transition from barrel to pad for extended usability. Perfect for crimping or soldering, it offers versatility to suit various installation needs, and the stamped cable size and stud hole on the pad aid in quick identification and proper assembly. The part is rated for 600 volts, conforming to industry standards, including UL and CSA approvals, RoHS compliance, and exceeding SAE conductivity standards. Use with epoxy-lined heat shrink for complete waterproof sealing, ensuring the connection remains protected from moisture and environmental exposure. The lug's compact design measures approximately 1.27 inches in length and 0.44 inches in width, with a stud size of 5/16 inches, making it suitable for a wide range of electrical systems. Whether for marine, automotive, or industrial applications, this pack of ten lugs provides a reliable solution for creating secure, waterproof electrical connections that stand the test of time.

Features:

• Tin Plated for corrosion resistance

• No exposed seams for enhanced durability

• Rated for 600V electrical systems

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed specifically for stranded copper wires

• Larger pad area for improved contact

• Cable size and stud hole stamped directly on the pad

• Compatible with crimping or soldering techniques

• Highly controlled flare to facilitate cable insertion

• Tight barrel to pad transition for longer usable barrel length
