SKU:104977

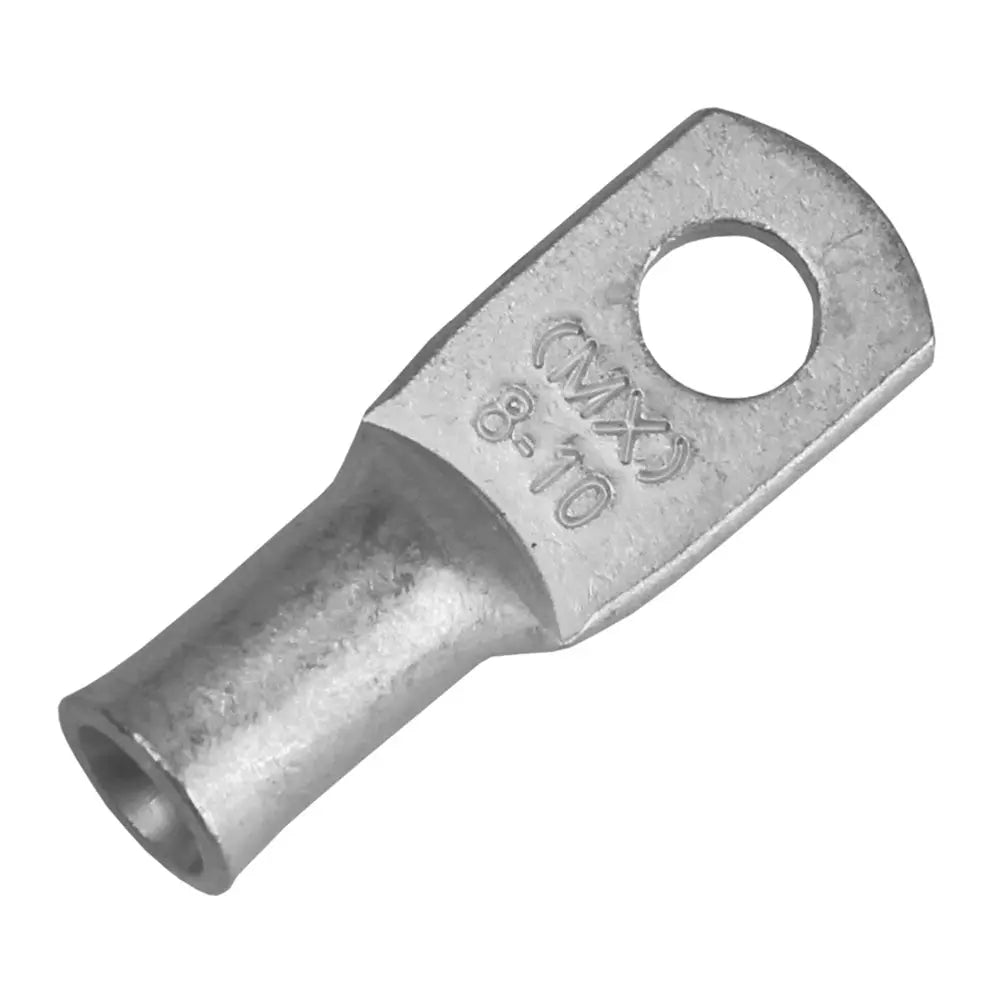

Tinned Lug 8 AWG - #10 Stud Size - 10 Pack
Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.
Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.
Features:
Compliances:
Specifications:
The Pacer Tinned Lug Part TAE8-10R-10 is designed to provide secure and durable electrical connections, especially suited for marine environments where waterproofing and corrosion resistance are critical. Made from seamless tubes of 99.9% copper, these lugs ensure high conductivity and reliable performance in demanding conditions.
Each lug features a tin-plated finish with no exposed seams, which enhances durability and prevents corrosion. The larger pad area improves contact points, ensuring a stable connection. These lugs are rated for 600 volts and can be used with stranded copper wires, making them versatile for various electrical installations. The design includes a highly controlled flare that facilitates easy cable insertion, while the tight transition from barrel to pad provides a longer usable length, ensuring a strong connection over time.
Installation is straightforward: strip the wire to the proper length, slide the lug over the conductor, crimp with the appropriate tool, and optionally add epoxy-lined heat shrink for additional sealing and protection. The lug is stamped with cable size and stud hole on the pad for quick identification. Suitable for use with epoxy heat shrink, these lugs fully envelop the conductor, leaving no exposed metal to the elements, which is ideal for marine and outdoor applications.
Compliant with industry standards including ASTM-B-152 copper rated at 100% conductivity, UL, CSA approvals, and RoHS compliance, the Pacer Tinned Lug ensures safety and performance. This pack contains ten lugs, each measuring approximately 1.19 inches in length and 0.44 inches wide, with a #10 stud size opening. Whether crimped or soldered, these lugs provide a reliable connection for your electrical needs.
Features:
