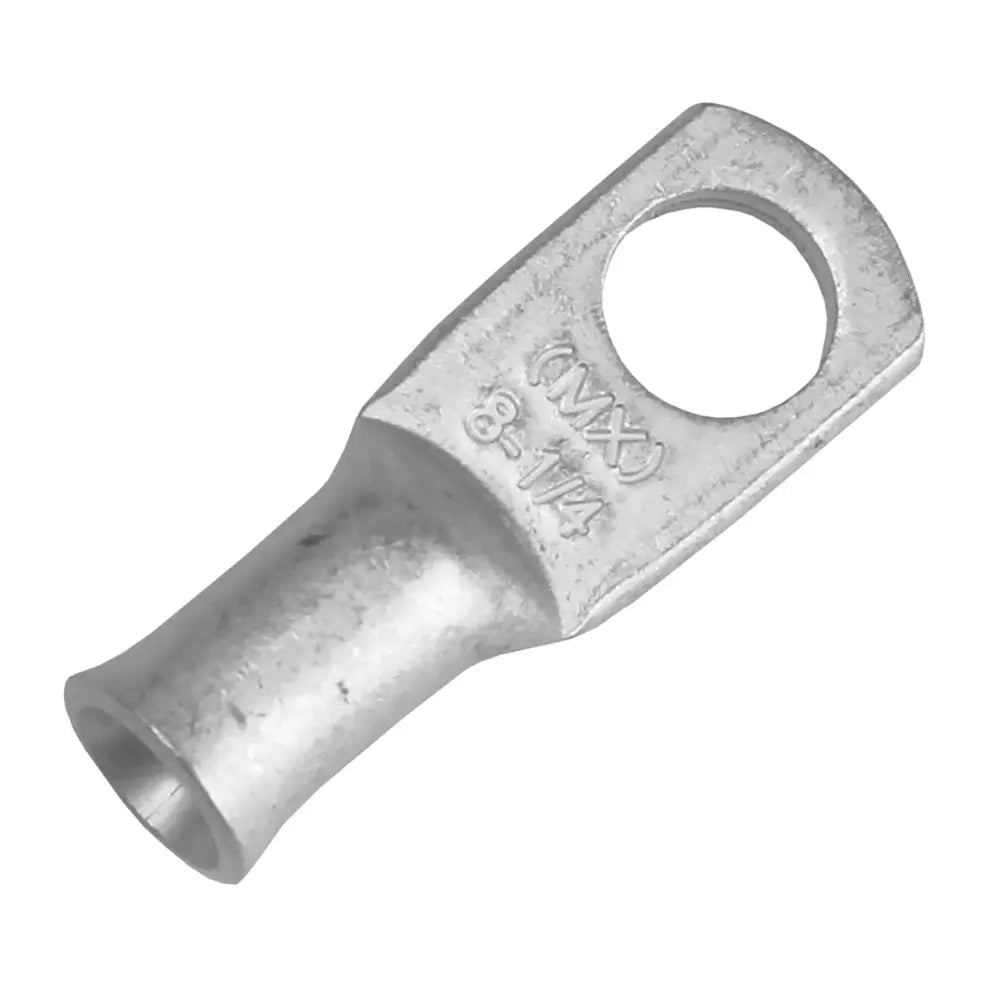

Pacer Tinned Lug 8 AWG with 1/4 inch Stud - 10 Pack for Marine and Electrical Applications

Tinned Lug 8 AWG - 1/4 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 8
• Stud Size: 1/4
• Length: 1.187
• Width: 0.438
• Clearance: 0.344
• Package Size: 10

Ensure reliable and durable electrical connections with the Pacer Tinned Lug 8 AWG, featuring a 1/4 inch stud size and sold in a convenient 10-pack. Crafted from seamless tubes of 99.9% copper, these lugs provide high conductivity and a secure connection. The tin-plated finish prevents corrosion and enhances longevity, making them ideal for marine environments and outdoor applications where waterproofing is essential. The absence of exposed seams contributes to durability and resistance against environmental elements, allowing for dependable performance over time. These closed-end lugs are designed for stranded copper wires, offering a larger pad area for better contact and efficient current transfer. The tight transition from the barrel to the pad ensures longer usable length, simplifying installations and reducing the risk of failure. The stamped cable size and stud hole on the lug facilitate easy identification and correct assembly, while the highly controlled flare allows for easy cable insertion. Both crimping and soldering methods are supported, providing versatility for various installation preferences. Rated for 600 volts, these lugs meet or exceed industry standards including UL, CSA, and RoHS compliance, ensuring safety and environmental responsibility. Whether used with epoxy heat shrink for waterproof connections or standard crimping, the Pacer lug delivers dependable performance in demanding environments. Perfect for electrical professionals and DIY enthusiasts, these lugs simplify wiring tasks while ensuring long-lasting, corrosion-resistant connections.

Features:

• Tin plated for corrosion resistance

• No exposed seams for increased durability

• Rated for 600V applications

• Made from seamless copper tubing for high conductivity

• Designed for stranded copper wires

• Larger pad area for enhanced contact

• Cable size and stud hole stamped on the pad for easy identification

• Suitable for crimping or soldering methods

• Highly controlled flare for easy cable insertion

• Tight barrel-to-pad transition offers longer usable length
