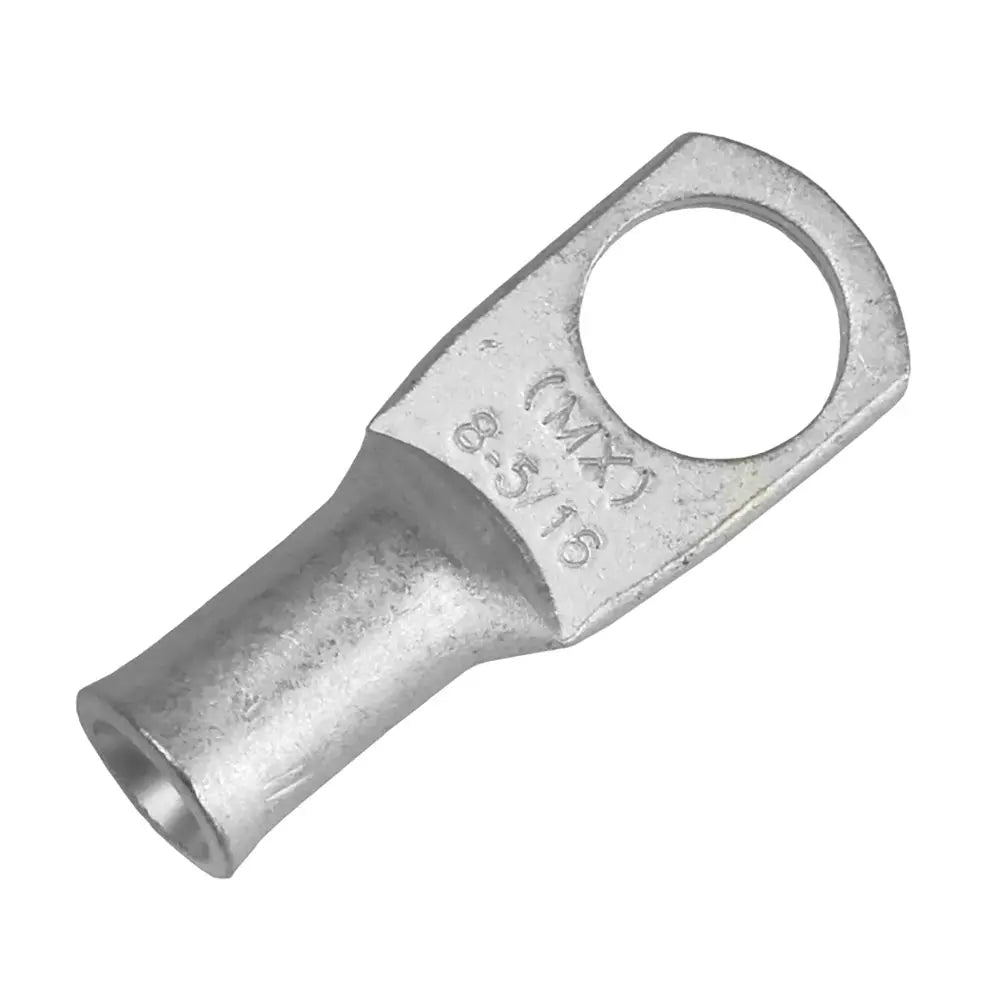

Pacer Tinned Lug 8 AWG with 5/16 inch Stud Size - 10 Pack for Reliable Electrical Connections

Tinned Lug 8 AWG - 5/16 Stud Size - 10 Pack

Creating a strong connection is essential to every electrical system. By using closed-end lugs, users get not only durability but longevity as well. Pacers closed-end lugs are tin-plated and have no exposed seams. This means that they are ideal for marine applications. What makes them ideal is the fact that they can be used to create waterproof connections. When used with epoxy heat shrink, the closed-end lug will fully envelop the conductor. This leaves nothing exposed to the elements. To use, simply strip your wire or cable to the proper length. Once this is complete, slide the lug over the exposed wire, making sure the insulation butts up to the edge of the lug.

Now, crimp the lug using the correct tool, and youre done. Add epoxy-lined heat shrink for added durability. Pacers closed-end lugs are available in 8 AWG to 4/0 AWG wire sizes. The available stud sizes include #10, 1/4, 5/16, 3/8, and 1/2. Selecting the correct closed-end lug isnt an easy task. Contact a Pacer expert today with any questions that you may have.

Features:

• Tin Plated
• No exposed seams
• Rated for 600V
• Made from seamless tubes of 99.9% copper for higher conductivity
• Designed for stranded copper wires
• Larger pad area for better contact
• Cable size and stud hole stamped on pad
• Can be crimped or soldered
• Highly controlled flare to allow easy cable insertion
• Tight barrel to pad transition provides longer usable barrel length

Compliances:

• E.T.P. (Electrolytic Tough Pitch) CDA-110
• ASTM-B-152 copper rated at 100% conductivity
• UL CSA Approved
• RoHS Compliant
• Exceeds SAE Conductivity STD J163 J1811

Specifications:

• Wire AWG: 8
• Stud Size: 5/16
• Length: 1.187
• Width: 0.438
• Clearance: 0.344
• Package Size: 10

Ensure durable and corrosion-resistant electrical connections with the Pacer Tinned Lug 8 AWG, part number TAE8-56R-10. Crafted from seamless tubes of high-purity copper, this lug provides excellent conductivity and long-lasting performance. Its tin plating offers superior resistance to corrosion, making it ideal for marine and outdoor applications where exposure to moisture and elements is common. The lug features no exposed seams, which enhances its waterproof qualities and reduces potential points of failure. Designed for stranded copper wires, it provides a larger pad area for improved contact and secure crimping or soldering options. The highly controlled flare allows for easy cable insertion, reducing installation time and ensuring a tight, reliable fit. The transition from barrel to pad is engineered for durability, offering a longer usable barrel length for a robust connection. The lug is stamped with cable size and stud hole, simplifying proper selection and installation. This component is rated for 600 volts, adheres to industry standards including ASTM-B-152 and UL CSA approval, and complies with RoHS requirements, ensuring safety and environmental compliance. The package includes ten lugs, each measuring approximately 1.19 inches in length and 0.44 inches in width, suitable for 8 AWG wire and 5/16 inch stud connections. Proper installation involves stripping the wire to the appropriate length, sliding the lug over the conductor, and crimping or soldering it securely. For enhanced durability and waterproofing, epoxy-lined heat shrink can be added after crimping. Whether for marine, automotive, or industrial applications, these closed-end lugs provide a reliable, corrosion-resistant, and easy-to-install solution for secure electrical terminations.

Features:

• Tin plated for corrosion resistance

• No exposed seams enhances waterproof capabilities

• Rated for 600 volts for versatile electrical applications

• Made from seamless tubes of 99.9% copper for high conductivity

• Designed specifically for stranded copper wires

• Larger pad area for better electrical contact

• Cable size and stud hole stamped on the pad for easy identification

• Can be crimped or soldered for secure connection

• Highly controlled flare facilitates easy cable insertion

• Tight barrel to pad transition provides longer usable barrel length
