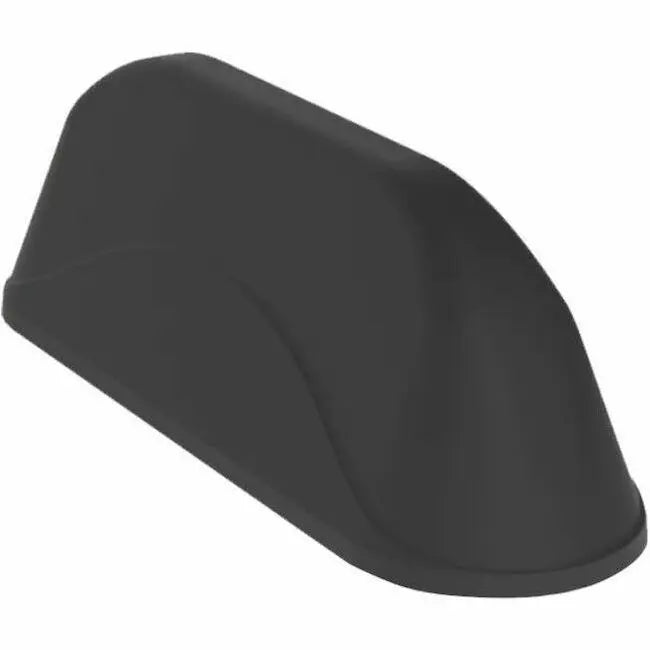

Panorama Antennas L[G]AM-7-27-[X]24-58 Multi-Burpose LTE and WiFi Antenna

The Panorama Antennas L[G]AM-7-27-[X]24-58 is a versatile, high-performance antenna designed for demanding M2M and IoT applications such as vending machines and payment terminals. Its integrated multiple antenna functions deliver reliable connectivity across a broad spectrum of cellular and WiFi frequencies, making it an ideal choice for environments requiring robust and efficient wireless communication. The antenna features a 22 MiMo function supporting 2G, 3G, 4G, and 5G LTE bands from 698 MHz to 3800 MHz, ensuring extensive cellular coverage. Additionally, it includes a dual-band WiFi component operating at 2.4 GHz and 5 GHz, providing flexible wireless networking options. An optional active GNSS module with a 26 dB LNA enhances positioning accuracy for GPS, GLONASS, Galileo, and BeiDou signals, ensuring high-quality location data in challenging environments. The antenna maintains high performance even when mounted on non-metallic surfaces, thanks to its thoughtful design and weatherproof IP66-rated construction, suitable for outdoor or harsh conditions. Its compact, low-profile panel mount design with a single hole simplifies installation and minimizes space requirements, making it suitable for a wide range of industrial and commercial applications. The antenna's distinctive, weatherproof design ensures durability and reliable operation in various environments, while its compact form factor offers flexibility for integration into different systems. An optional GNSS version is available to meet specific location tracking needs, enhancing the device’s versatility. Whether deployed in payment terminals, vending machines, or other M2M devices, the L[G]AM-7-27-[X]24-58 delivers exceptional performance, durability, and ease of installation, making it an essential component for reliable wireless communication infrastructure.

Features:

• Single hole mount with a small footprint

• Covers all 2G/3G/4G/5G LTE cellular bands from 698 MHz to 3800 MHz

• Dual-band 2.4 GHz and 5 GHz WiFi operation

• Weatherproof IP66 Certified design suitable for outdoor use

• Optional GNSS version with high-gain LNA for precise positioning

• High performance in a compact and distinctive design

• Low profile panel mount form factor for easy installation

• Supports 1x or 22 MiMo dual-band WiFi configurations
