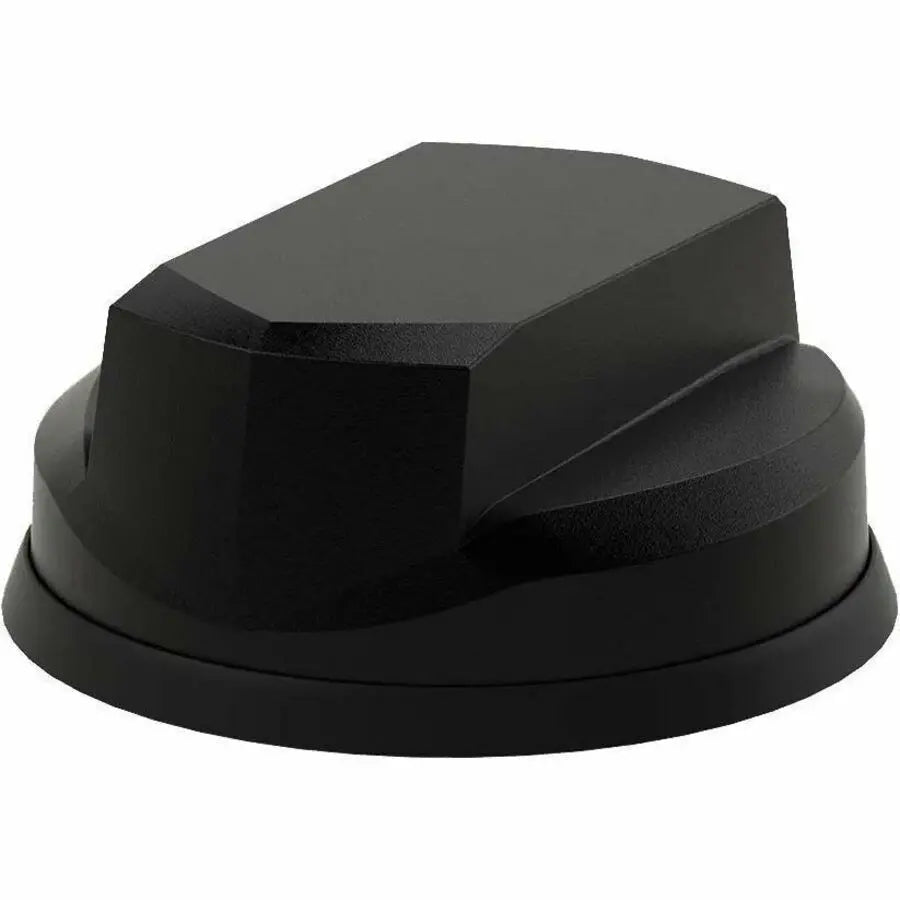

Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] Panel Mount 5G and GPS Antenna

Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] Antenna

The Panorama Antennas L[G]M[X]M[X]-6-60[-24-58] is a versatile, low-profile panel-mounted antenna designed to deliver exceptional 22 4G/5G MiMo performance across a wide frequency range of 617-960 MHz and 1427-6000 MHz. Its robust construction and compact form factor make it suitable for diverse environments, including telecommunications, IoT, and network infrastructure applications. The antenna features a ground plane independent design, allowing flexible installation on both conductive and non-conductive panels, simplifying deployment in various settings. Supplied with integrated flame-retardant RG174 cables compliant with UN ECE R118.03 and EN45545-2 standards, and housed within a halogen-free radome, it ensures safety and durability in demanding conditions.

The L[G]M[X]M[X]-6-60[-24-58] includes an advanced GPS/GNSS module supporting GPS, Glonass, Galileo, and Compass systems with a 26dB LNA gain, providing reliable positioning capabilities. The integrated GPS features sophisticated filtering to minimize potential LTE B13/14 in-band interference, enhancing signal clarity and accuracy. This makes the antenna ideal for applications requiring precise location tracking and timing synchronization. Additionally, the antenna's design accommodates up to nine functions within a sleek low-profile housing, making it a comprehensive solution for combined communication and navigation needs. The antenna is available with a black or white radome, both meeting IK10 vandal resistance standards and IP69K ingress protection, ensuring long-term performance in harsh environments.

Designed by Panorama Antennas Ltd, the L[G]M[X]M[X]-6-60[-24-58] stands out as the “Great White” 5G version, offering high performance and versatility in a compact package. Its panel mount form factor enables easy installation on various surfaces, whether for rooftop, wall, or equipment cabinet mounting. This antenna's multi-functionality and durability make it suitable for a wide array of applications including 5G networks, IoT deployments, and critical communications infrastructure. With its comprehensive feature set and rugged construction, the Panorama L[G]M[X]M[X]-6-60[-24-58] antenna provides a reliable, ground-plane-independent solution capable of supporting evolving wireless technology demands.

Features:

• The "Great White" 5G version

• Up to 9 functions inside a low profile housing

• Ground plane independent antenna solution
