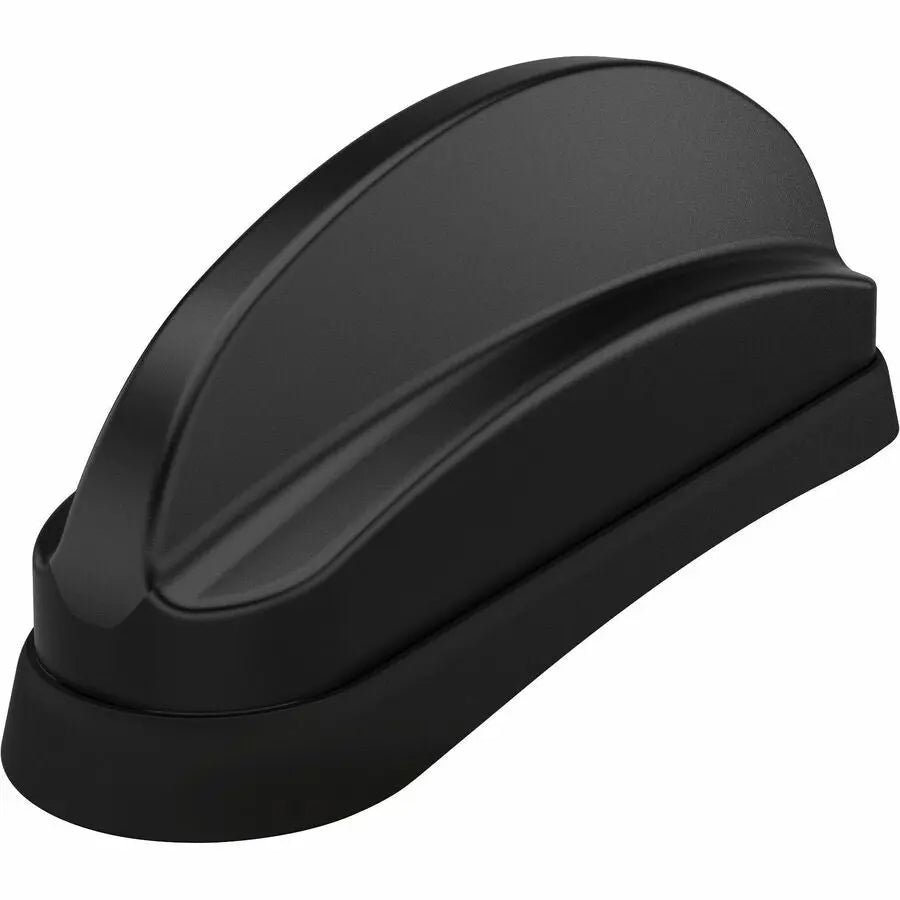

Panorama Antennas LP[G]AM[F]-6-60 Multi-Band 4G/5G LTE and WiFi Antenna with GPS Option

The Panorama Antennas LP[G]AM[F]-6-60 is a versatile, low-profile antenna designed to support 4G and 5G cellular networks across a wide frequency range, including 617-960 MHz and 1427-6000 MHz. Its innovative design integrates up to seven antennas within a single housing, providing efficient multi-band operation suitable for various IoT applications such as vending machines, kiosks, display screens, and payment terminals. This antenna features a 22 MiMo configuration for enhanced data throughput and signal reliability, making it an ideal choice for critical connectivity needs. The antenna's compact form factor allows for easy installation on mast, panel, or wall mounts using a single hole, complemented by integrated flexible FR RG174 cables for simplified setup. It is constructed with a durable black finish and meets IP69K certification for robust performance in challenging environments, ensuring resistance to dust and water ingress. An optional GPS/GLONASS/Galileo/BeiDou antenna module can be included, equipped with a 26dB gain Low Noise Amplifier (LNA) and advanced filtering to optimize satellite signal reception, especially in LTE Band 13/14 operations. The LP[G]AM[F]-6-60 is engineered to perform on conductive metal panels but can also be used on non-conductive surfaces with some impact on performance at lower frequencies. This antenna provides comprehensive connectivity solutions with its wideband coverage from 600 MHz to 6 GHz, supporting LTE, WiFi 6E, and dual-band WiFi configurations up to 44 MiMo channels for ultra-fast wireless connectivity. It is an economical, robust, and easy-to-install solution tailored for modern IoT deployments requiring reliable multi-band cellular and WiFi performance combined with GPS capabilities.

Features:

• 22 MiMo 4G/5G LTE Antenna for high data throughput and reliable cellular connectivity

• Low profile, compact design suitable for diverse installation environments

• Up to 7 antennas integrated within a single housing for multi-band operation

• Wideband coverage spanning 600-6000MHz for cellular and WiFi frequencies

• Optional GPS/GNSS module with 26dB gain Low Noise Amplifier for enhanced satellite signal reception

• Advanced filtering tailored for LTE Band 13/14 operation

• Durable construction with IP69K certification for resistance to dust and water ingress
