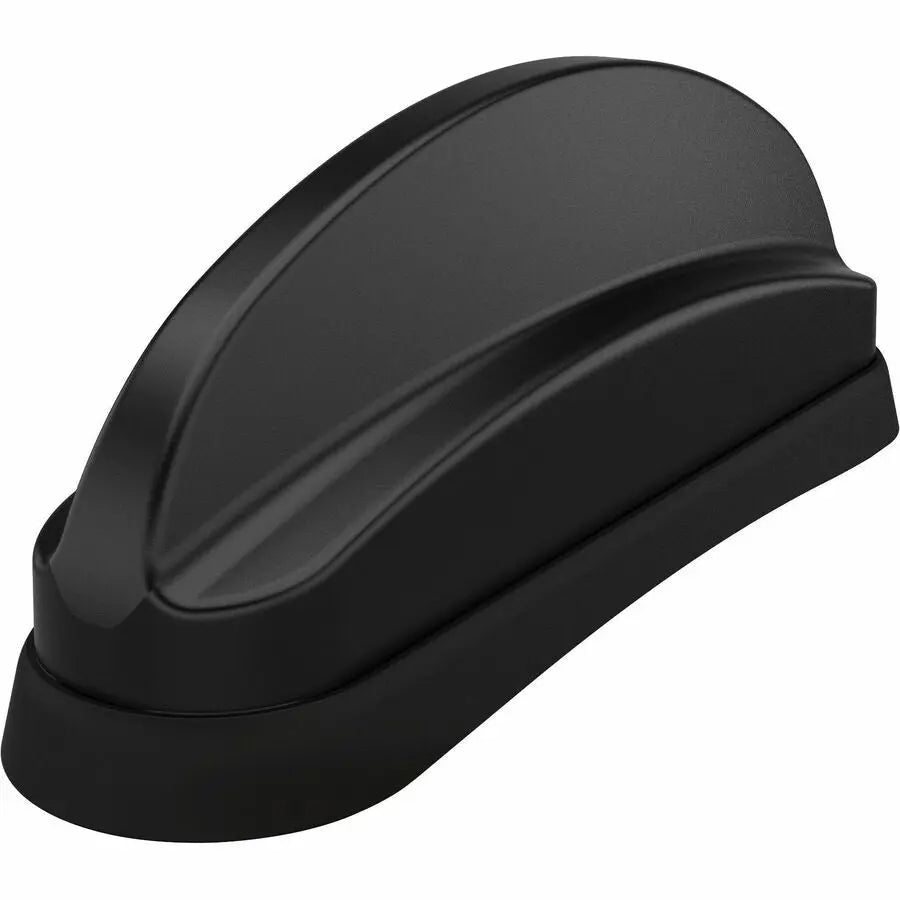

Panorama Antennas LP[G]AM[F]-6-60 Multi-Band 4G/5G LTE and WiFi Antenna with Optional GPS/GLONASS/Galileo/BeiDou Support

The Panorama Antennas LP[G]AM[F]-6-60 is a versatile, low-profile antenna designed to deliver high performance across a broad frequency range, making it ideal for modern IoT and wireless applications. This multi-band antenna supports 22 MiMo streams for 4G/5G LTE communications spanning from 617 MHz to 6 GHz, ensuring robust connectivity in diverse environments. Its compact form factor and integrated flexible FR RG174 cables allow for straightforward installation on various surfaces, including metal panels and non-conductive materials, with minimal impact on performance in the lower frequency bands. The antenna's robust construction is rated IP69K, ensuring durability in demanding outdoor and industrial settings. Additionally, an optional active GPS antenna with a 26dB LNA and advanced filtering can be included for precise geolocation capabilities, compatible with GPS, GLONASS, Galileo, and BeiDou systems. The LP[G]AM[F]-6-60 supports up to 44 WiFi streams across dual bands and WiFi 6E, facilitating high-speed wireless data transmission for applications like vending machines, kiosks, digital signage, and payment terminals. Its design incorporates up to seven antennas within a single housing, providing a cost-effective, space-saving solution that simplifies installation and reduces clutter. Whether used on a mast, panel, or wall mount, this antenna offers a reliable and efficient solution for expanding wireless connectivity in diverse IoT deployments and enterprise applications.

Features:

• 22 MiMo 4G/5G LTE antenna supporting 617-960 MHz and 1427-6000 MHz frequency ranges

• Low profile, multi-antenna design for space-efficient deployment

• Up to 7 antennas integrated in a single housing for comprehensive coverage

• Wideband operation covering 600 to 6000 MHz for versatile use cases

• Optional GPS/GLONASS/Galileo/BeiDou antenna with 26dB LNA and advanced filtering

• Supports up to 44 streams of dual-band WiFi, including WiFi 6E

• Constructed to meet IP69K certification for durability in harsh environments

• Designed for use on metal or non-conductive panels with minimal performance loss in lower bands

• Supplied with flexible FR RG174 cables for simplified installation
