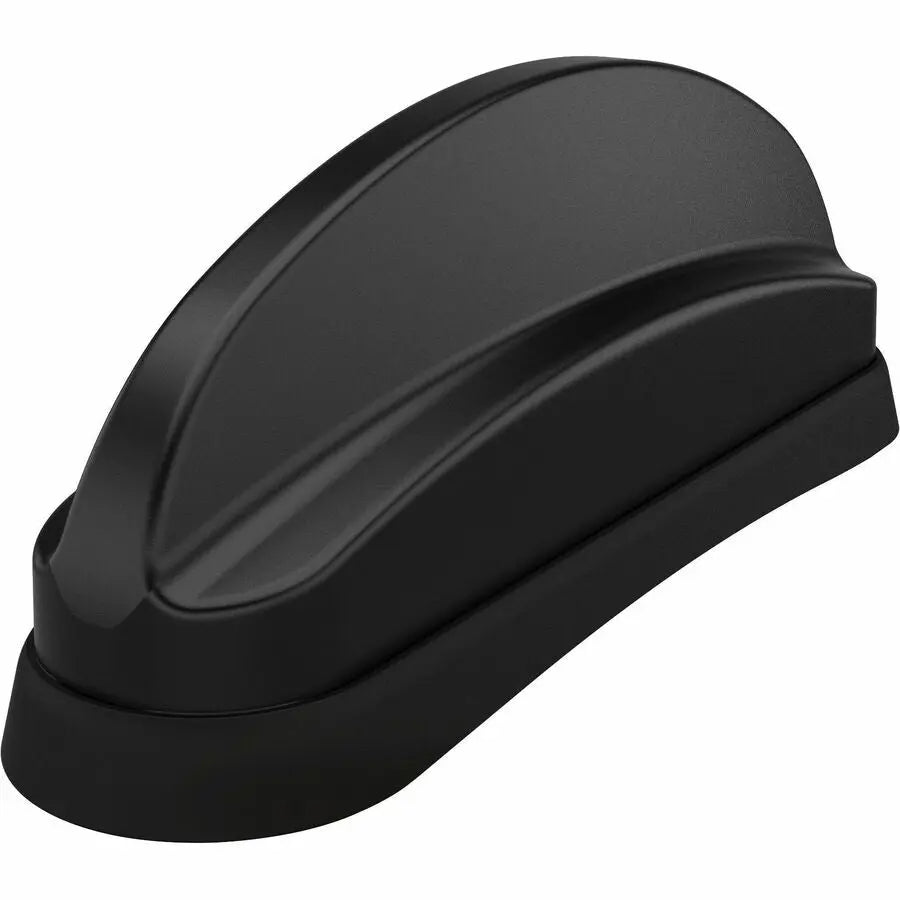

Panorama Antennas LP[G]AM[F]-6-60 Multi-Band 4G/5G LTE & WiFi Antenna with GPS Option

The Panorama Antennas LP[G]AM[F]-6-60 is a versatile, low-profile antenna designed to support a wide range of cellular and WiFi applications. It features a 22 MiMo antenna for 4G and 5G networks operating across 617-960MHz and 1427-6000MHz frequency bands, ensuring reliable high-speed connectivity for IoT devices, vending machines, kiosks, display screens, and payment terminals. The antenna's compact design allows it to be mounted easily on panels or walls, with a single hole installation, making it ideal for space-constrained environments.

In addition to cellular capabilities, the LP[G]AM[F]-6-60 offers an optional active GPS/GLONASS/Galileo/BeiDou antenna with a 26dB gain LNA and advanced filtering tailored for LTE Band 13/14 operations. This enhancement supports precise location tracking and navigation functionalities, crucial for fleet management, asset tracking, or location-aware services. Its wideband frequency coverage from 600MHz to 6000MHz consolidates multiple antennas into one housing, reducing complexity and installation costs while providing up to 7 antennas in a single unit.

The antenna's construction meets IP69K certification, ensuring it withstands harsh environmental conditions such as heavy rain, dust, and high-pressure cleaning. Its robust build and integrated flexible FR RG174 cables simplify the installation process, requiring only a single mounting hole. Whether used on conductive metal panels or non-conductive surfaces (with some performance compromise in the 600MHz band), this antenna delivers consistent, high-performance connectivity. The LP[G]AM[F]-6-60 is a cost-effective, reliable solution for modern IoT and cellular network applications.

Features:

• 22 MiMo 4G/5G LTE Antenna for high-speed cellular connectivity

• Low profile, compact design suitable for panel or wall mounting

• Supports up to 7 antennas within a single housing for multi-band operation

• Wide frequency coverage from 600MHz to 6000MHz for cellular and WiFi signals

• Optional GPS/GNSS antenna with 26dB LNA and advanced filtering for precise navigation

• Meets IP69K certification for durability in harsh environments
