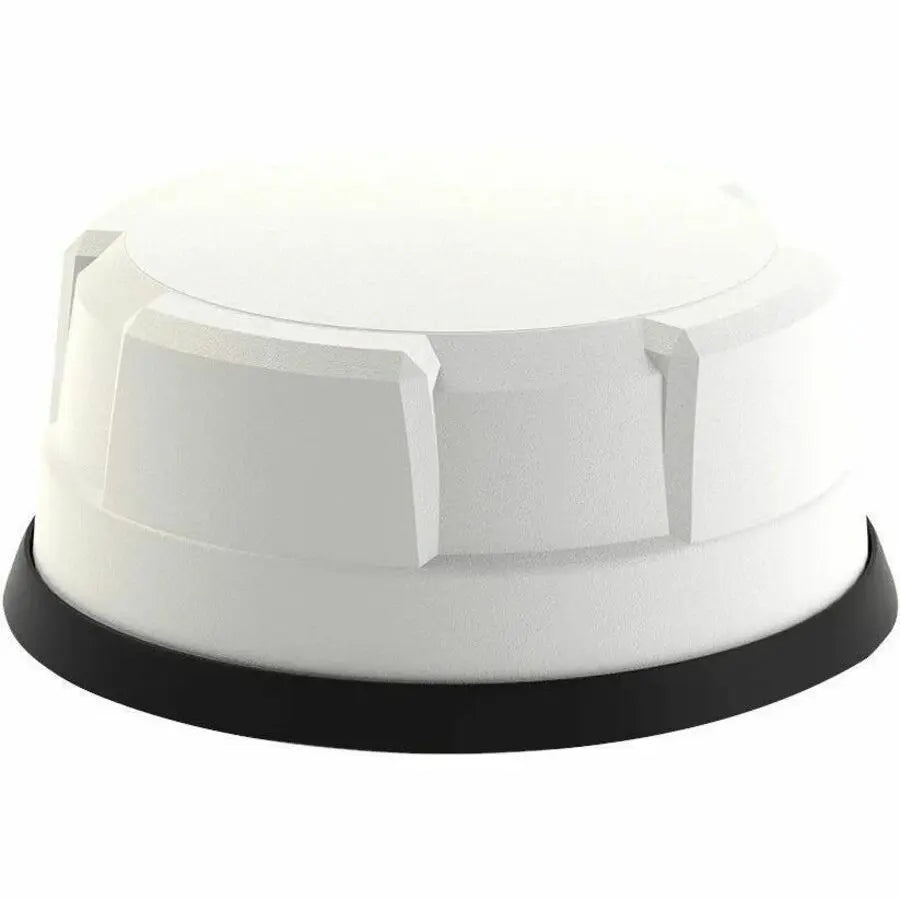

Panorama Antennas MAKO LGM Antenna with 4x4 4G/5G MiMo and GPS Support

The Panorama Antennas MAKO LGM Antenna (Part Number: LGMDM46-60-24-58) offers a compact, low profile panel mount solution designed for versatile wireless connectivity. Engineered to operate across multiple frequency bands, including 617-960 MHz, 1710-6000 MHz, and 4900-960 MHz, this antenna ensures reliable 4x4 4G/5G MiMo performance. Its broad frequency coverage makes it suitable for a wide range of applications, from cellular networks to WiFi and GPS systems. The integrated design simplifies installation, whether on conductive or non-conductive panels, thanks to its panel mounting capability and a 7.09-inch diameter footprint. The antenna’s robust construction, with an IP69K ingress protection rating and IK10 vandal resistance, guarantees durability in demanding environments, while its halogen-free, flame-retardant radome enhances safety and compliance.

This model features an advanced GPS/GNSS module that supports multiple satellite systems including GPS, Glonass, Galileo, QZSS, and Compass, with a 26dB Low Noise Amplifier (LNA) for improved signal reception. The antenna’s 360-degree horizontal pattern provides omnidirectional coverage, easing installation and optimizing signal strength in various orientations. Its high gain and multi-band capabilities make it ideal for integrating GPS connectivity with cellular and WiFi networks, ensuring seamless communication across multiple platforms. Whether used in telecommunications, transportation, or other outdoor environments, the MAKO LGM Antenna delivers dependable performance, enhanced coverage, and simplified setup for demanding applications.

Features:

• Delivers enhanced performance at 617 MHz to 960 MHz, 1710 MHz to 3800 MHz, 4900 MHz to 960 MHz, 4.9 GHz to 7.2 GHz, and 1562 MHz to 1612 MHz frequency bands

• Ideal for providing reliable GPS connectivity in various applications

• Operates at 26 dB gain for improved signal reception

• s a 360-degree horizontal radiation pattern for easy installation and optimal coverage

• Panel mount design allows flexible installation on diverse surfaces
