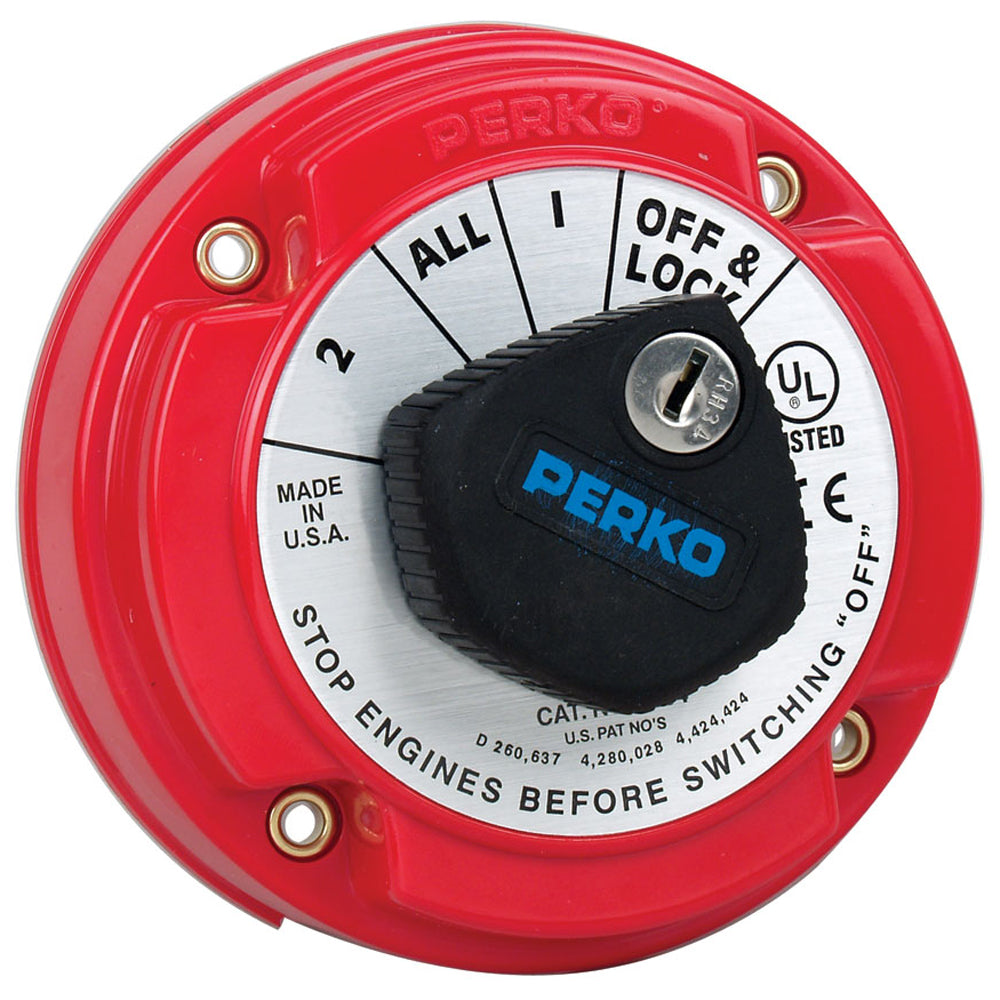

Perko 8504DP Medium Duty Battery Selector Switch with Alternator Field Disconnect and Key Lock

Medium Duty Battery Selector Switches

• Diameter: 5-1/4
• Depth: 2-5/8
• Polycarbonate Body with Brass Terminals
• Ignition Protected
• For use with 6 to 32 Volt Marine Electrical Systems
• Capacity - 250 AMPS Continuous, 360 AMPS 5 Mins. Intermittent
• Terminal Stud Size: 5/16
• When used with Non-Unitized Alternators, these models will interrupt the field current (reducing the possibility of damage) if turned OFF with the engine running.

The Perko 8504DP is a reliable medium-duty battery selector switch designed for marine and commercial applications. Featuring a durable polycarbonate body with brass terminals, this switch offers excellent corrosion resistance and mechanical stability. Its compact size, with a diameter of approximately 5-1/4 inches and a depth of 2-5/8 inches, makes it suitable for tight engine compartments and panel installations. The switch's key lock mechanism ensures secure operation, preventing accidental switching and ensuring the safety of your electrical system. Built to operate within 6 to 32 volts, it supports a continuous current capacity of 250 amps and can handle up to 360 amps for 5 minutes intermittently, making it ideal for demanding marine environments or heavy-duty vehicle applications. The terminal stud size of 5/16 inches ensures compatibility with standard wiring setups, while its ignition-protected design enhances safety during engine operation. This switch is particularly beneficial when used with non-unitized alternators, as it interrupts the field current when turned off with the engine running, reducing the risk of alternator damage or electrical faults. Its straightforward installation and robust construction make the Perko 8504DP a trusted choice for managing multiple battery sources efficiently and securely in your electrical system.

Features:

• Diameter: approximately 5-1/4 inches

• Depth: approximately 2-5/8 inches

• Polycarbonate body with brass terminals for durability and corrosion resistance

• Ignition protected design for safe operation in marine environments

• Suitable for 6 to 32 Volt electrical systems

• Continuous capacity of 250 amps, 360 amps for 5 minutes intermittently

• Terminal stud size: 5/16 inches

• Includes key lock mechanism for secure switching

• Interrupts field current when used with non-unitized alternators, reducing damage risk
