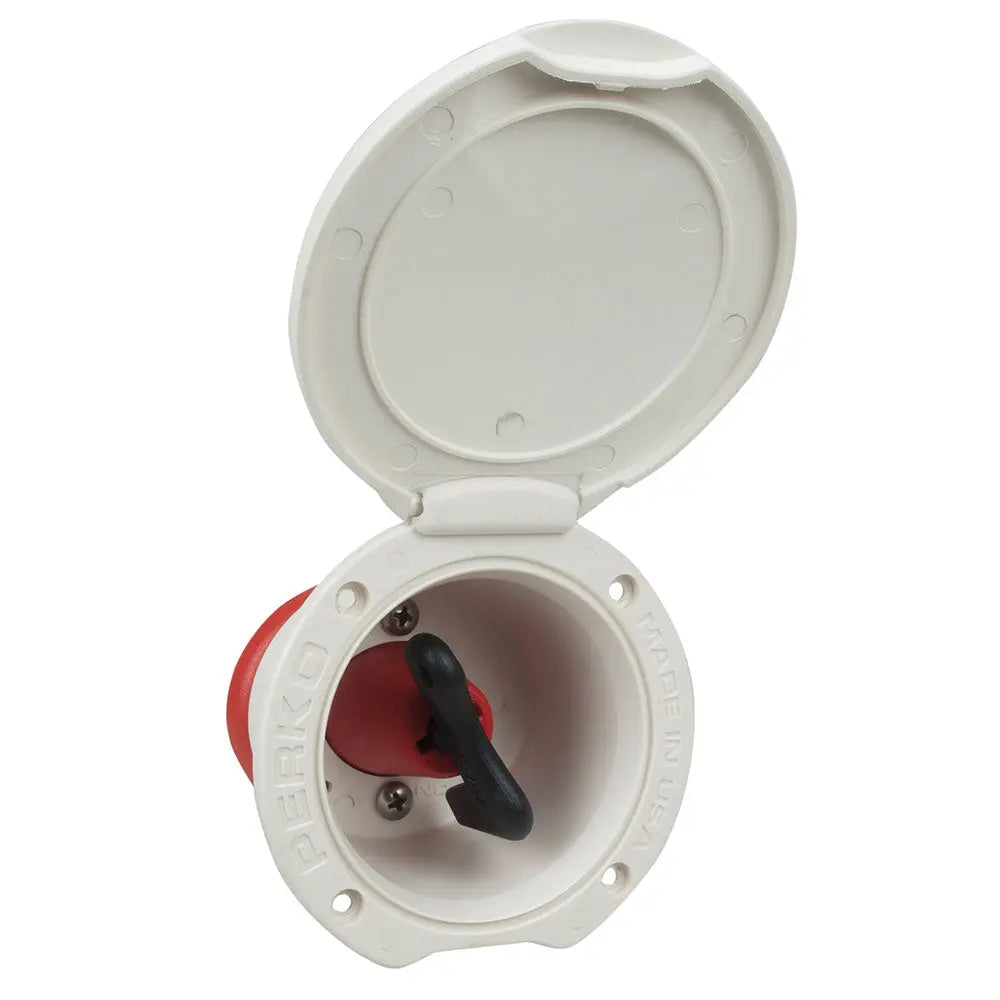

Perko 9621DPC Single Battery Disconnect Switch with Cup Mount - 140 Amp Marine Electrical System

Single Battery Disconnect Switch - Cup Mount

The Perko Single Battery Disconnect Switch permits the battery to be shut off from the electrical system when the vessel is not in use. They can also serve as an emergency main disconnect switch in the event of an electrical problem.

The Single Battery Disconnect Switch is Ignition Protected.

Materials Finish

• Red polycarbonate polymer body
• Black polymer actuator key
• Nickel plated terminals

Features

• Small compact size
• Unique oval shape mounts in a round hole
• Removable actuator key adds additional security

Technical Information

• Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
• Cup Mount Installation Hole Size: 3"
• For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
• Ignition Protected
• Face Dimensions: 3" x 2-1/2

The Perko 9621DPC Single Battery Disconnect Switch is designed for easy and reliable control of your vessel's electrical system. Its compact, oval-shaped design allows for seamless installation in tight spaces, enabling you to disconnect the battery quickly when the boat is not in use, thereby preventing battery drain and enhancing safety. The switch’s durable red polycarbonate body and nickel-plated terminals ensure long-lasting performance even in harsh marine environments. Its removable actuator key adds an extra layer of security, preventing accidental disconnection and unauthorized access to the battery system. This switch is ideal for marine applications, compatible with alternators and generators operating within 6-50 V.D.C., making it a versatile choice for a wide range of vessels.

Features:

• Compact oval shape designed for easy installation in limited space

• Cup mount installation with a 3-inch hole for secure mounting

• Removable actuator key for added security

• Made with durable red polycarbonate polymer body and nickel-plated terminals

• Ignition protected for safety in marine environments

• Rated for 140 continuous amps, with 200 amps for 5 minutes and 250 amps for 30 seconds start

• Suitable for use with marine alternators and generators within 6-50 V.D.C.
