SKU:113649

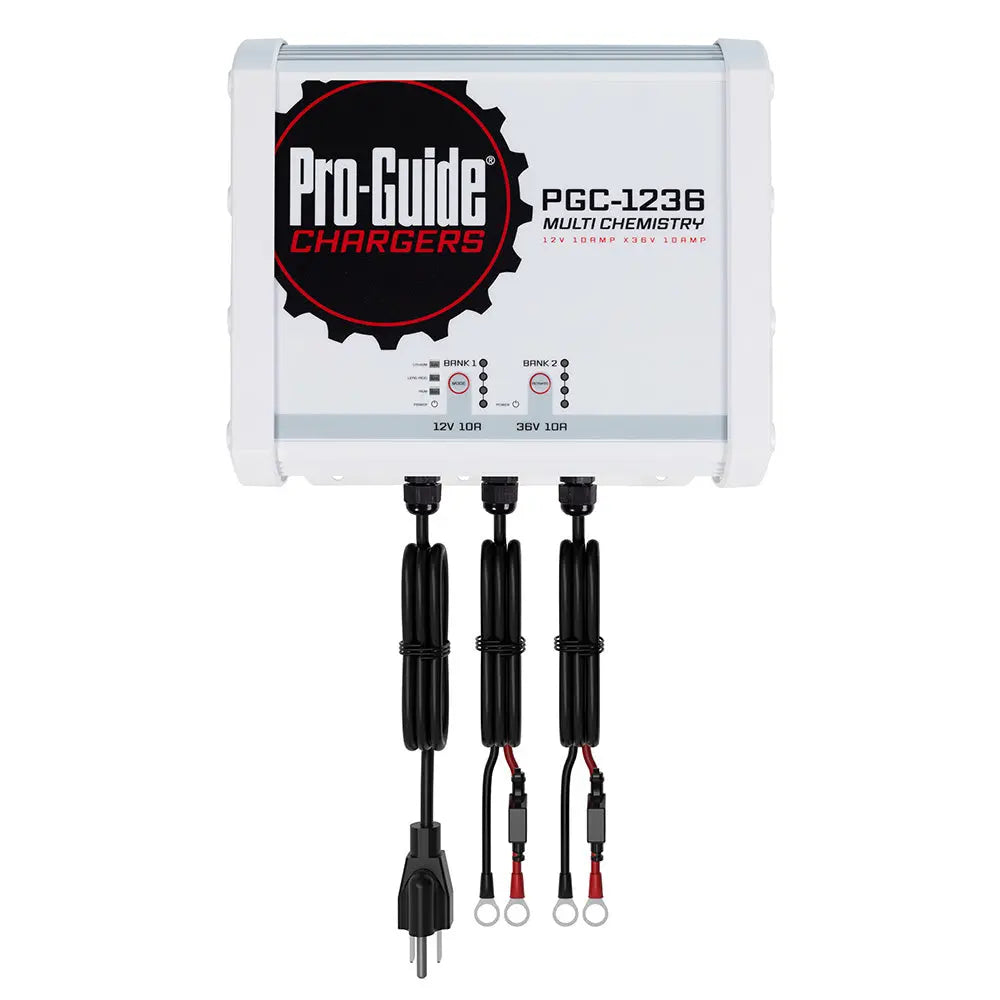

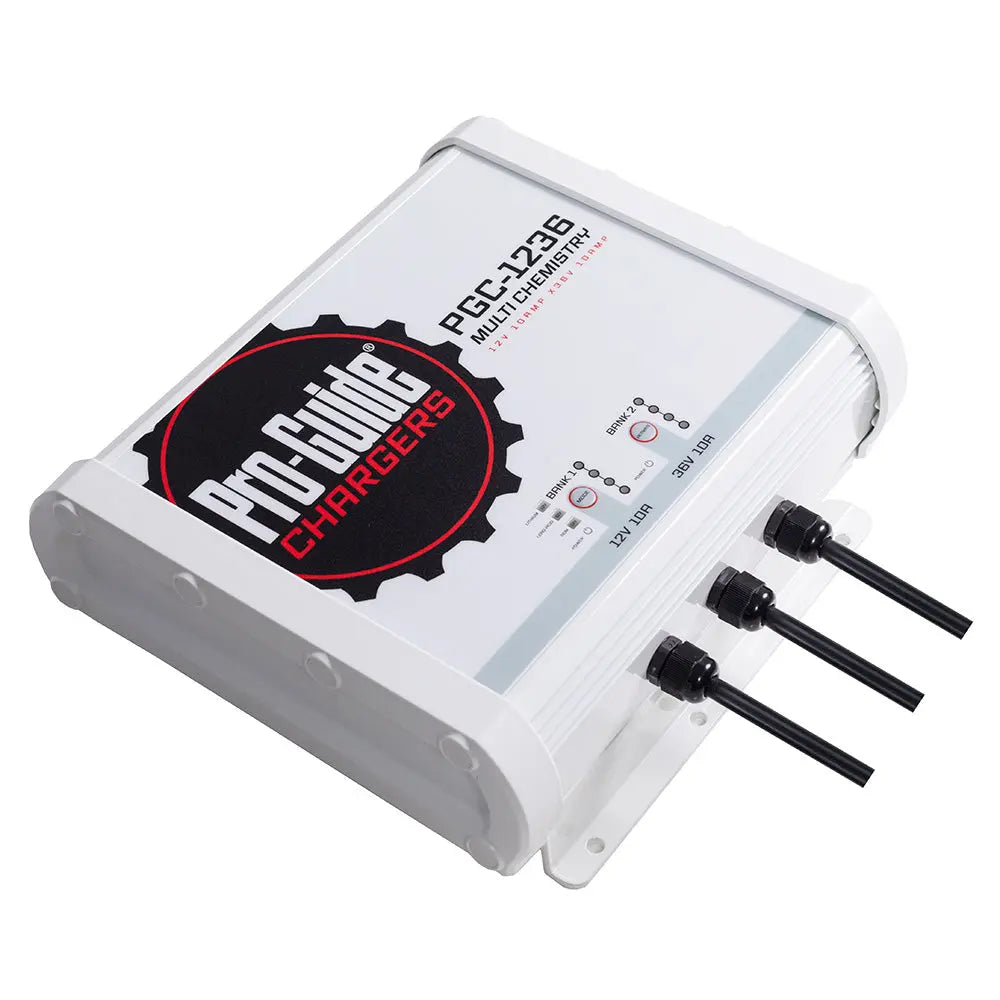

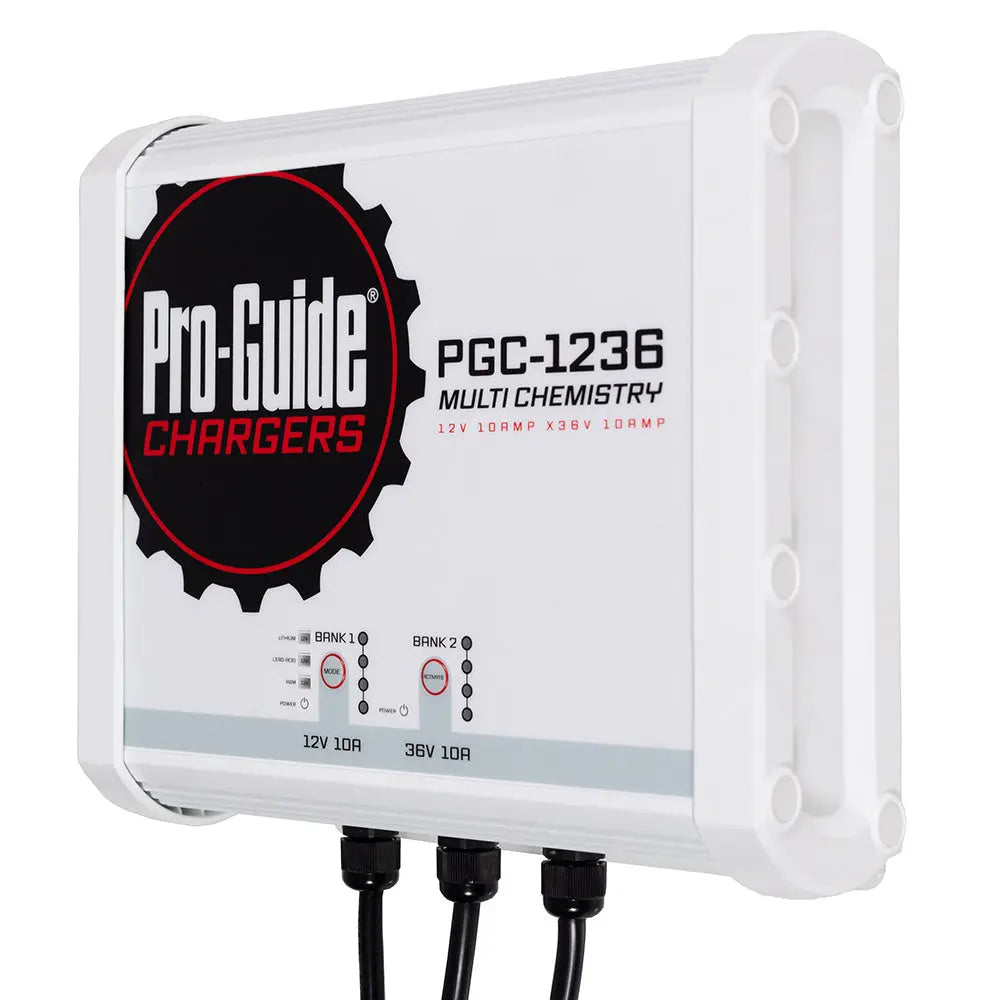

2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 20-Amp
The Pro-Guide PGC-1236 is a 12V Lead Acid / AGM / Lithium 36V Lithium on-board battery charger.
Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.
Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).
Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.
The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.
With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.
Protection:
Input:
Specifications:
The Pro-Guide PGC-1236 is a versatile on-board battery charger designed for seamless charging of both 12V and 36V batteries, including Lead Acid, AGM, and Lithium chemistries. This robust unit features two independent banks—one for a 12V battery and another for a 36V lithium battery—making it ideal for applications requiring mixed battery systems. The charger’s intelligent algorithm continuously monitors each battery's state of charge, ensuring optimal performance and readiness for your next adventure. Its design allows for year-round installation, providing reliable, maintenance-free operation with minimal user intervention. With a user-friendly activation mode, the charger can wake sleeping lithium batteries with a short voltage pulse or be manually activated by holding the button for several seconds, offering flexibility in battery management. The PGC-1236 supports three charge profiles for the 12V bank, allowing you to select the best fit for your specific battery type, whether Lead Acid, AGM, or Lithium, ensuring safe and efficient charging. Safety features include over-voltage, over-current, short circuit, reverse polarity, and over-temperature protections, giving peace of mind during operation. Its durable construction boasts an IP68 rating, making it suitable for harsh environments and continuous outdoor use. The charger is designed with a compact footprint, measuring just over 10 inches long, nearly 10 inches wide, and under 4 inches high, weighing approximately 18 pounds. Operating on standard AC power of 110-120V at 60Hz, it consumes less than 6 amps during operation. Backed by over 40 years of industry experience, Pro-Guide Batteries offers a comprehensive 2-year free warranty along with a total of 4 years of coverage. Whether you need reliable charging for marine, RV, or off-grid applications, the PGC-1236 provides a durable, intelligent, and flexible solution for maintaining your battery systems efficiently and safely.
Features:
