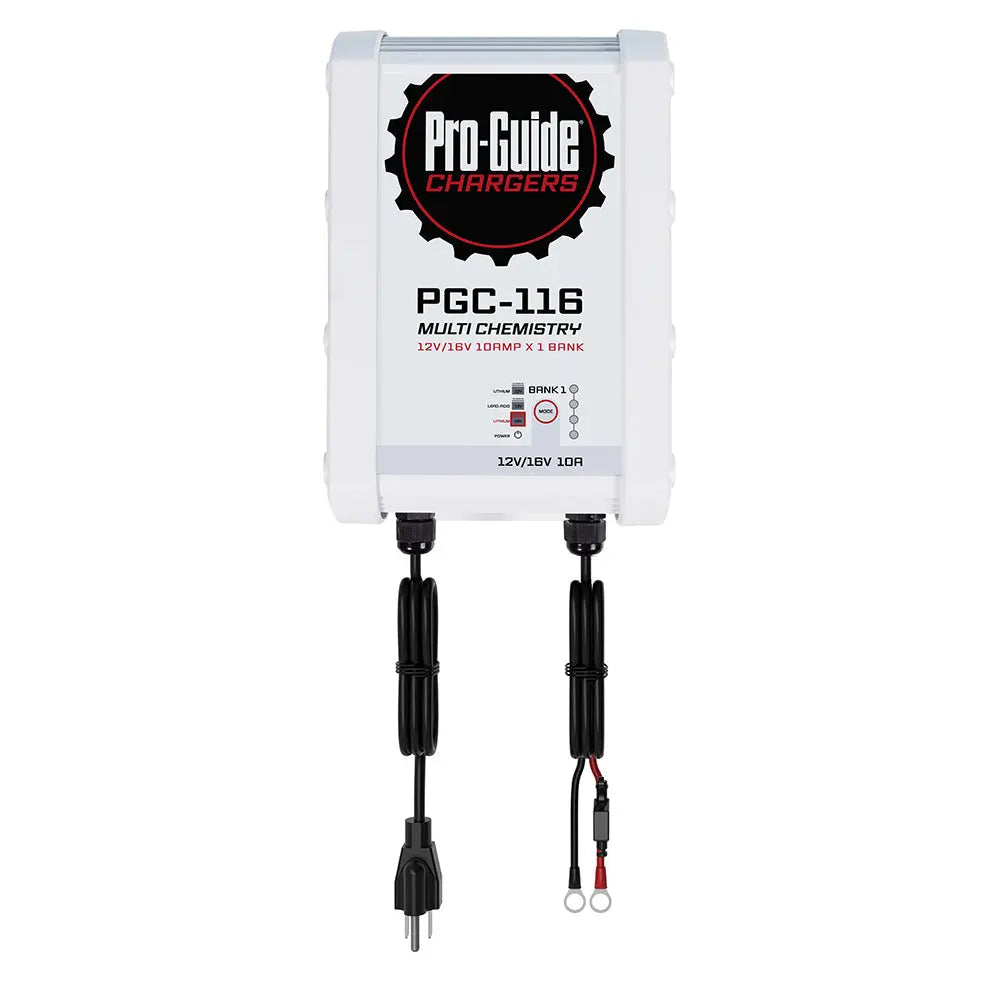

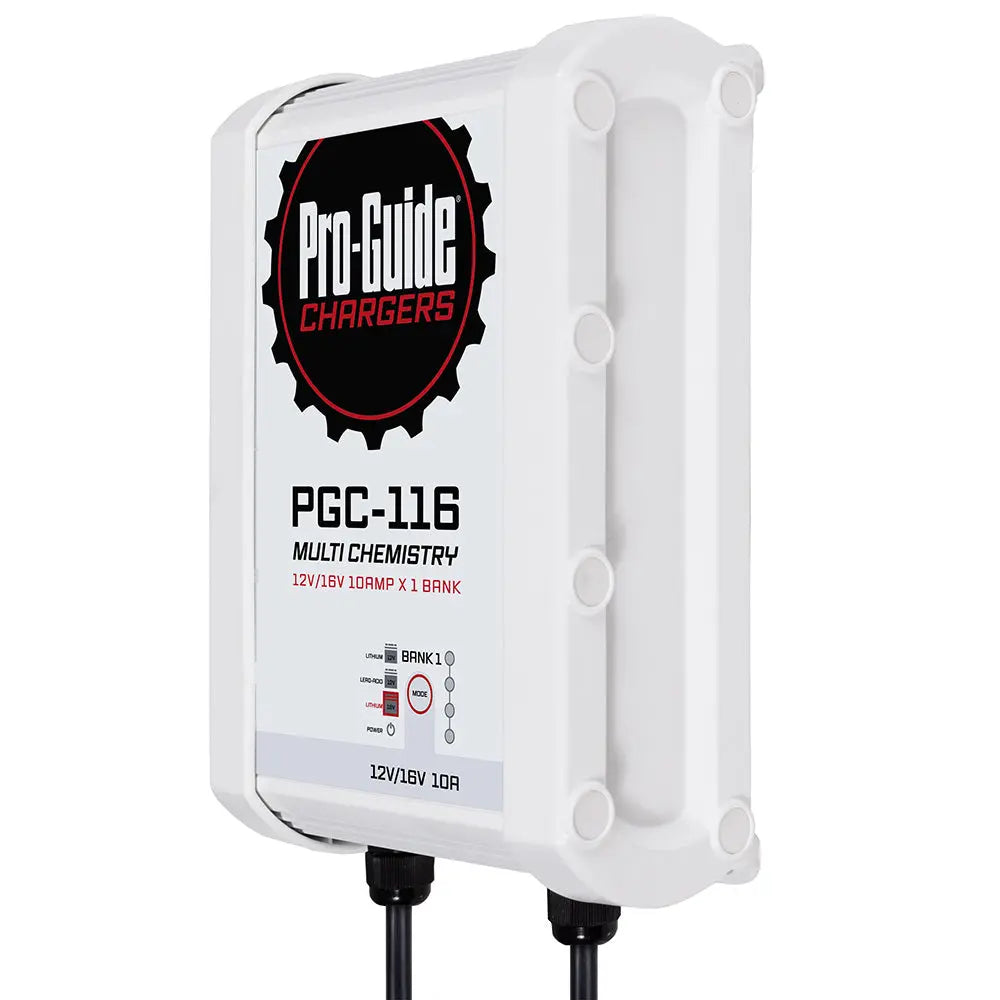

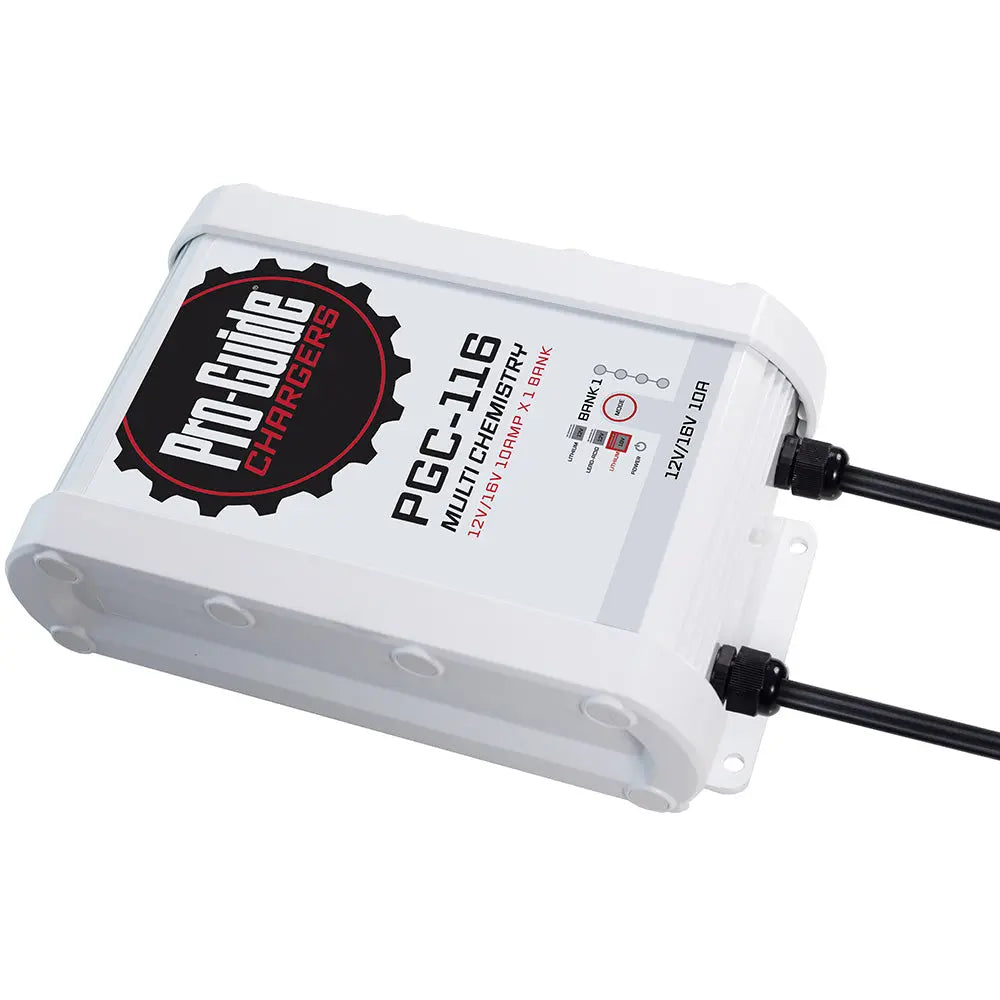

Pro-Guide Batteries PGC-116 12V/16V On-Board Battery Charger - 10 Amps

1 Bank On-Board Battery Charger - 12V/16V - 10-Amp

The Pro-Guide PGC-116 is a 12V AGM / Lithium or 16V Lithium on-board battery charger.

Select one of two charge profiles

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V AGM / Lithium 16V Lithium
• Output Voltage: DC 12V/16V x 1
• Max Output Voltage: 14.3-14.7 for 12V AGM Battery, 14.4-14.7 for 12V Lithium Battery, 18-18.3 for 16V Lithium Battery
• Output Current: 10A for 12/16V Bank
• Length: 6.02
• Width: 9.96
• Height: 3.86
• Weight: 9.9 lbs
• IP Rating: 68

The Pro-Guide Batteries PGC-116 is a versatile and reliable on-board battery charger designed for 12V AGM and Lithium batteries, as well as 16V Lithium batteries. Its compact design makes it suitable for installation in a variety of vehicles and equipment, providing efficient charging to ensure your batteries are always ready for use. The charger features two selectable charge profiles, allowing you to customize the charging process based on your battery type and needs.

Equipped with an activation mode, the PGC-116 can deliver a brief voltage pulse to wake sleeping Lithium batteries or manually activate the charging process by holding the activation button for 3-5 seconds. This feature ensures optimal charging efficiency and battery health. The intelligent PGC algorithm continuously monitors each battery's state of charge on a predetermined timeline, maintaining optimal charge levels and preventing overcharging. Designed for year-round use, this charger stays plugged in without concern, thanks to its robust protection features.

Pro-Guide offers peace of mind with a comprehensive 2-year free warranty and a total of 4 years of coverage. The PGC-116 includes multiple protection features such as output over-voltage, output over-current, short circuit protection, reverse polarity safeguard, and over-temperature shutdown. It operates on standard AC power, drawing less than 6A at 110-120V, and is rated IP68 for dust and water resistance, making it suitable for demanding environments. With a maximum output voltage of approximately 14.7V for 12V batteries and 18.3V for 16V Lithium batteries, this charger ensures safe and effective charging.

Measuring just over 6 inches in length, 10 inches in width, and 4 inches in height, the PGC-116 is lightweight at under 10 pounds, making installation straightforward. Its durable construction and reliable performance make it an excellent choice for maintaining your batteries in various applications, from RVs and boats to trucks and utility vehicles.

Features:

• Dual charge profiles for 12V AGM and Lithium or 16V Lithium batteries

• Activation mode to wake or manually activate Lithium batteries

• Intelligent algorithm continuously monitors battery charge state

• Robust protection against over-voltage, over-current, short circuit, reverse polarity, and over-temperature

• Designed for year-round, continuous operation

• IP68 rated for dust and water resistance

• Compact and lightweight for easy installation

• Includes 2-year free warranty and 4-year total coverage
