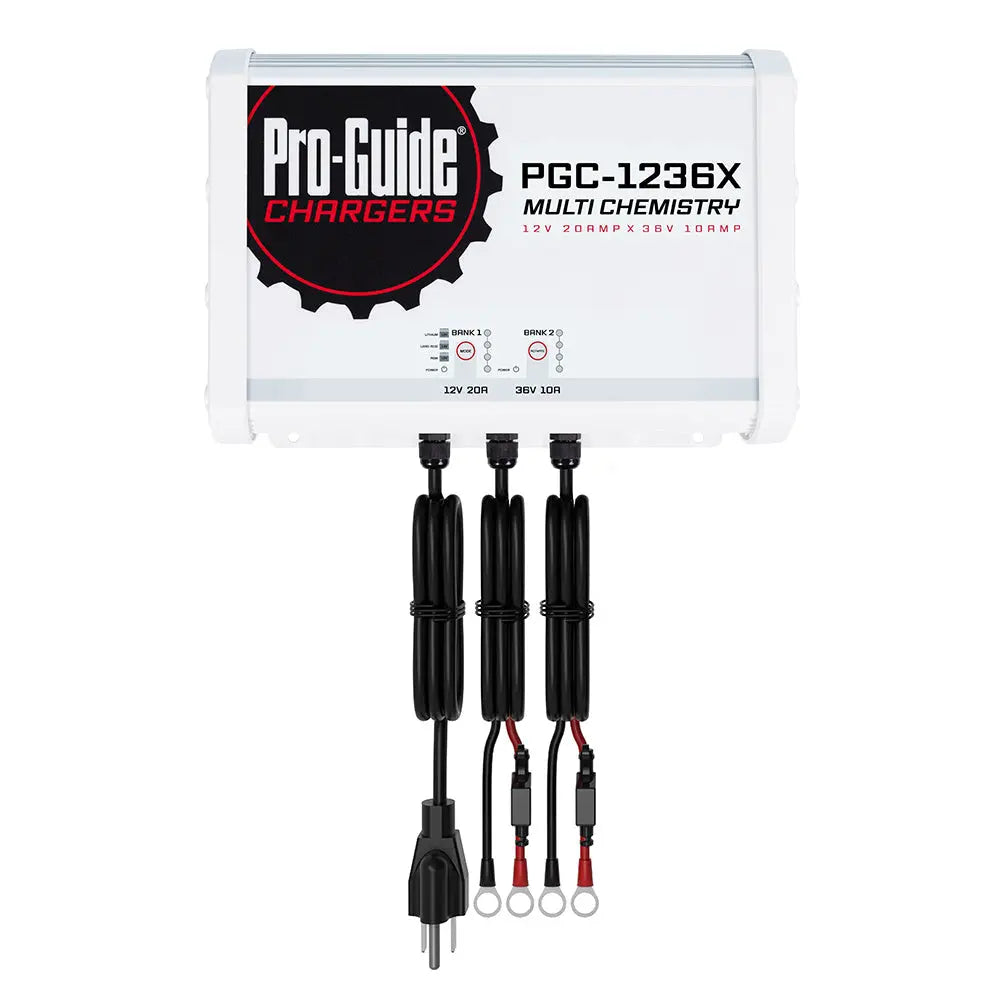

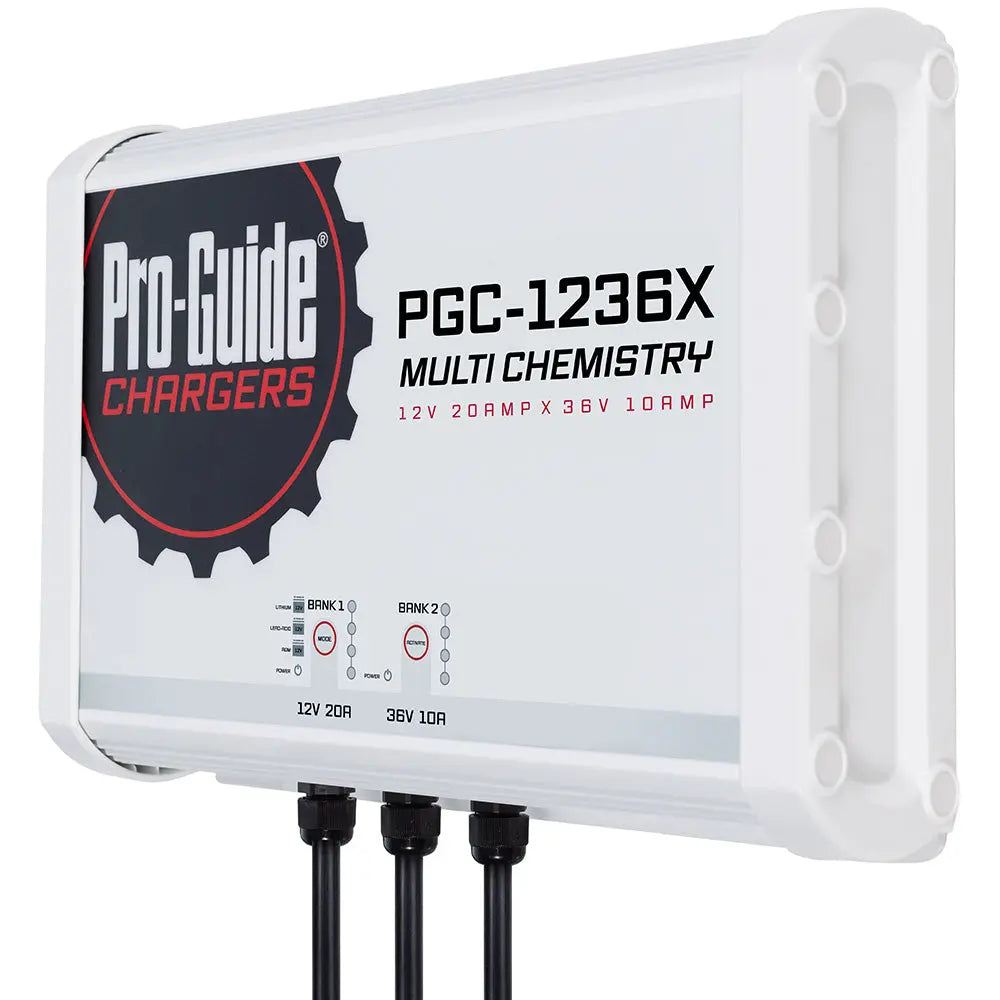

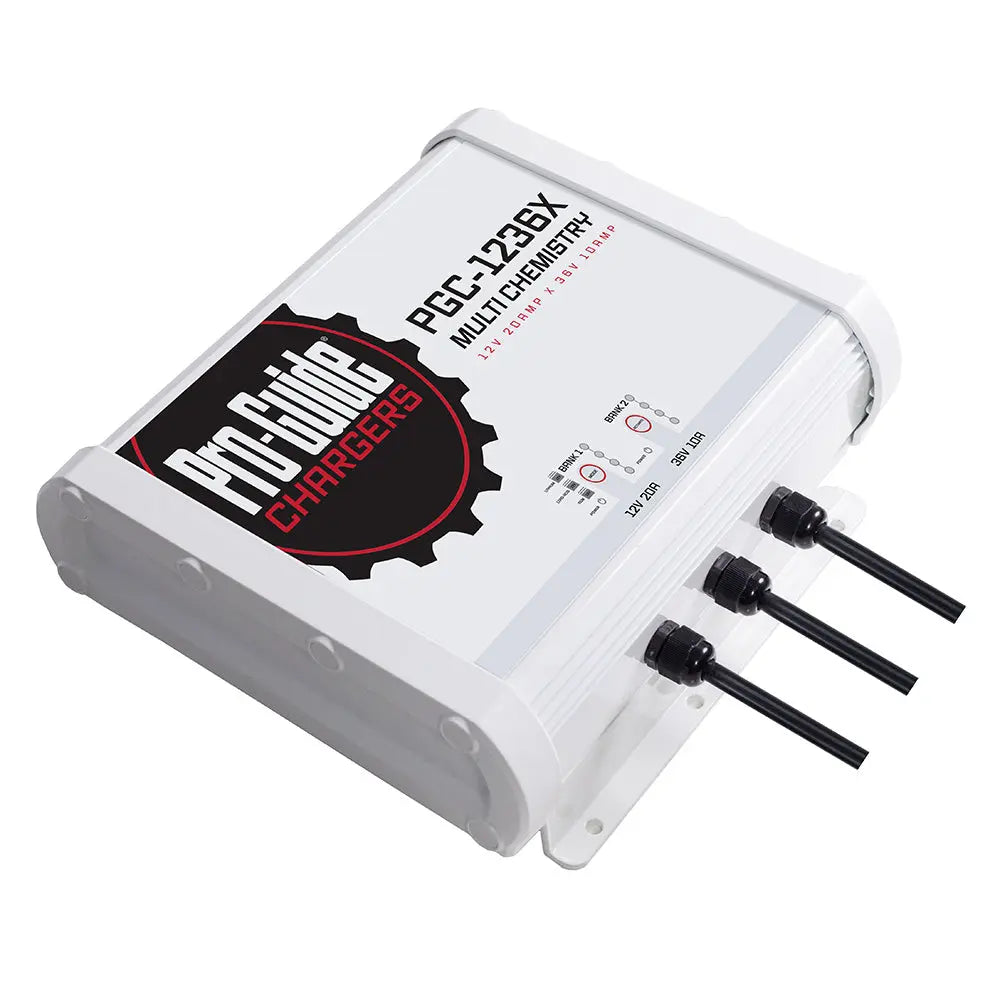

Pro-Guide Batteries PGC-1236X 2 Bank On-Board Battery Charger for 12V Lead Acid, AGM, and 36V Lithium Batteries

2 Bank On-Board Battery Charger - (1) 12V / (1) 36V - 30-Amp

The Pro-Guide PGC-1236x is a 12V Lead Acid / AGM / Lithium 36V Lithium on-board battery charger.

Each 12V Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Allowing the charger to supply a single 12V Charging Bank for Lead Acid, AGM, or Lithium Chemistries, and then a second bank to charge a 36V Lithium Battery(s).

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: 12V Lead Acid/AGM/Lithium 36V Lithium
• Output Voltage: DC 12V x 1 DC 36V x 1
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery 43-44 for 36V Lithium Battery
• Output Current: 20A for 12V Bank 10A for 36V Bank
• Length: 13.15
• Width: 9.96
• Height: 3.86
• Weight: 24.3 lbs
• IP Rating: 68

The Pro-Guide Batteries PGC-1236X is a versatile on-board battery charger designed to efficiently charge both 12V Lead Acid, AGM, and 36V Lithium batteries. With its dual-bank configuration, this charger allows you to select from three different charge profiles for each 12V bank, enabling you to optimize charging based on your specific battery chemistry. The second bank is dedicated to charging 36V Lithium batteries, making this unit suitable for a wide range of applications including utility vehicles, RVs, and boats. Its intelligent charging algorithm continuously monitors each battery's state of charge, ensuring optimal performance and longevity. The activation mode provides a quick voltage pulse to wake sleeping Lithium batteries, and a manual activation feature helps maintain battery readiness during long-term storage or infrequent use. Built with durability in mind, the PGC-1236X is designed to stay plugged in year-round, providing reliable maintenance charging without interruption. With over 40 years of experience backing this product, Pro-Guide Batteries offers a 2-year free and 4-year total warranty for peace of mind. Safety features include over-voltage, over-current, short circuit, reverse polarity, and over-temperature protection, ensuring safe operation in various conditions. The charger operates on standard AC power with an input of 110-120V at 60Hz and consumes less than 6 amps during operation. Its robust construction and IP68 rating make it suitable for harsh environments, and its compact size allows for easy installation in tight spaces. Whether maintaining a single battery or managing multiple batteries in a complex system, the PGC-1236X provides reliable, efficient, and flexible charging for your critical power needs.

Features:

• Dual-bank design supports 12V Lead Acid, AGM, and 36V Lithium batteries

• Selectable charge profiles for each 12V bank for customized charging

• Intelligent algorithm monitors battery state of charge for optimal maintenance

• Activation mode supplies voltage pulses to wake sleeping Lithium batteries

• Manual activation for long-term storage or infrequent use

• Built-in protection includes over-voltage, over-current, short circuit, reverse polarity, and over-temperature safeguards

• Designed for year-round use with continuous, maintenance charging capability

• Operates on AC 110-120V, 60Hz power with low input current

• Robust construction with IP68 rating for durability in harsh environments

• Compact size simplifies installation and integration into various systems
