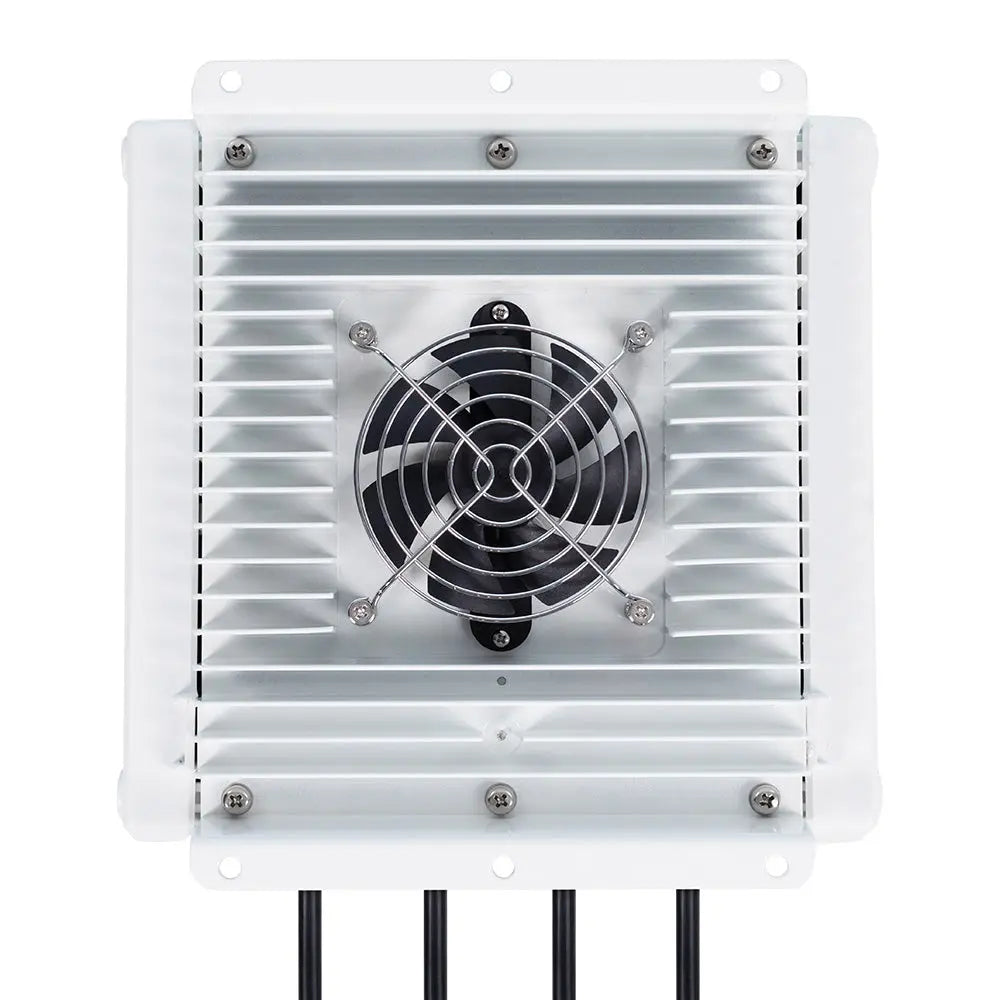

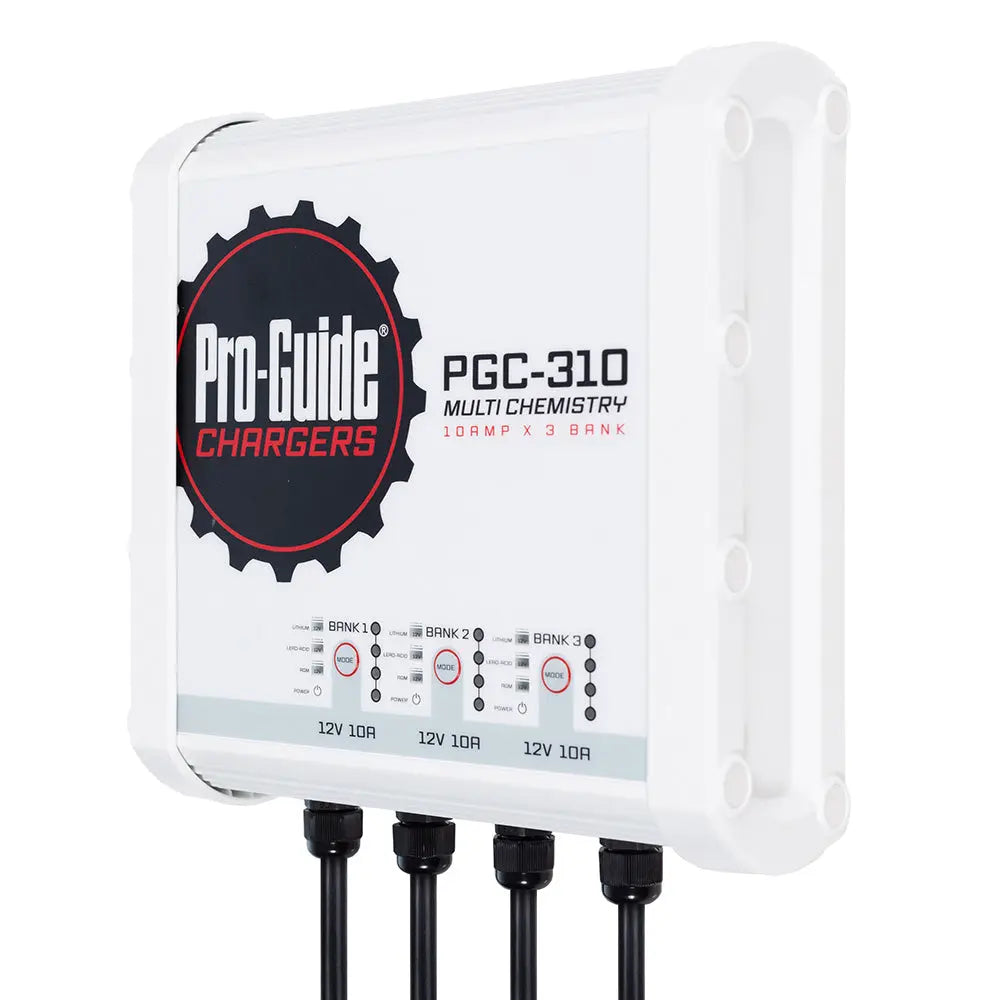

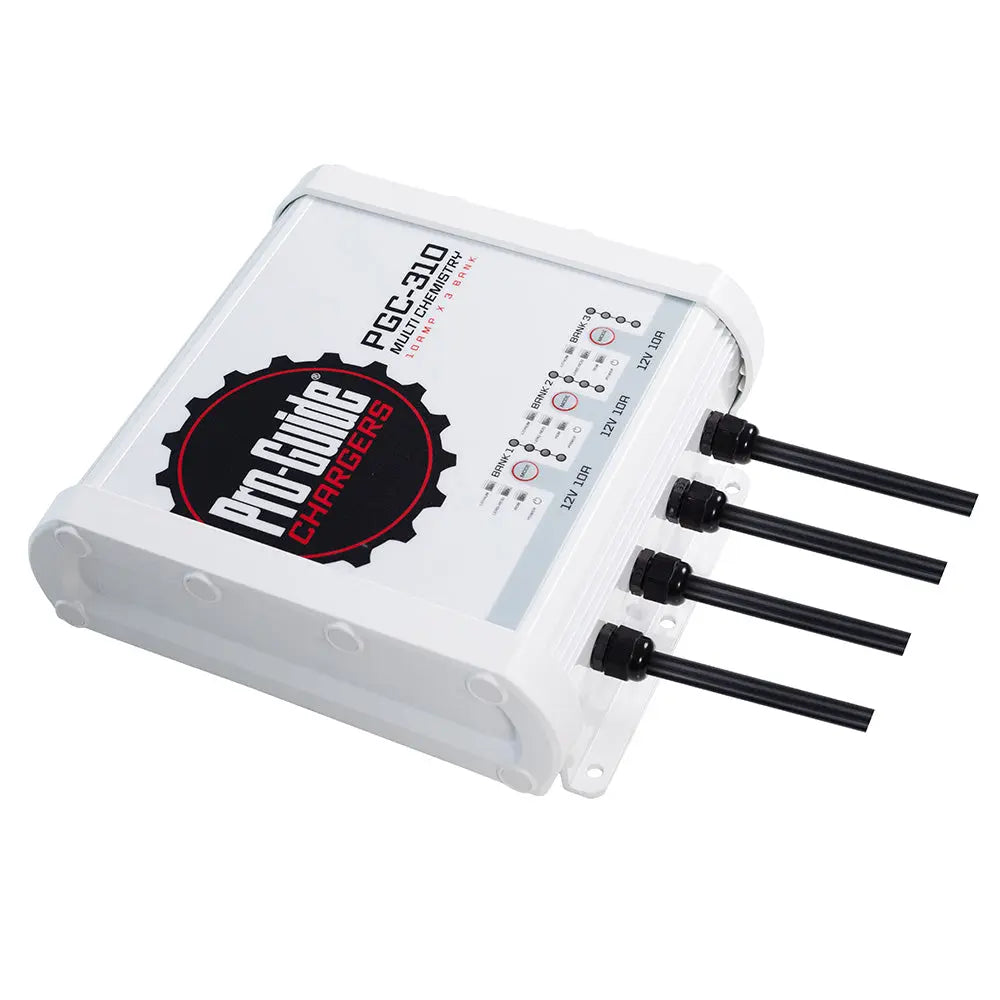

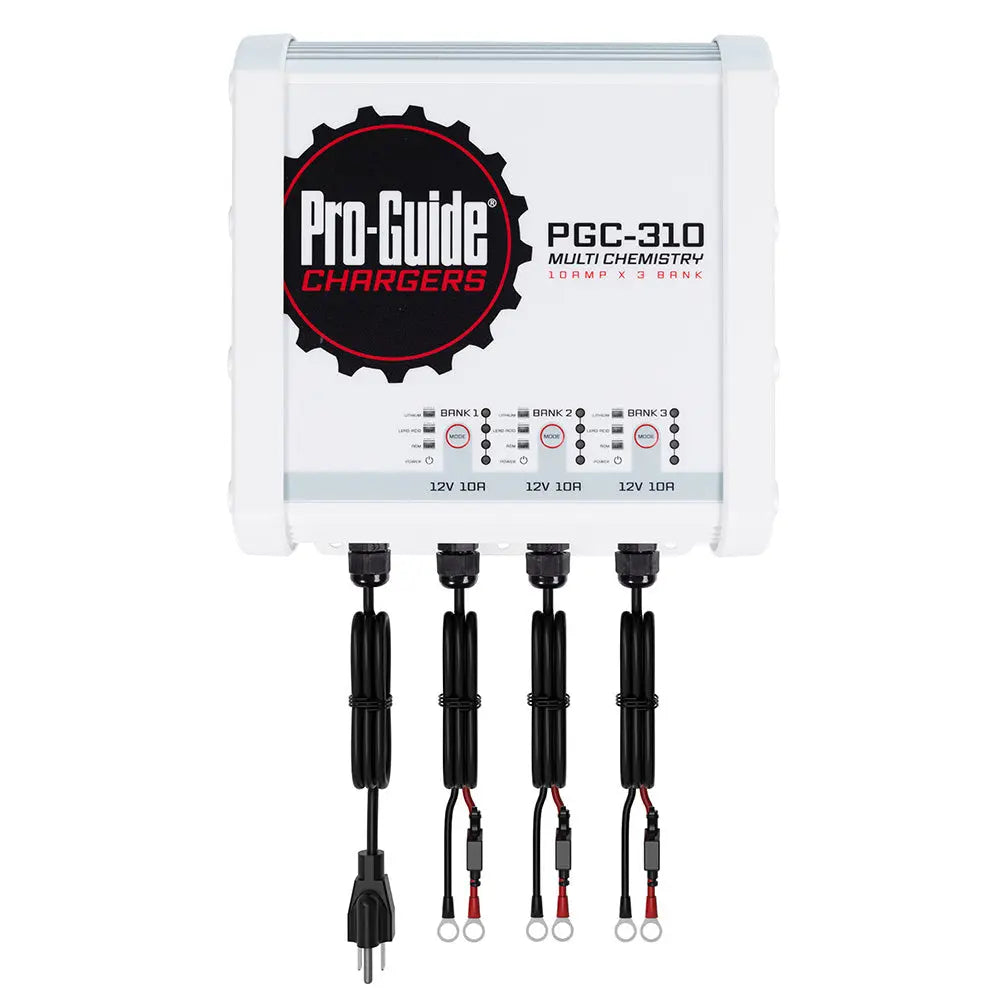

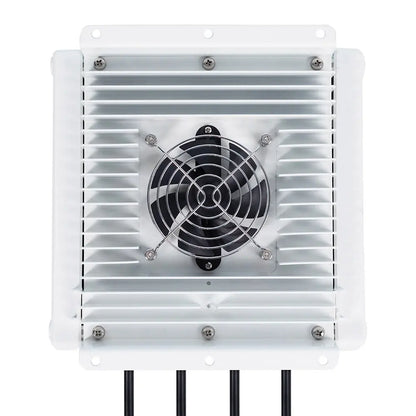

Pro-Guide Batteries PGC-310 3 Bank 12V 30-Amp On-Board Battery Charger

3 Bank On-Board Battery Charger - 12V - 30-Amp

The Pro-Guide PGC-310 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium
• Output Voltage: DC 12V x 3
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery
• Output Current: 10A x3
• Length: 9.06
• Width: 9.96
• Height: 3.86
• Weight: 15.9 lbs
• IP Rating: 68

The Pro-Guide PGC-310 is a versatile 12V on-board battery charger designed to support lead acid, AGM, and lithium batteries. With three independent banks, it offers customizable charging options, allowing users to select one of three charge profiles for each bank, optimizing performance and battery longevity. The charger features an activation mode that supplies a brief voltage pulse to wake sleeping lithium batteries or allows manual activation by holding the button for 3-5 seconds, ensuring all batteries are ready for use. This design makes the PGC-310 suitable for year-round installation, providing reliable maintenance charging to keep batteries fully topped off before each adventure. The intelligent PGC Algorithm monitors each battery’s state of charge on a specific timeline, automating the charging process to deliver efficient and precise power management without user intervention. Built with over 40 years of expertise, Pro-Guide Batteries backs this charger with a 2-year free warranty and a total of 4 years of coverage, emphasizing durability and customer confidence.
Protection features include output over-voltage, output over-current, short circuit, reverse polarity, and over-temperature safeguards, ensuring safe operation under various conditions. The input requires an AC power supply of 110-120V at 60Hz, with a maximum input current of less than 6A. The PGC-310 provides three DC 12V outputs, each capable of delivering up to 10 amps, with maximum output voltages tailored to different battery types: 14.1-14.3V for lead acid, 14.3-14.7V for AGM, and 14.4-14.7V for lithium batteries. Its compact dimensions make it suitable for installation in tight spaces, with a weight of approximately 16 pounds and an IP68 rating for dust and water resistance, ideal for demanding environments and outdoor use.

Features:

• Supports lead acid, AGM, and lithium batteries for versatile application

• Three independent charging banks with selectable profiles for customized setup

• Activation mode to wake sleeping lithium batteries or manual activation

• Intelligent charging algorithm for consistent, optimized power delivery

• Built-in safety protections including over-voltage, over-current, short circuit, reverse polarity, and temperature safeguards

• Designed for year-round installation, maintaining battery health and readiness

• Compact size with durable IP68 rating suitable for outdoor environments

• Includes a 2-year free warranty and 4-year total warranty for reliable performance
