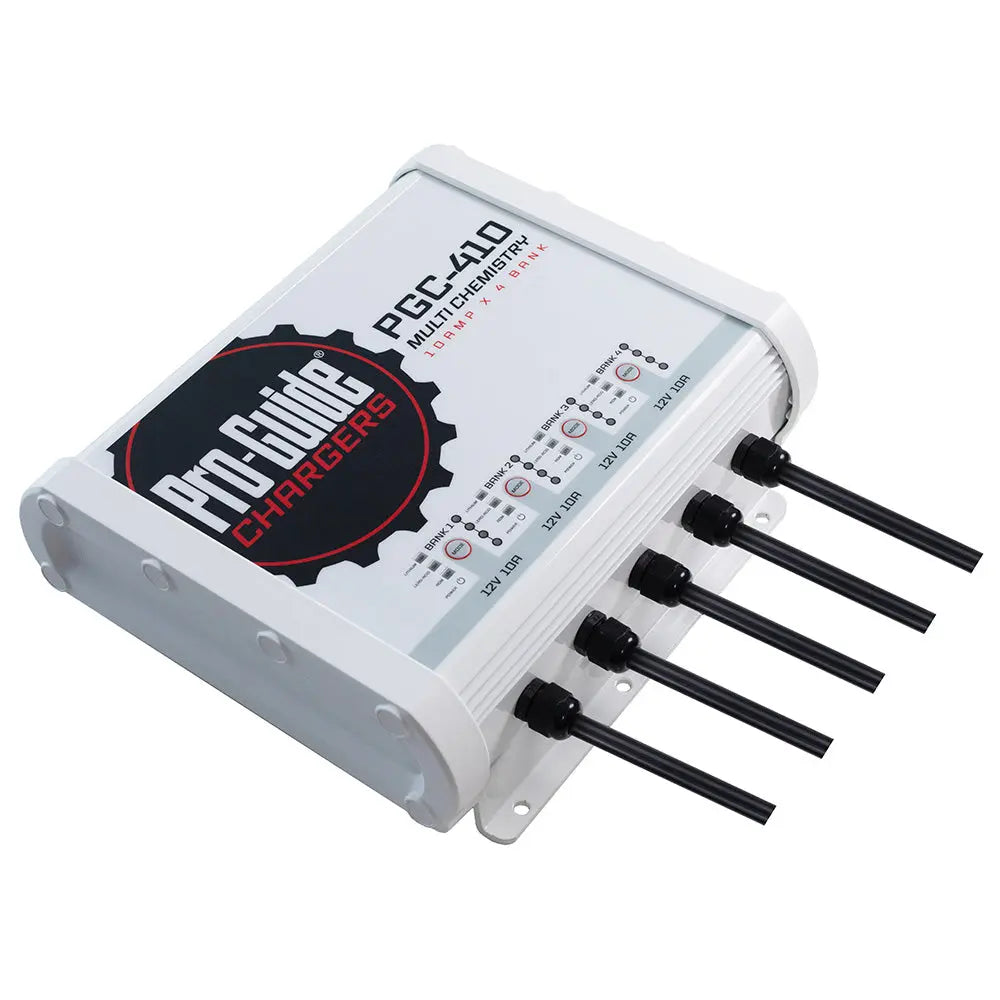

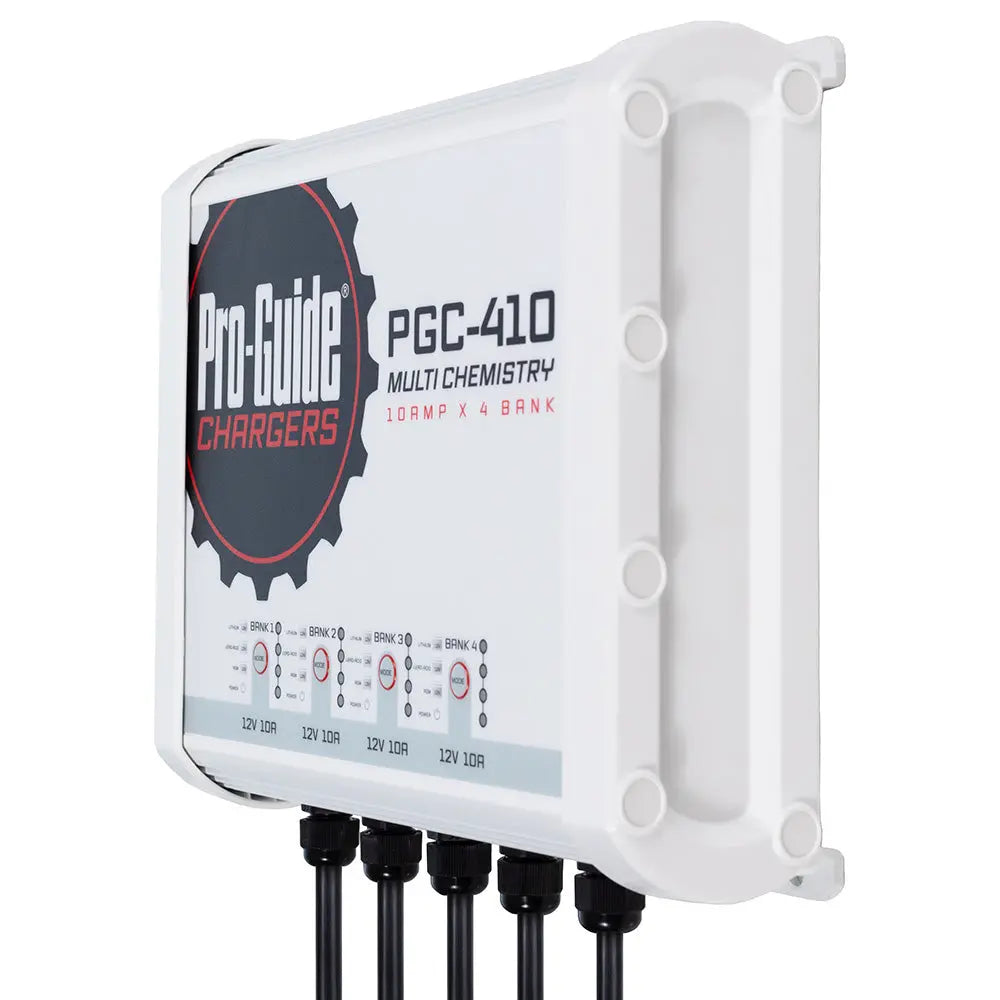

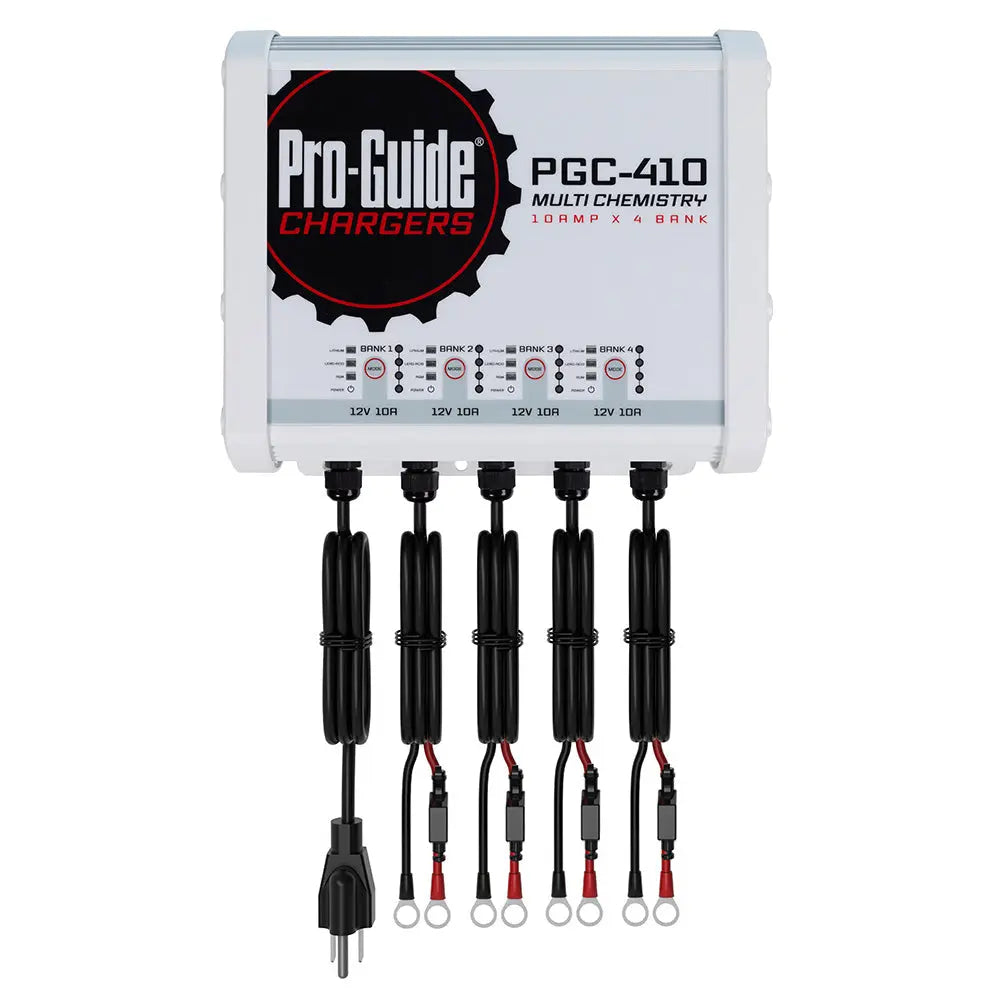

Pro-Guide Batteries PGC-410 4 Bank 12V On-Board Battery Charger – 40 Amp with Intelligent Charging and Multi-Profile Support

4 Bank On-Board Battery Charger - 12V - 40-Amp

The Pro-Guide PGC-410 is a 12V Lead Acid / AGM / Lithium on-board battery charger.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium
• Output Voltage: DC 12V x 4
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery
• Output Current: 10A x4
• Length: 10.71
• Width: 9.96
• Height: 3.86
• Weight: 18.7 lbs
• IP Rating: 68

The Pro-Guide Batteries PGC-410 is a versatile 4-bank on-board charger designed to keep your lead acid, AGM, or lithium batteries fully charged and ready for your next adventure. With its 12V DC output and 40-amp capacity, this charger offers reliable and efficient power management for multiple batteries simultaneously. The PGC-410 features a user-friendly interface that allows you to select one of three customizable charge profiles for each bank, enabling you to optimize your setup based on your battery type and usage needs. This flexibility makes it suitable for a wide range of applications, from recreational vehicles to commercial fleet operations.

Equipped with an activation mode, the PGC-410 can deliver a brief voltage boost to wake any sleeping lithium batteries or be manually activated by holding the button for 3-5 seconds. Its intelligent algorithm continuously monitors each battery's state of charge, ensuring precise charging cycles and maintaining optimal battery health year-round. The charger is designed to stay plugged in, providing consistent maintenance and reducing the risk of battery failure due to neglect. With over 40 years of industry experience, Pro-Guide Batteries backs this product with a 2-year free and 4-year total warranty, underscoring its durability and quality.

Safety features include comprehensive protection against output over-voltage, over-current, short circuits, reverse polarity, and overheating, ensuring safe operation under various conditions. The PGC-410 operates on standard AC power (110-120V, 60Hz) and consumes less than 6 amps during operation. Its compact design measures approximately 10.7 inches in length, 10 inches in width, and 3.9 inches in height, making it suitable for installation in tight spaces. With an IP68 rating, the charger is dust-tight and water-resistant, suitable for demanding environments. Whether for marine, RV, or industrial use, the Pro-Guide PGC-410 delivers dependable, intelligent battery management designed to extend battery life and improve overall performance.

Features:

• Four independent charge banks supporting lead acid, AGM, and lithium batteries

• Selectable charge profiles for optimized battery maintenance

• Activation mode to wake sleeping lithium batteries or manual activation

• Intelligent algorithm monitors and manages each battery's state of charge

• Designed for year-round use with continuous maintenance capabilities

• Over-voltage, over-current, short circuit, reverse polarity, and over-temperature protection

• Input voltage of AC 110-120V with 60Hz frequency and low input current

• Compact and water-resistant design with IP68 rating for durability in tough environments
