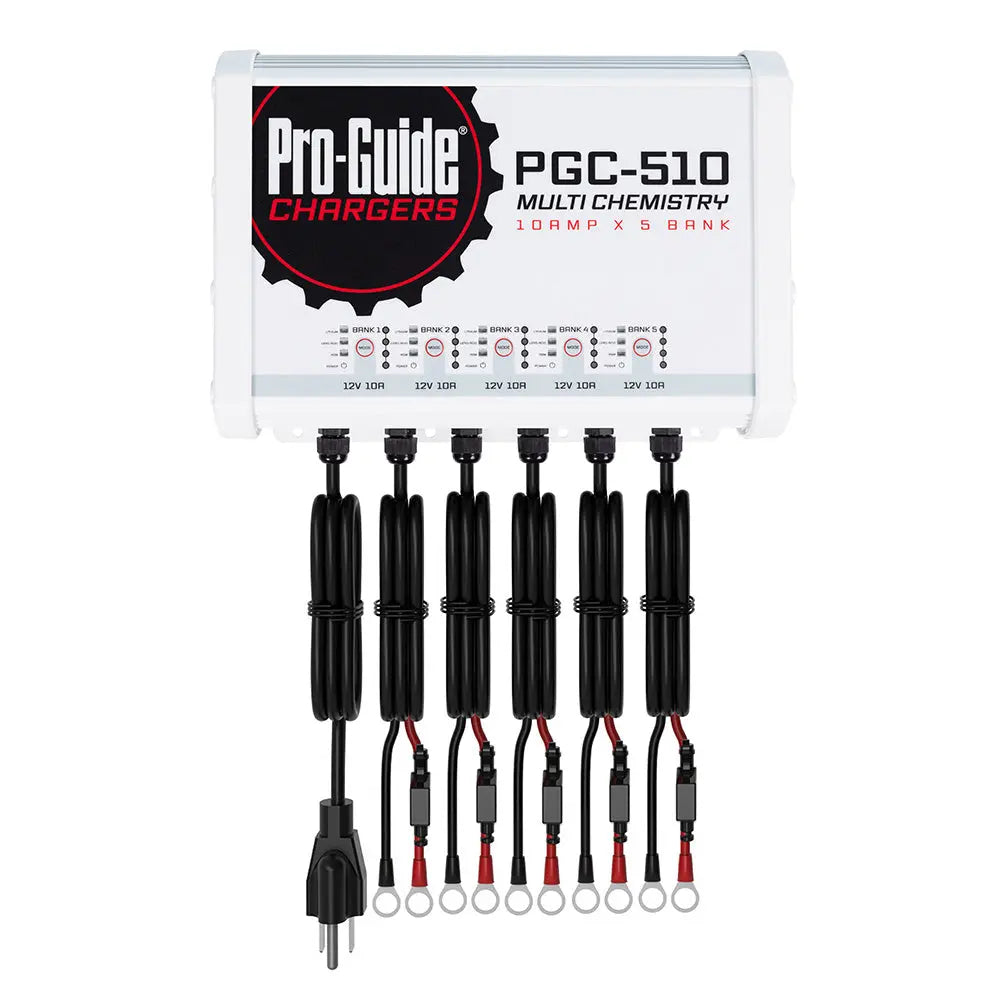

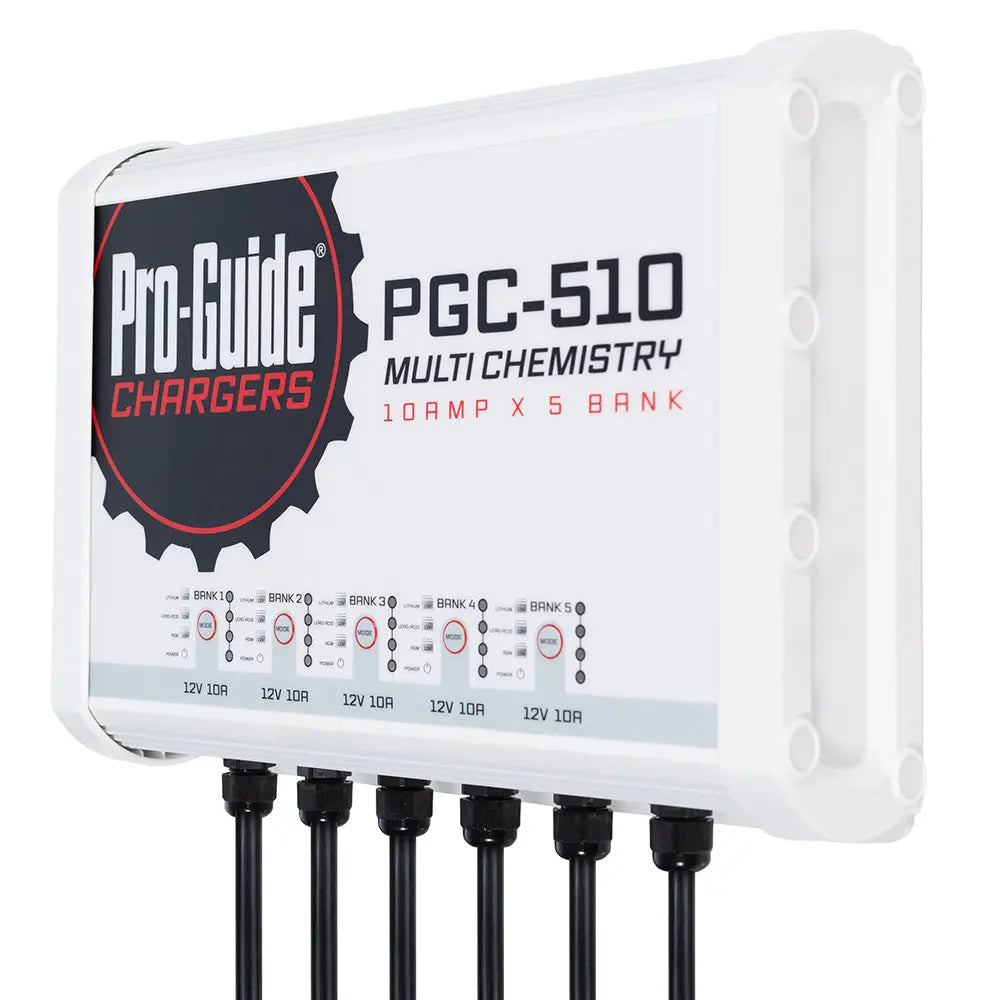

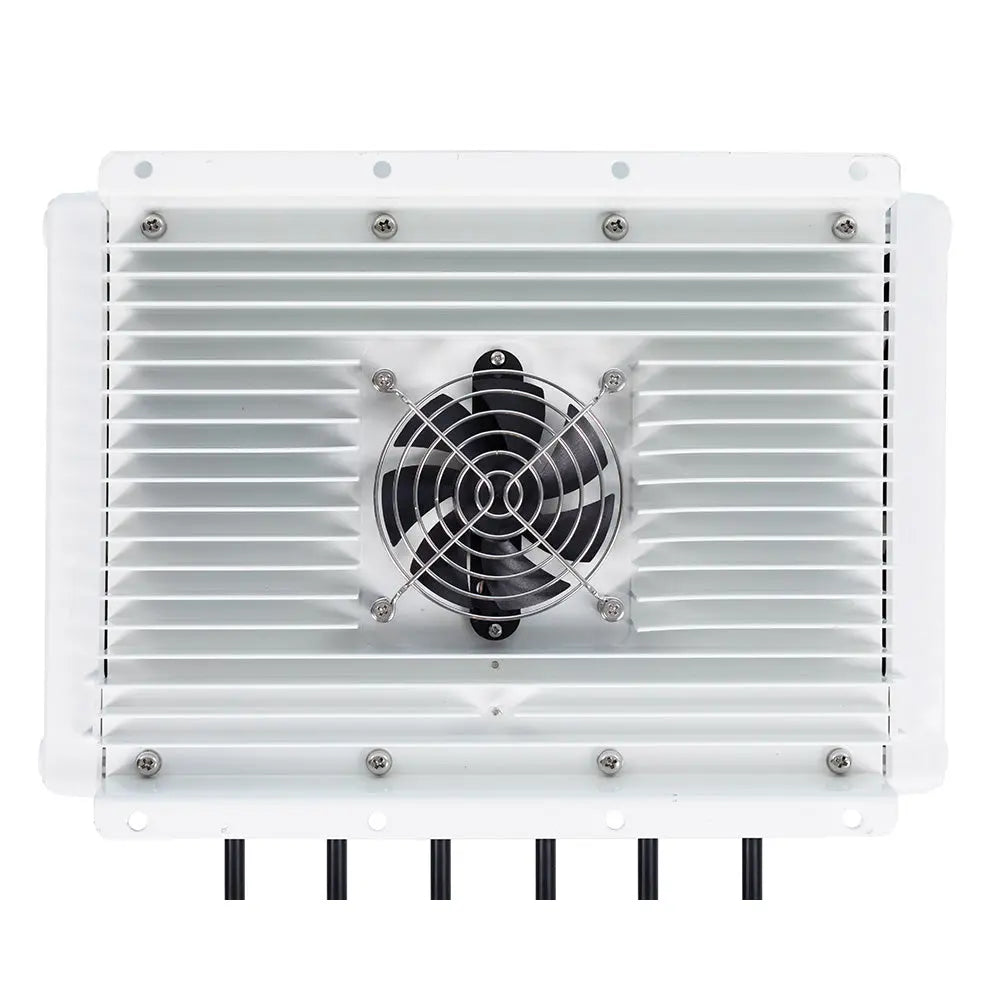

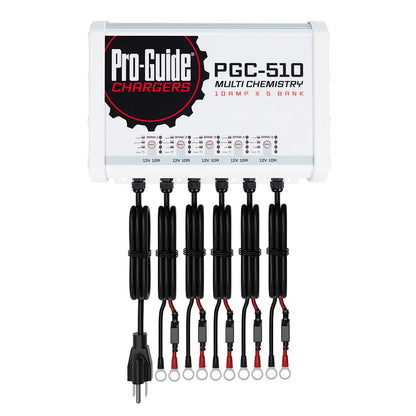

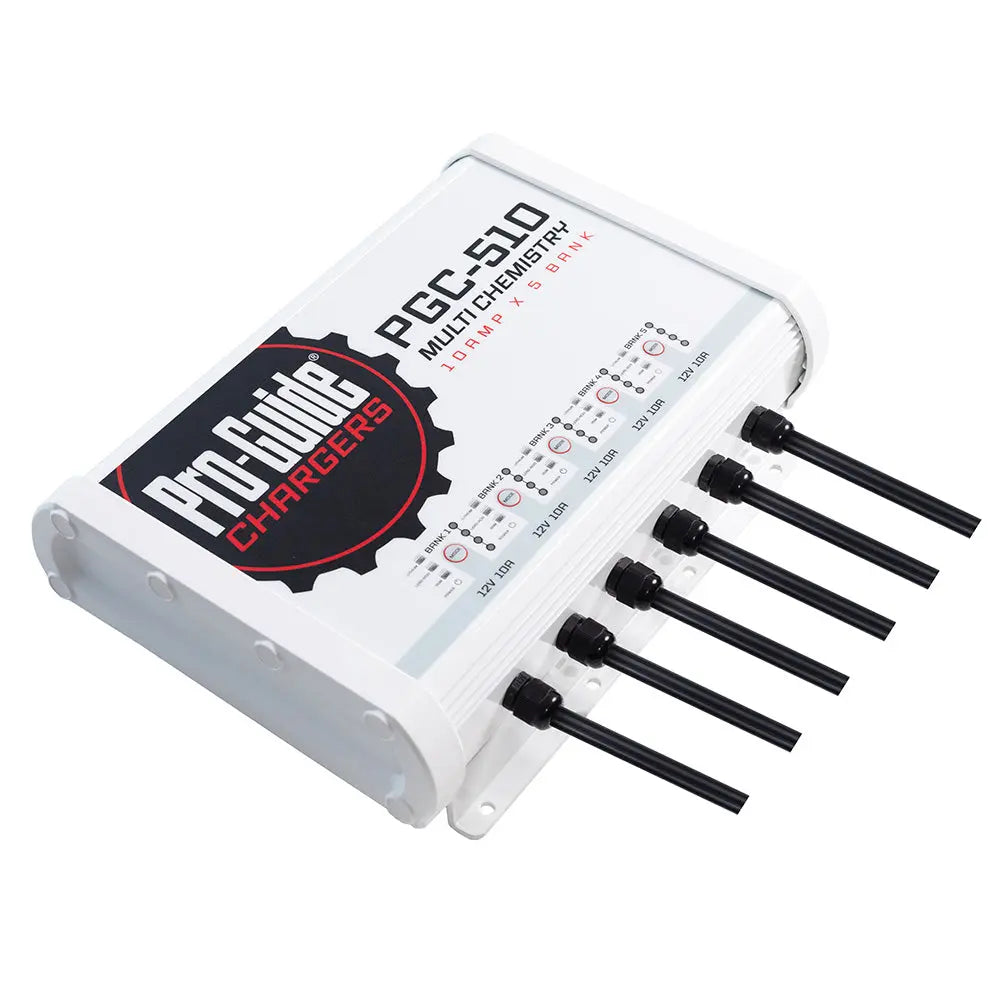

Pro-Guide Batteries PGC-510 5 Bank 12V On-Board Battery Charger with 40-Amp Output

5 Bank On-Board Battery Charger - 12V - 40-Amp

The Pro-Guide PGC-510 is a 12V on-board battery charger for lead-acid, AGM, and lithium batteries.

Each Bank can select one of three charge profiles, and allows the consumer to mix and match for their optimum setup.

Activation Mode supplies a short supply of voltage to wake any asleep Lithium Battery, or hold the button for (3-5) seconds to enter a manual Activation Mode.

The PGC Line is designed to stay plugged in year-round. With the Intelligent PGC Algorithm, each PGC Charger checks each batterys state of charge on a specific timeline, ensuring that youll be fully charged for your next adventure.

With over 40 years of experience, Pro-Guide is proud to stand behind this charger with a 2 Year Free and 4 Year Total Warranty.

Protection:

• Output Over-Voltage
• Output Over Current
• Output Short Circuit
• Output Reverse Polarity
• Over Temperature

Input:

• Input Voltage: AC 110-120V
• Frequency: 60Hz
• Input Current: <6A

Specifications:

• Battery Type: Lead Acid/AGM/Lithium
• Output Voltage: DC 12V x 5
• Max Output Voltage: 14.1-14.3 for Lead Acid Battery, 14.3-14.7 for AGM Battery, 14.4-14.7 for Lithium Battery
• Output Current: 10A x5
• Length: 13.15
• Width: 9.96
• Height: 3.86
• Weight: 24.3 lbs
• IP Rating: 68

The Pro-Guide PGC-510 is a versatile 12V on-board battery charger designed to support lead-acid, AGM, and lithium batteries. Its five-bank configuration allows for simultaneous charging with each bank capable of selecting one of three customizable charge profiles, enabling users to optimize their setup based on battery type and usage needs. The activation mode offers a quick voltage supply to wake sleeping lithium batteries or allows manual activation by holding the button for 3-5 seconds, ensuring reliable start-up and maintenance. Built for year-round use, the PGC-510 incorporates an intelligent algorithm that continuously monitors each battery's state of charge, providing consistent and efficient charging to keep your batteries fully prepared for every adventure. Pro-Guide’s extensive experience in battery management is reflected in the durable construction and reliable performance of this charger, backed by a 2-year free and a total 4-year warranty for peace of mind. Safety features include protection against output over-voltage, over-current, short circuits, reverse polarity, and over-temperature conditions, making it a dependable choice for demanding environments. Designed for easy integration, the charger connects to AC power at 110-120V with a 60Hz frequency and consumes less than 6 amps during operation. Its robust construction measures approximately 13.15 inches long, 9.96 inches wide, and 3.86 inches high, with a weight of about 24.3 pounds, and features an IP68 rating for water and dust resistance. Whether installed on a truck, RV, or marine vessel, the Pro-Guide PGC-510 ensures your batteries remain charged and ready, providing peace of mind and optimal performance across various applications.

Features:

• Five-bank configuration supports simultaneous charging of multiple batteries

• Selectable charge profiles for lead-acid, AGM, and lithium batteries

• Activation Mode for waking or manually activating lithium batteries

• Intelligent algorithm continuously monitors battery charge status

• Durable design with IP68 water and dust resistance rating

• Over-voltage, over-current, short circuit, reverse polarity, and over-temperature protections

• Low input current of less than 6 amps at 110-120V AC power

• Compact size measuring approximately 13.15 inches long, 9.96 inches wide, and 3.86 inches high

• Backed by a 2-year free and 4-year total warranty for reliable performance
