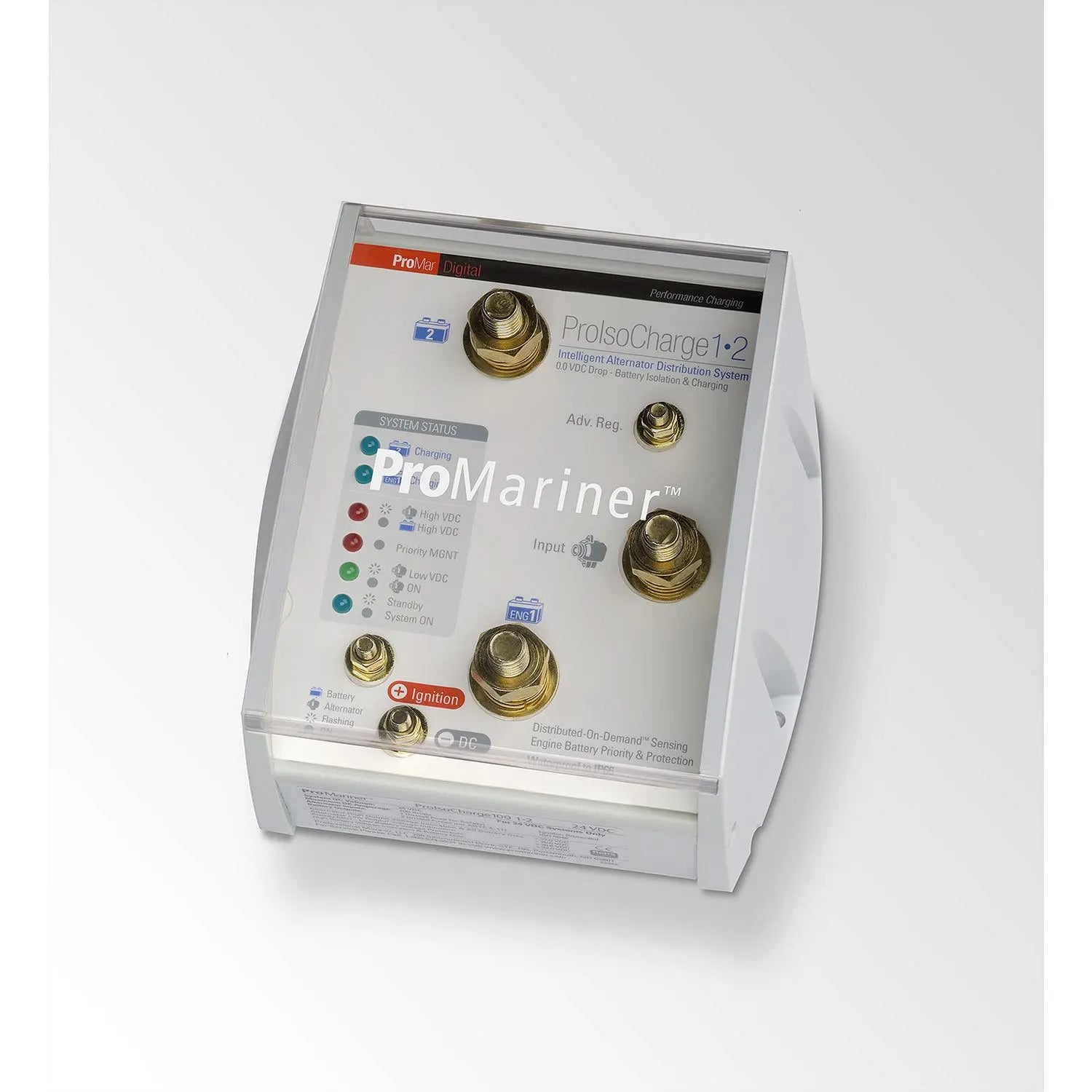

ProMariner ProIso Charge 180 0 Voltage Loss Isolator 12v 1 Alternator 2 Batteries

ProMariner ProIso Charge 180 0 Voltage Loss Isolator 12v 1 Alternator 2 Batteries

ProMariner ProIsoCharge180 Zero Volt Loss Isolator 1 Alternator 2 Batteries

•
  ProMar Digital Performance Zero Volt Loss Isolation and Charging
  All digital design delivers active battery status and automatic engine battery health priority while digitally distributing the full output of your engine’s alternators.


•

  Intelligent Isolation and Charging Software Control
  ProIsoCharge’s intelligent software control provides priority charging to a battery bank that is under load (i.e house bank or power inverter bank) by taking fully charged batteries off line and priority charging discharged battery banks, while insuring the health of the engine batteries.


• Real Time LED Status Indicators,/b>
  Highly visible LEDs to indicate alternator power is present and battery bank charging status. Fault LEDs include: high and low alternator output, over-voltage protection and high voltage conditions that may be present on any one of the battery banks connected (that are also connected to other charging sources gen set combi etc).


•
  Ignition Controlled
  Distributed On Demand battery bank management will only activate with ignition power on.


•
  Advance Regulator Ready
  Advance regulator remote sense connection provided for precision alternator algorithm control for alternators equipped with an advanced regulator.


•
  Easy Installation
  Modular design for easy install. Includes all terminal stud insulator boots and protective snap on safety cover.


•
  Built-in Safety
  Ignition protected and waterproof to IP66

ProIsoCharge delivers digitally controlled alternator output distribution while protecting the health of engine start batteries, isolating and charging up to 3 other independent battery banks off of a single alternator (model specific). For dual engine applications, ProIsoCharge offers an exclusive 2 alternator input model with up to 4 battery banks. Save space and time by eliminating traditional diode based isolators and ancillary voltage sensitive relays or solenoids, isolating and charging multiple battery banks simultaneously. Eliminate typical alternator voltage loss of up to .6 VDC that is commonly associated with traditional diode based isolators. Intelligent zero volt loss isolation insures fully charged batteries and faster charge times. Installed with the ProNauticPSeries, a boat owner can enjoy the full benefit of shore power and on the water charging. Designed to provide more time on the water enjoying what you like most... Boating.

System Voltage
12vDC

Alternator Input
1

Battery output
2

Dimensions
6.15"(l) x 5.875"(w) x 3.125"(h)

Max DC Amps
180
