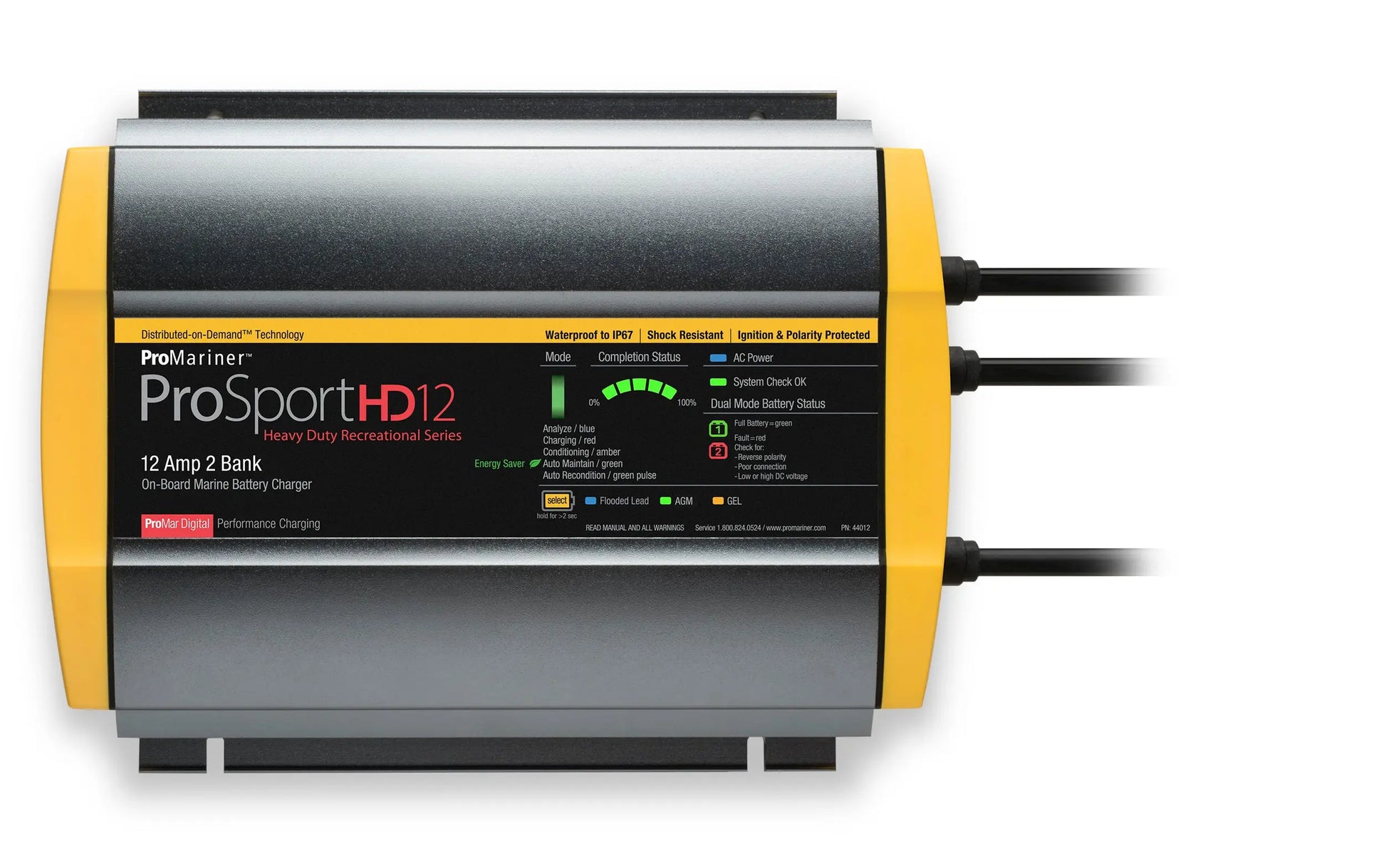

ProMariner ProSport HD 12 Gen4 12 Amp Battery Charger 12/24v 2 Bank 120v Input

ProMariner ProSport HD 12 Amp Battery Charger Features and Benefits

ProMariner ProSport HD 12 Gen4 12 Amp Battery Charger 12/24v 2 Bank 120v Input

ProMariner ProSport HD 20 Gen4

12 Amp Battery Charger 12/24v 2 Bank 120v Input

Model: 44012

• Microprocessor and software controlled charging technology for fast, precise charging.
• 100% of all available charging amps are utlilized by distributing unused charging amps to any one or combination of all batteries as needed.
• Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode.
• LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Mult-stage Charge Mode, Systems Check OK, individual Battery Status and Battery Type indication.
• Up to 40% lighter compared to an opoxy filled charger.
• Monitor and auto maintain batteries only when needed to maintain full staye of charge. This significantly reduces AC power consumption.
• 5 Stages: Analyzes, charages, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life.
• Dual inline waterproof fuses, reverse polarity, over-temperatures, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B.
• Pre-wired with 6 feet AC and DC cables.
• Battry Type: Group 24-31 Flooded, AGM, HP AGM, & GEL batteries
• 3 Year Warranty

ProSpsortHD Generation 4 boasts a new tri-surface heatsink design. This new heavy-duty lightweight design delivers significantly faster charging trhoug optimal cooling, while delivering true rated amp output during charge mode.

ProSprortHD'S enhanced microprocessor and software provides new digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, invididual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and Gel batteries. HP AGM profile on ProSport HD 20 Dual only.

Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status.

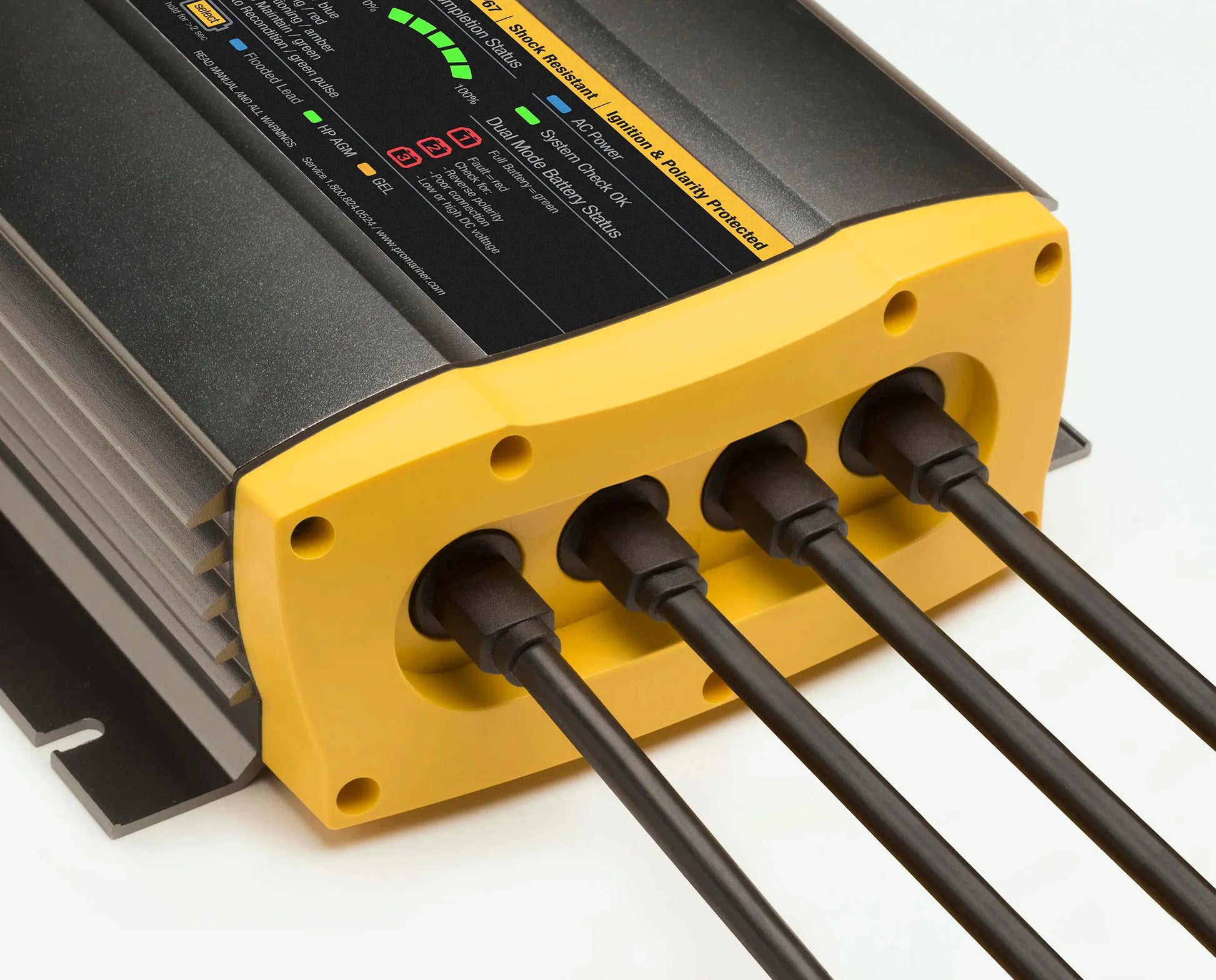

Desiagned for use in harsh enviornments with our industrial grade jacketed DC and AC power cables which include new modled strain reliefs and wire splitters.

Specifications

DC Voltage Systems12/24

Amps
12

No. of Batteries
2

AC & DC Cable Length
6 feet/6 feet

Size
7.9x8.9"x2.9 in

Weight
6.0 lbs

AC in
1.20v AC + 10% 50/60Hz

AC Plug
NEMA 5-15

"

Efficient Dual Bank Charging Technology

The ProMariner ProSport HD 12 Gen4 is expertly designed to deliver efficient dual bank battery charging for both 12v and 24v systems. This model supports simultaneous charging on two independent banks, ensuring that your marine batteries receive optimal power without compromising performance. The built-in smart charging technology automatically adjusts the charging rate according to battery needs, enhancing battery life and reliability. By using the 120v input, it guarantees stable power for extended boat trips, providing peace of mind to marine enthusiasts relying on their electrical systems.

Advanced Safety and Diagnostic Features

Safety is a top priority with the ProMariner ProSport HD 12 Amp charger. It includes advanced diagnostic systems that detect potential battery problems such as overcharging, short circuits, or low voltage conditions. The charger’s automatic temperature compensation protects batteries from damage caused by extreme weather conditions, making it suitable for use in varying marine environments. Additionally, its rugged construction meets strict marine standards, ensuring corrosion resistance and long-lasting durability even in harsh saltwater conditions.

User-Friendly Design with Easy Installation

Designed with the user in mind, the ProMariner ProSport HD offers straightforward installation and intuitive operation. Its compact, lightweight design fits easily into tight spaces onboard, while the clear LED indicators provide real-time charging status at a glance. Quick-connect terminals and included mounting options make set-up simple for boat owners and technicians alike. With minimal maintenance required, this charger becomes an essential tool for maintaining battery health, ensuring dependable power supply for your marine electronics and onboard systems.
