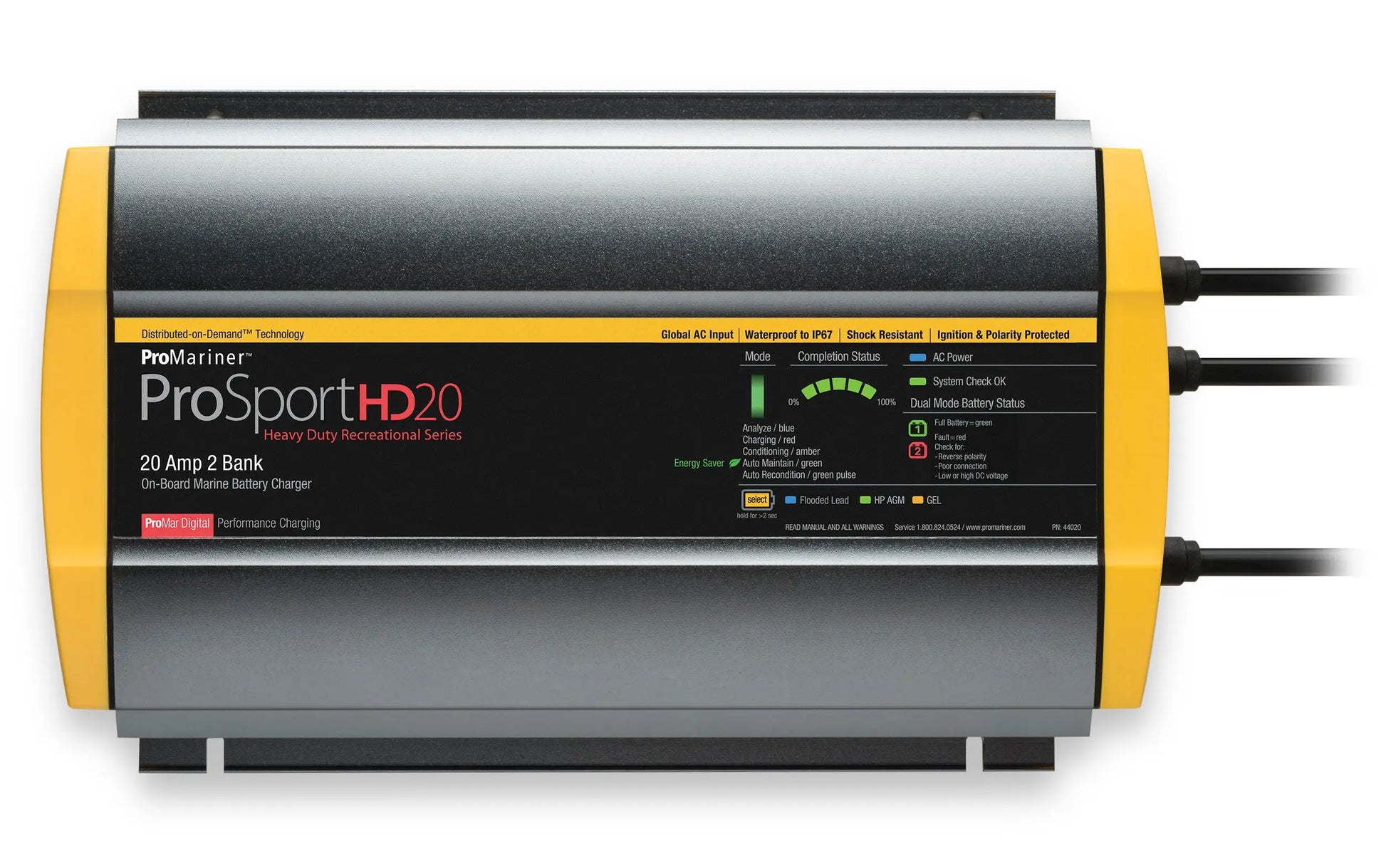

ProMariner ProSport HD 20 Gen4 20 Amp Battery Charger 12/24v 2 Bank 120v Input

ProMariner ProSport HD 20: Reliable and Efficient Battery Charging

ProMariner ProSport HD 20 Gen4 20 Amp Battery Charger 12/24v 2 Bank 120v Input

ProMariner ProSport HD 20 Gen4

12/24v 2 Bank 120v Input

Model: 44020

• Microprocessor and software controlled charging technology for fast, precise charging.
• 100% of all available charging amps are utlilized by distributing unused charging amps to any one or combination of all batteries as needed.
• Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode.
• LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Mult-stage Charge Mode, Systems Check OK, individual Battery Status and Battery Type indication.
• Up to 40% lighter compared to an opoxy filled charger.
• Monitor and auto maintain batteries only when needed to maintain full staye of charge. This significantly reduces AC power consumption.
• 5 Stages: Analyzes, charages, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life.
• Dual inline waterproof fuses, reverse polarity, over-temperatures, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B.
• Pre-wired with 6 feet AC and DC cables.
• Battry Type: Group 24-31 Flooded, AGM, HP AGM, & GEL batteries
• 3 Year Warranty

ProSpsortHD Generation 4 boasts a new tri-surface heatsink design. This new heavy-duty lightweight design delivers significantly faster charging trhoug optimal cooling, while delivering true rated amp output during charge mode.

ProSprortHD'S enhanced microprocessor and software provides new digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, invididual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and Gel batteries. HP AGM profile on ProSport HD 20 Dual only.

Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status.

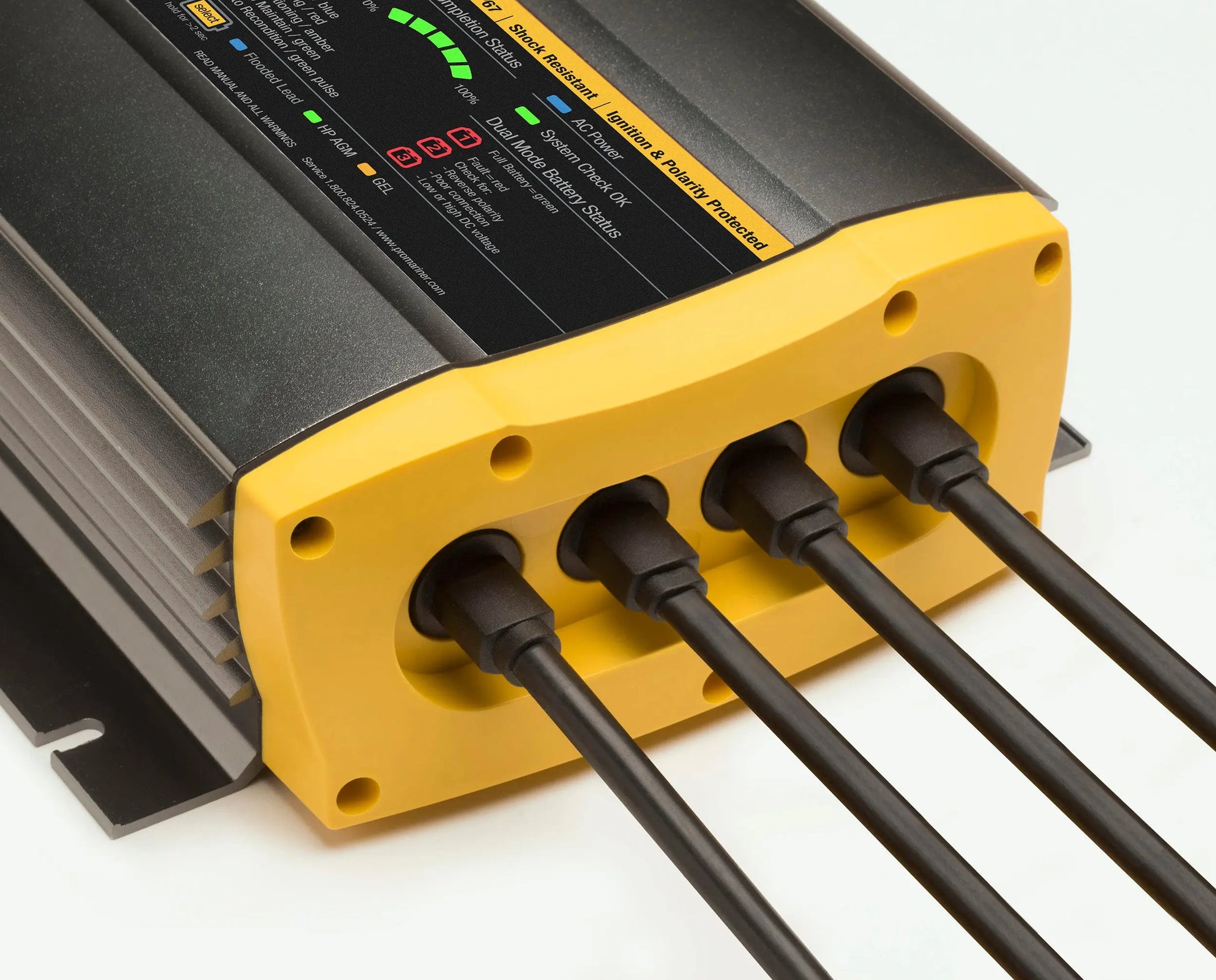

Desiagned for use in harsh enviornments with our industrial grade jacketed DC and AC power cables which include new modled strain reliefs and wire splitters.

Specifications

DC Voltage Systems12/24

Amps
20

No. of Batteries
2

AC & DC Cable Length
6 feet/6 feet

Size
7.9x 12.8"x2.9 in

Weight
7.2 lbs

AC in
1.20v AC + 10% 50/60 Hz

AC Plug
NEMA 5-15

"

Advanced Charging Technology for Marine Batteries

The ProMariner ProSport HD 20 is designed with advanced technology to provide optimal charging for marine batteries. Supporting 12/24v systems and equipped with a 2-bank configuration, this charger efficiently charges two batteries simultaneously. It features a 20 amp output which ensures fast and reliable charging whether you're powering a boat's engine or onboard electronics. ProMariner's patented progressive charging stages protect battery health, extend battery life, and prevent overcharging, making it an ideal choice for marine enthusiasts.

Durable and User-Friendly Design

Built with durability in mind, the ProMariner ProSport HD 20 battery charger is housed in a robust, corrosion-resistant case suitable for harsh marine environments. The unit’s intuitive LED indicators provide clear charging status, ensuring users can monitor battery conditions easily. The 120v input allows for versatile power sources, making it perfect for both dockside and onboard use. Its compact design simplifies installation, while built-in safety features like short circuit protection and reverse polarity safeguard your batteries and charger.

Energy Efficient and Environmentally Friendly

ProMariner focuses on energy efficiency and environmental responsibility with the ProSport HD 20 charger. This charger uses smart power management systems to minimize energy waste while delivering consistent performance. It operates quietly and produces minimal heat, promoting a safer charging environment. Additionally, its energy-efficient design reduces power consumption, supporting eco-friendly boating practices. Whether you’re maintaining daily battery charge or storing batteries off-season, the ProMariner ProSport HD 20 ensures reliable performance while being kind to the environment.
