ProMariner ProSport HD 8 Gen4 8 Amp Battery Charger 12/24v 2 Bank 120v Input

ProMariner ProSport HD 8 Gen4: Reliable 12/24v 2 Bank Battery Charger

ProMariner ProSport HD 8 Gen4 8 Amp Battery Charger 12/24v 2 Bank 120v Input

ProMariner ProSport HD 20 Gen4

8 Amp Battery Charger 12/24v 2 Bank 120v Input

Model: 44008

• Microprocessor and software controlled charging technology for fast, precise charging.
• 100% of all available charging amps are utlilized by distributing unused charging amps to any one or combination of all batteries as needed.
• Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode.

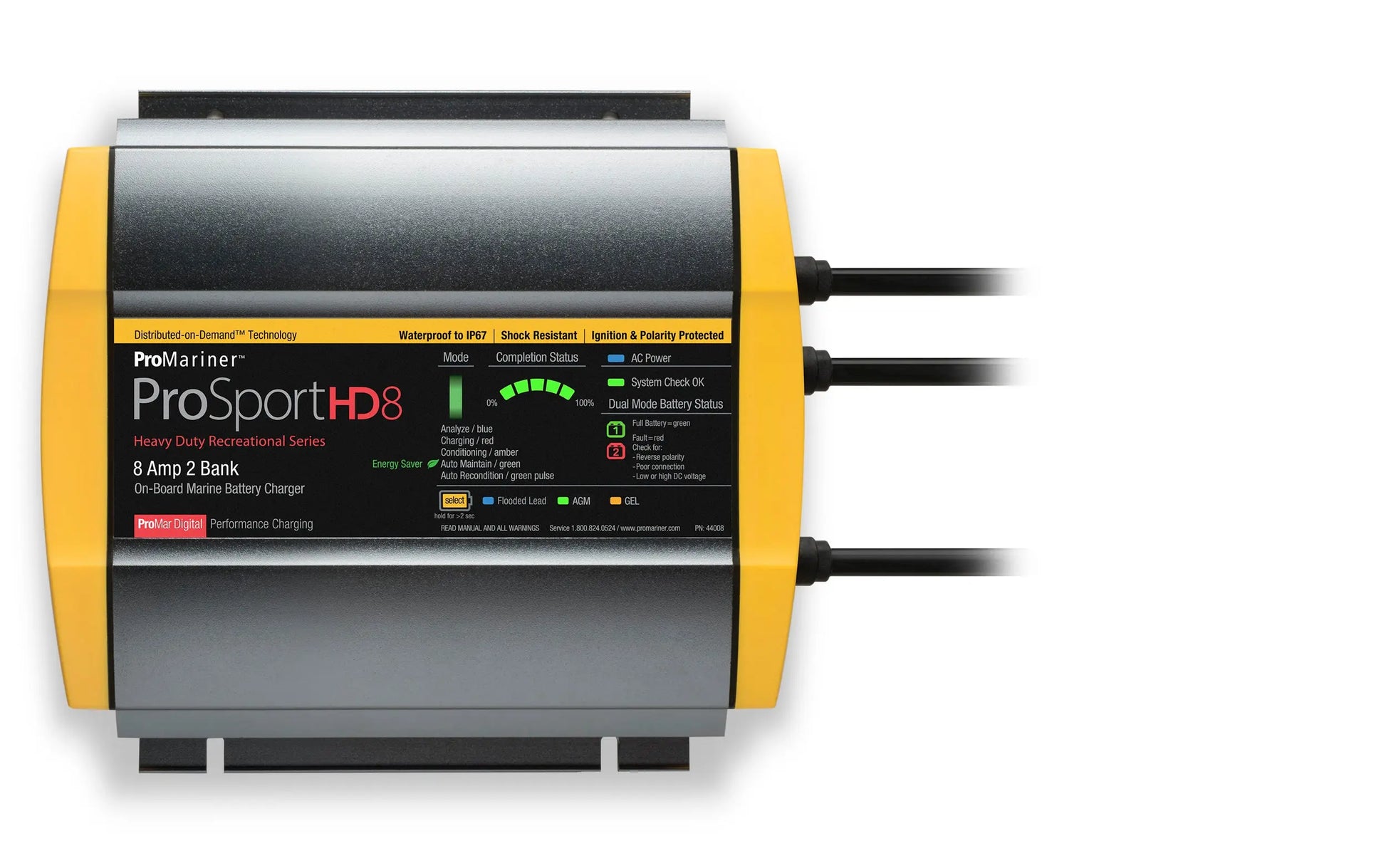

• LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Mult-stage Charge Mode, Systems Check OK, individual Battery Status and Battery Type indication.
• Up to 40% lighter compared to an opoxy filled charger.
• Monitor and auto maintain batteries only when needed to maintain full staye of charge. This significantly reduces AC power consumption.
• 5 Stages: Analyzes, charages, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life.
• Dual inline waterproof fuses, reverse polarity, over-temperatures, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B.
• Pre-wired with 6 feet AC and DC cables.
• Battry Type: Group 24-31 Flooded, AGM, HP AGM, & GEL batteries
• 3 Year Warranty

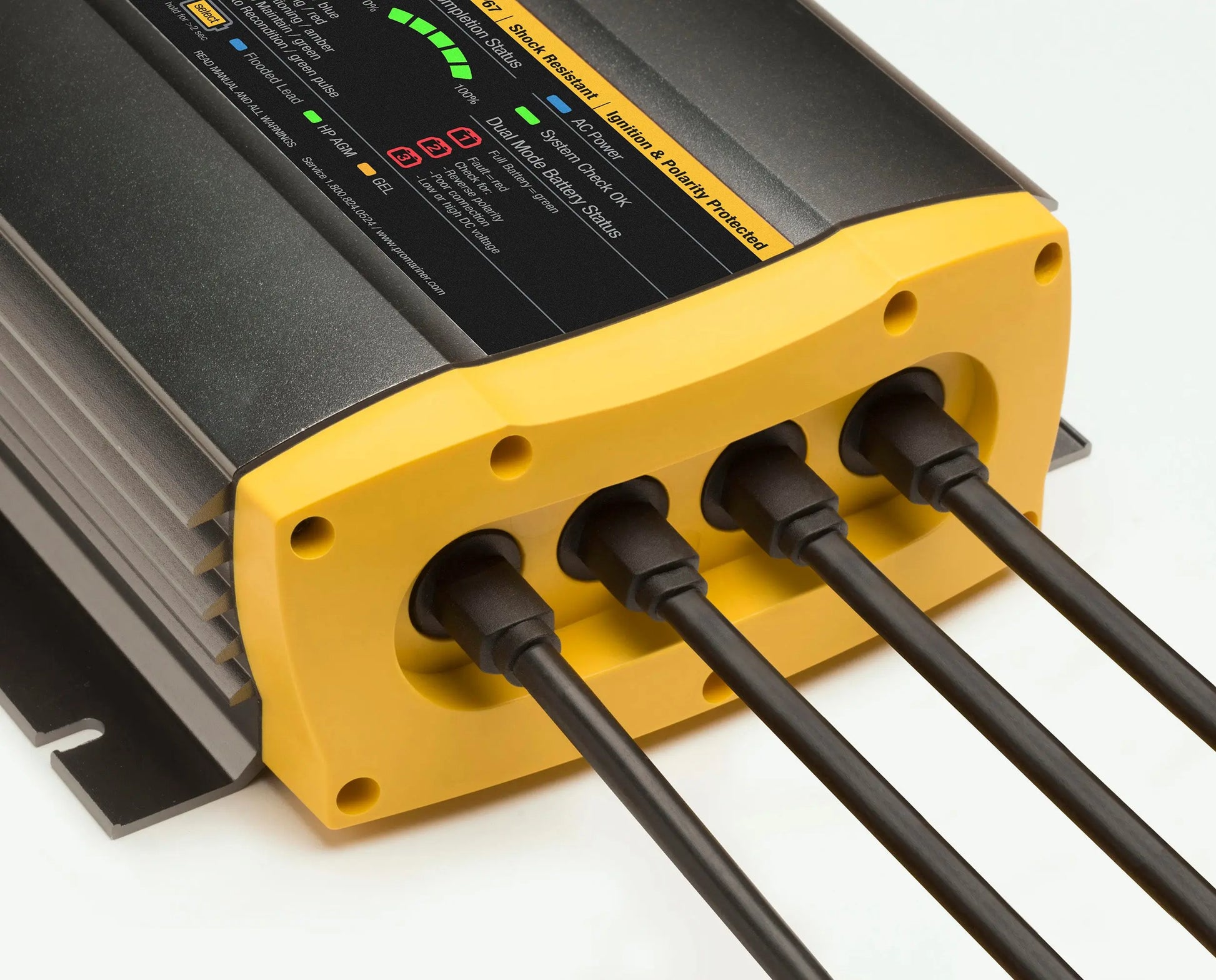

ProSpsortHD Generation 4 boasts a new tri-surface heatsink design. This new heavy-duty lightweight design delivers significantly faster charging trhoug optimal cooling, while delivering true rated amp output during charge mode.

ProSprortHD'S enhanced microprocessor and software provides new digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, invididual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and Gel batteries. HP AGM profile on ProSport HD 20 Dual only.

Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status.

Desiagned for use in harsh enviornments with our industrial grade jacketed DC and AC power cables which include new modled strain reliefs and wire splitters.

Specifications

DC Voltage Systems12/24

Amps
8

No. of Batteries
2

AC & DC Cable Length
6 feet/6 feet

Size
7.9x8.9"x2.9 in

Weight
5.2 lbs

AC in
1.20v AC + 10% 50/60Hz

AC Plug
NEMA 5-15

"

Advanced Charging Technology for Marine Batteries

The ProMariner ProSport HD 8 Gen4 is designed to deliver reliable and efficient charging for both 12v and 24v marine batteries. Featuring a powerful 8 Amp output and a two-bank charging system, this battery charger simultaneously monitors and charges two batteries independently. Its advanced multi-stage charging technology ensures optimal battery health by preventing overcharging and sulfation while providing a safe and stable power supply. Whether used on boats or other marine applications, the ProSport HD 8 Gen4 is engineered to extend battery life and maximize performance even in harsh conditions.

User-Friendly Features and Easy Installation

This battery charger from ProMariner is built with the end-user in mind, incorporating intuitive LED indicators that display charging status clearly. The model supports 120v AC input, making it compatible with common power sources on board. Installation is straightforward thanks to its compact design and included mounting hardware, allowing for convenient placement in tight spaces. The charger’s waterproof and corrosion-resistant construction ensures durability in marine environments, giving users confidence in its long-term reliability.

Safety and Efficiency Enhancements

Safety is a top priority for the ProMariner ProSport HD 8 Gen4 charger, as it includes built-in protection against reverse polarity, short circuits, and overheating. This safeguards both the batteries and the vessel’s electrical systems. The charger operates with quiet efficiency, minimizing power consumption while maintaining consistent output. Additionally, its automatic temperature compensation feature adjusts the charging current to accommodate varying temperature conditions, ensuring batteries are charged reliably regardless of environment. Overall, the ProSport HD 8 Gen4 delivers dependable, high-performance charging tailored to marine applications.
