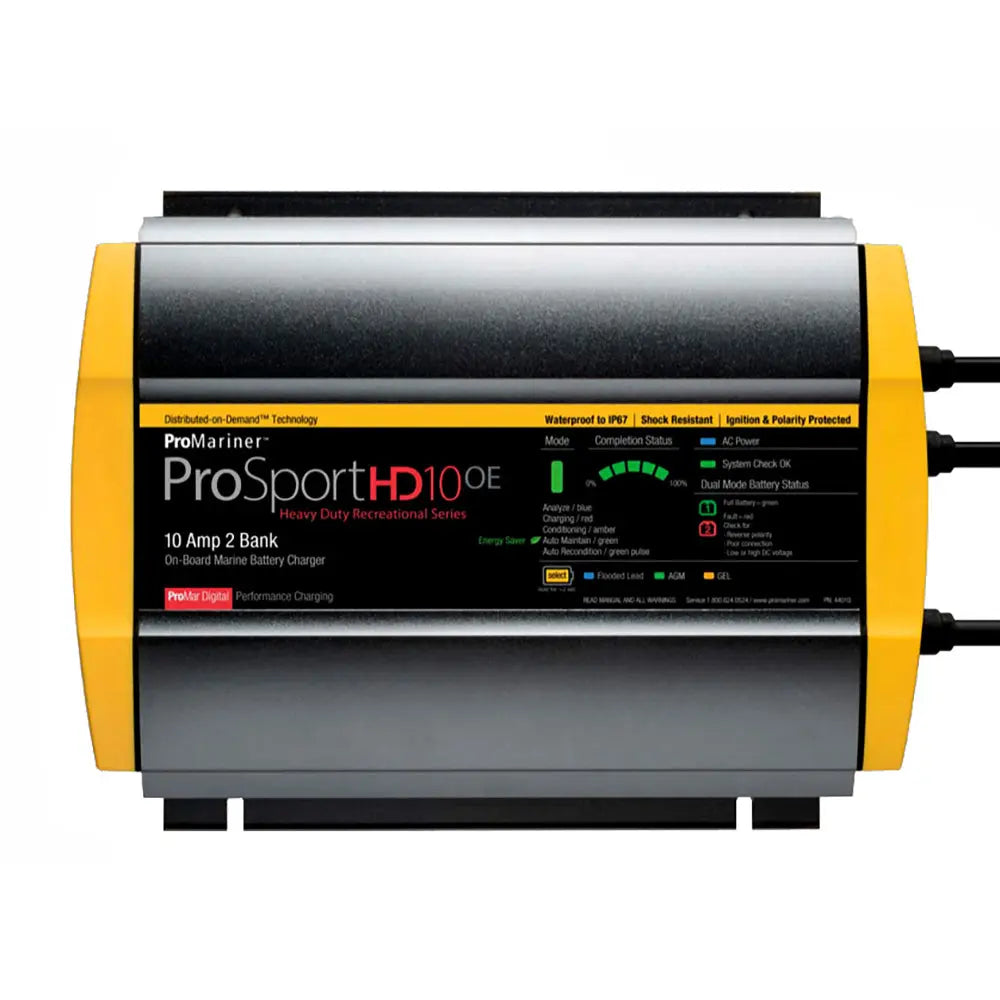

ProMariner ProSportHD 10 Gen 4 10 Amp 2-Bank Battery Charger

ProSportHD 10 Gen 4 - 10 Amp - 2-Bank Battery Charger

ProSportHD Generation 4 boasts a tri-surface heatsink design. This heavy-duty lightweight design delivers significantly faster charging through optimal cooling while delivering true rated amp output during charge mode.

ProSportHDs enhanced microprocessor and software provide digital features including a fuel gauge style Charge Completion Monitor, Charge Mode, individual Fault indicators, and three digitally selectable performance charge profiles for Flooded (lead acid), AGM, and GEL batteries. HP AGM profile on ProSportHD 20 Dual only.

Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real-time installation and battery fault status.

Designed for harsh environments with our industrial-grade jacketed DC and AC power cables which include molded strain reliefs and wire splitters.

Features:

• ProMar Digital Technology Microprocessor and software-controlled charging technology for fast, precise charging
• Distributed-On-Demand Technology 100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as needed
• Heavy Duty Tri-Surface Extruded Heat Sink Design Upper, lower, and rear-facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode
• Expanded LED Display with Completion Status Gauge LED fuel gauge style completion status. Four-color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status, and Battery Type indication
• Lightweight Design Up to 40% lighter compared to an epoxy-filled charger
• Auto-Maintain Energy Saver Mode Monitor and auto-maintain batteries only when needed to maintain a full state of charge. This significantly reduces AC power consumption
• Fully Automatic 5-Stage Digital Performance Charging 5 Stages: Analyzes, charges, conditions, auto maintains, and reconditions batteries once a month during storage periods. Fully charges and extends battery life
• Built-in Quality and Safety Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B
• Easy installation and operation Pre-wired with 6 AC and DC cables
• Battery Type: Group 2431 Flooded, AGM, HP AGM and GEL batteries
• 3 Year Warranty

Specifications:

• DC Voltage Systems: 12/24v
• DC Output: Two 12VDC @ 10 amps, fully distributed
• Charging/Maintaining VDC Output: Up to 14.7VDC/13.8VDC
• Battery Types: Flooded (lead acid), AGM, or Gel
• AC Input: 120VAC +/-10%, 50/60Hz, 3A
• Amps: 10
• No. of Batteries: 2
• AC DC Cable Length: 6 ft.
• Dimensions (inch): 10.5 x 7.9 x 2.9

The ProMariner ProSportHD 10 Gen 4 is a high-performance, heavy-duty battery charger designed for demanding marine and industrial applications. Featuring a tri-surface heatsink design, this charger ensures optimal cooling to deliver true rated 10 amps during charge mode, enabling faster and more efficient charging. Its lightweight construction reduces weight by up to 40% compared to epoxy-filled models, making installation easier and reducing overall system weight. The advanced microprocessor and digital controls provide precise, automatic 5-stage charging, which enhances battery performance and prolongs battery life. The system includes real-time indicators such as a fuel gauge style charge completion monitor, multi-stage LED status bar, and fault indicators for individual batteries, giving users clear insights into charging progress and system health. Designed for versatility, it supports flooded lead acid, AGM, GEL, and HP AGM batteries, with digitally selectable profiles tailored to each type for optimized charging. The charger also features a unique distributed-on-demand technology that dynamically allocates available amps to all batteries as needed, ensuring maximum efficiency regardless of load. Safety and durability are prioritized with waterproof fuses, reverse polarity protection, over-temperature, over-current, over-voltage, and ignition safeguards, all certified to marine safety standards. Its auto-maintain energy saver mode reduces power consumption during storage, while the built-in system check and battery status indicators facilitate easy monitoring. Installation is straightforward, with pre-wired AC and DC cables, and its compact size fits well in tight spaces. This charger is ideal for boat owners and industrial operators seeking reliable, fast, and safe battery management with a three-year warranty for added peace of mind.

Features:

• ProMariner Digital Technology microprocessor for fast, precise charging

• Distributed-On-Demand Technology for efficient amp utilization across batteries

• Heavy-duty tri-surface heat sink design for optimal cooling and constant current delivery

• Expanded LED display with multi-stage status indicators including charge completion and fault alerts

• Up to 40% lighter than traditional epoxy-filled chargers for easier handling and installation

• Auto-maintain energy saver mode to reduce power consumption during storage

• Fully automatic 5-stage digital charging process that analyzes, charges, conditions, and reconditions batteries

• Built-in safety features including waterproof fuses, reverse polarity, temperature, current, voltage, and ignition protection

• Pre-wired with 6 ft. AC and DC cables for easy installation

• Supports various battery types including Flooded, AGM, GEL, and HP AGM

• Compact size suitable for tight spaces with robust construction for harsh environments

• Three-year warranty ensuring reliable performance and support
