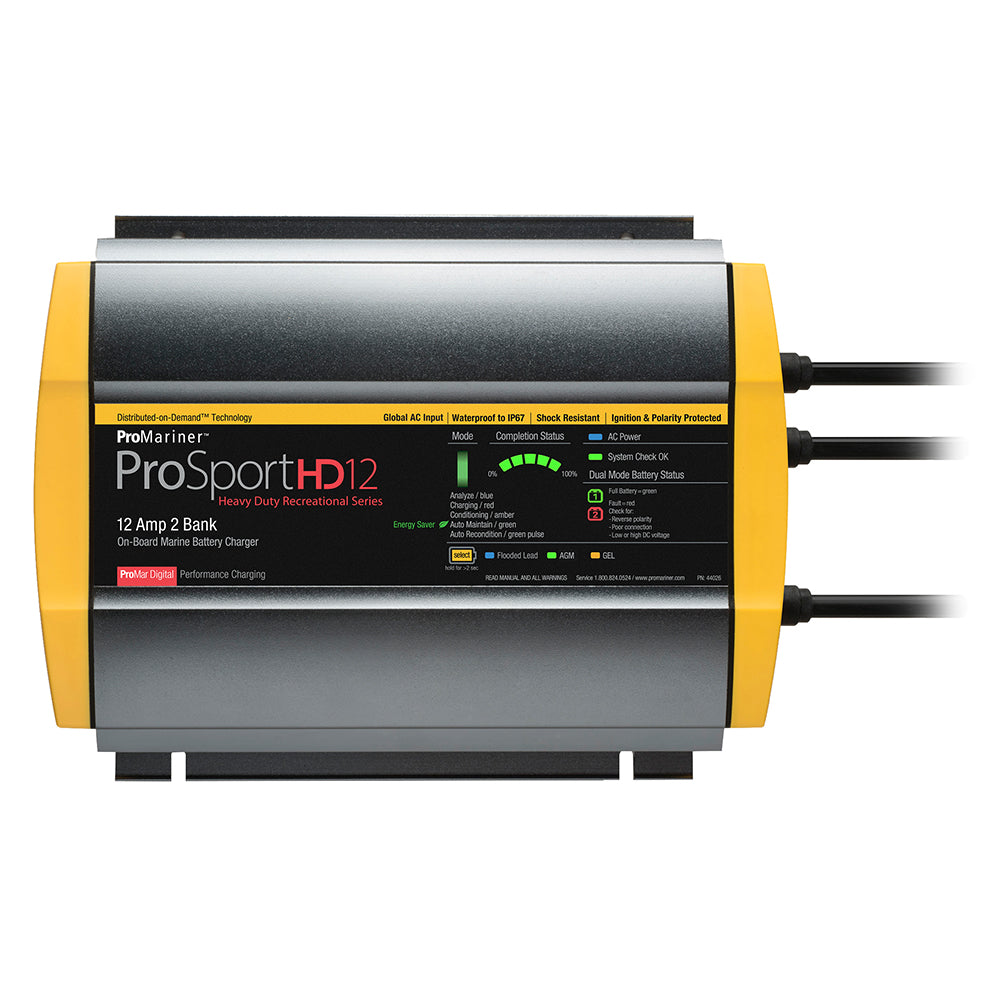

ProMariner ProSportHD 12 Global Gen 4 12-Amp 2-Bank Battery Charger

ProSportHD 12 Global Gen 4 - 12 Amp - 2 Bank Battery Charger

*C13 Adapter Plug Required*

ProSportHD Generation 4 boasts a tri-surface heatsink design. This heavy-duty lightweight design delivers significantly faster charging through optimal cooling, while delivering true rated amp output during charge mode.

ProSportHD's enhanced microprocessor and software provides digital features including: fuel gauge style Charge Completion Monitor, Charge Mode, individual Fault indicators and three digitally selectable performance charge profiles for Flooded (lead acid), AGM and GEL batteries. HP AGM profile on ProSportHD 20 Dual only.

Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real time installation and battery fault status.

Designed for use in harsh environments with our industrial grade jacketed DC and AC power cables which include molded strain reliefs and wire splitters.

Features:

• ProMar Digital Technology Microprocessor and software controlled charging technology for fast, precise charging
• Distributed-On-Demand Technology 100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as needed
• Heavy Duty Tri-Surface Extruded Heat Sink Design Upper, lower and rear facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode
• Expanded LED Display with Completion Status Gauge LED fuel gauge style completion status. Four color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status and Battery Type indication
• Lightweight Design Up to 40% lighter compared to an epoxy filled charger
• Auto-Maintain Energy Saver Mode Monitor and auto maintain batteries only when needed to maintain full state of charge. This significantly reduces AC power consumption
• Fully Automatic 5-Stage Digital Performance Charging 5 Stages: Analyzes, charges, conditions, auto maintains and reconditions batteries once a month during storage periods. Fully charges and extends battery life
• Built-in Quality and Safety Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE listed. FCC Class B
• Easy Installation and Operation Pre-wired with 6 AC and DC cables
• Battery Type: Group 2431 Flooded, AGM, HP AGM and GEL batteries
• 3 Year Warranty

Specifications:

• DC Voltage Systems: 12/24v
• Amps: 12
• No. of Batteries: 2
• AC DC Cable Length: 6'/6'
• Size: 7.9" x 11.3" x 2.9"
• Weight: 6.4 lbs
• AC In: 100-240v AC 50/60Hz
• AC Plug: IEC C14

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The ProMariner ProSportHD 12 Global Gen 4 battery charger is designed for demanding marine and industrial applications, providing reliable 12-amp output across two battery banks. Featuring a tri-surface heatsink design, this heavy-duty yet lightweight charger ensures optimal cooling for continuous, true-rated charging performance. Its advanced microprocessor and software systems deliver precise digital control, including a fuel gauge-style charge completion monitor, multiple charge modes, fault indicators, and three selectable profiles for Flooded, AGM, and GEL batteries, with an exclusive HP AGM profile on the dual-bank model. Fully automatic 5-stage charging enhances battery longevity by analyzing, conditioning, and maintaining batteries during storage, while system check indicators provide real-time status updates for installation and battery health. The charger is built to withstand harsh environments, equipped with industrial-grade jacketed DC and AC power cables that feature molded strain reliefs and splitters for durability and ease of installation.
Features include ProMariner’s digital microprocessor-controlled charging technology for fast and accurate power delivery, distributed-on-demand technology that optimally allocates current among batteries, and a heavy-duty tri-surface heat sink for superior cooling. The expanded LED display offers multi-stage status indicators, including a fuel gauge-style completion bar and multi-color LEDs for different charging phases. Its lightweight construction reduces weight by up to 40% compared to epoxy-filled models, facilitating easier handling and installation. Energy-saving auto-maintain mode monitors batteries only when required to reduce power consumption, while safety features such as waterproof inline fuses, reverse polarity protection, and over-temperature safeguards ensure reliable operation. Certified to Marine UL 1236 standards and listed by CEC and DOE, this charger is suitable for various battery types, including Group 24-31 Flooded, AGM, HP AGM, and GEL batteries. The charger comes pre-wired with 6-foot AC and DC cables for straightforward installation and includes a comprehensive 3-year warranty.
Designed for versatility, the ProMariner ProSportHD 12 Global Gen 4 measures approximately 8 inches long, 11 inches wide, and 3 inches high, with a weight of about 13.8 pounds, making it a robust and space-efficient charging solution for marine vessels, RVs, and industrial equipment. Its broad compatibility with 12/24V DC systems and multiple battery configurations ensures dependable performance in demanding environments, making it an essential component for maintaining battery health and extending service life.

Features:

• ProMariner digital microprocessor and software-controlled charging technology for fast, precise charging

• Distributed-On-Demand Technology for optimal current allocation across batteries

• Heavy-duty tri-surface extruded heat sink design for superior cooling and consistent current output

• Expanded LED display with multi-stage status indicators and completion gauge

• Lightweight construction reduces weight by up to 40% compared to epoxy-filled chargers

• Auto-maintain energy saver mode to reduce power consumption during storage

• Fully automatic 5-stage digital charging process for analysis, conditioning, and reconditioning

• Built-in safety features including waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage, and ignition protection

• Certified to Marine UL 1236 standards and CEC and DOE listed

• Pre-wired with 6-foot AC and DC cables for easy installation

• Compatible with Group 24-31 Flooded, AGM, HP AGM, and GEL batteries
