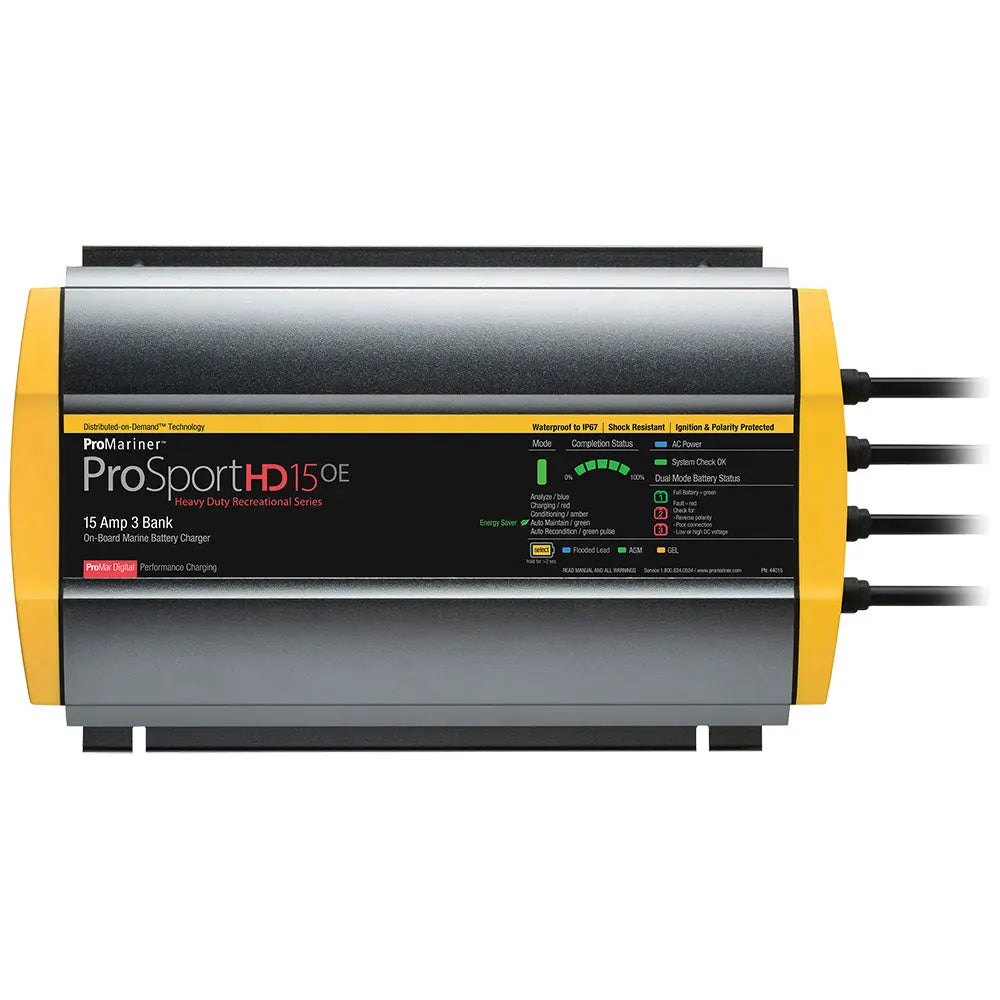

ProSportHD 15 Gen 4 - 15 Amp - 3-Bank Battery Charger
ProSportHD Generation 4 boasts a tri-surface heatsink design. This heavy-duty lightweight design delivers significantly faster charging through optimal cooling while delivering true rated amp output during charge mode.
ProSportHDs enhanced microprocessor and software provide digital features including a fuel gauge style Charge Completion Monitor, Charge Mode, individual Fault indicators, and three digitally selectable performance charge profiles for Flooded (lead acid), AGM, and GEL batteries. HP AGM profile on ProSportHD 20 Dual only.
Fully automatic 5-stage charging enhances battery performance while extending battery life. System Check OK and Battery Status indicators provide real-time installation and battery fault status.
Designed for harsh environments with our industrial-grade jacketed DC and AC power cables which include molded strain reliefs and wire splitters.
Features:
- ProMar Digital Technology Microprocessor and software-controlled charging technology for fast, precise charging
- Distributed-On-Demand Technology 100% of all available charging amps are utilized by distributing unused charging amps to any one or combination of all batteries as needed
- Heavy Duty Tri-Surface Extruded Heat Sink Design Upper, lower, and rear-facing heat sink design for optimal cooling while delivering true rated constant current charging amps during its two charge mode
- Expanded LED Display with Completion Status Gauge LED fuel gauge style completion status. Four-color multi-stage mode LED status bar. Multi-stage Charge Mode, System Check OK, individual Battery Status, and Battery Type indication
- Lightweight Design Up to 40% lighter compared to an epoxy-filled charger
- Auto-Maintain Energy Saver Mode Monitor and auto-maintain batteries only when needed to maintain a full state of charge. This significantly reduces AC power consumption
- Fully Automatic 5-Stage Digital Performance Charging 5 Stages: Analyzes, charges, conditions, auto maintains, and reconditions batteries once a month during storage periods. Fully charges and extends battery life
- Built-in Quality and Safety Dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection. Certified to Marine UL 1236. CEC and DOE are listed. FCC Class B
- Easy installation and operation Pre-wired with 6 AC and DC cables
- Battery Type: Group 2431 Flooded, AGM, HP AGM and GEL batteries
- 3 Year Warranty
Specifications:
- DC Voltage Systems: 12/24v
- DC Output: Two 12VDC @ 15 amps, fully distributed
- Charging/Maintaining VDC Output: Up to 14.7VDC/13.8VDC
- Battery Types: Flooded (lead acid), AGM, or Gel
- AC Input: 120VAC +/-10%, 50/60Hz, 3A
- Amps: 15
- No. of Batteries: 3
- AC DC Cable Length: 6 ft.
- Dimensions (inch): 10.5 x 7.9 x 2.9
The ProMariner ProSportHD 15 Gen 4 is a high-performance, 3-bank battery charger designed for demanding marine and RV applications. Featuring a tri-surface heatsink design, this heavy-duty yet lightweight charger ensures optimal cooling for consistent, true-rated amp output during operation. Its innovative microprocessor and software-controlled digital technology deliver fast, precise charging with advanced features such as a fuel gauge style charge completion monitor, individual fault indicators, and three digitally selectable performance profiles tailored for flooded, AGM, and GEL batteries. The HP AGM profile is exclusive to the ProSportHD 20 Dual model, providing enhanced flexibility for various battery types. Fully automatic 5-stage charging optimizes battery health and lifespan by analyzing, conditioning, and reconditioning batteries as needed, including during storage periods. The system check and battery status indicators provide real-time insights into installation and battery health, simplifying maintenance in harsh environments. Constructed with industrial-grade jacketed DC and AC power cables, equipped with molded strain reliefs and splitters, this charger is built for durability and reliability in tough conditions.
Features:
- ProMariner Digital Technology Microprocessor and software-controlled charging for fast, precise results
- Distributed-On-Demand Technology ensures maximum utilization of available charging amps across all batteries
- Heavy Duty Tri-Surface Extruded Heat Sink Design for optimal cooling and consistent current delivery
- Expanded LED display with multi-stage status bar, charge completion gauge, and individual battery indicators
- Lightweight construction up to 40% lighter than epoxy-filled chargers for easier handling and installation
- Auto-Maintain Energy Saver Mode reduces power consumption by only maintaining batteries when necessary
- Fully Automatic 5-Stage Digital Performance Charging system extends battery life and improves performance
- Built-in safety features include waterproof fuses, reverse polarity protection, and safeguards against over-temperature, over-current, over-voltage, and ignition issues
- Pre-wired for easy installation with 6 ft. AC and DC cables
- Compatible with Group 24/31 Flooded, AGM, HP AGM, and GEL batteries
- Certified to Marine UL 1236, CEC, and DOE standards, with FCC Class B compliance
- 3-year warranty ensures long-term support and reliability
