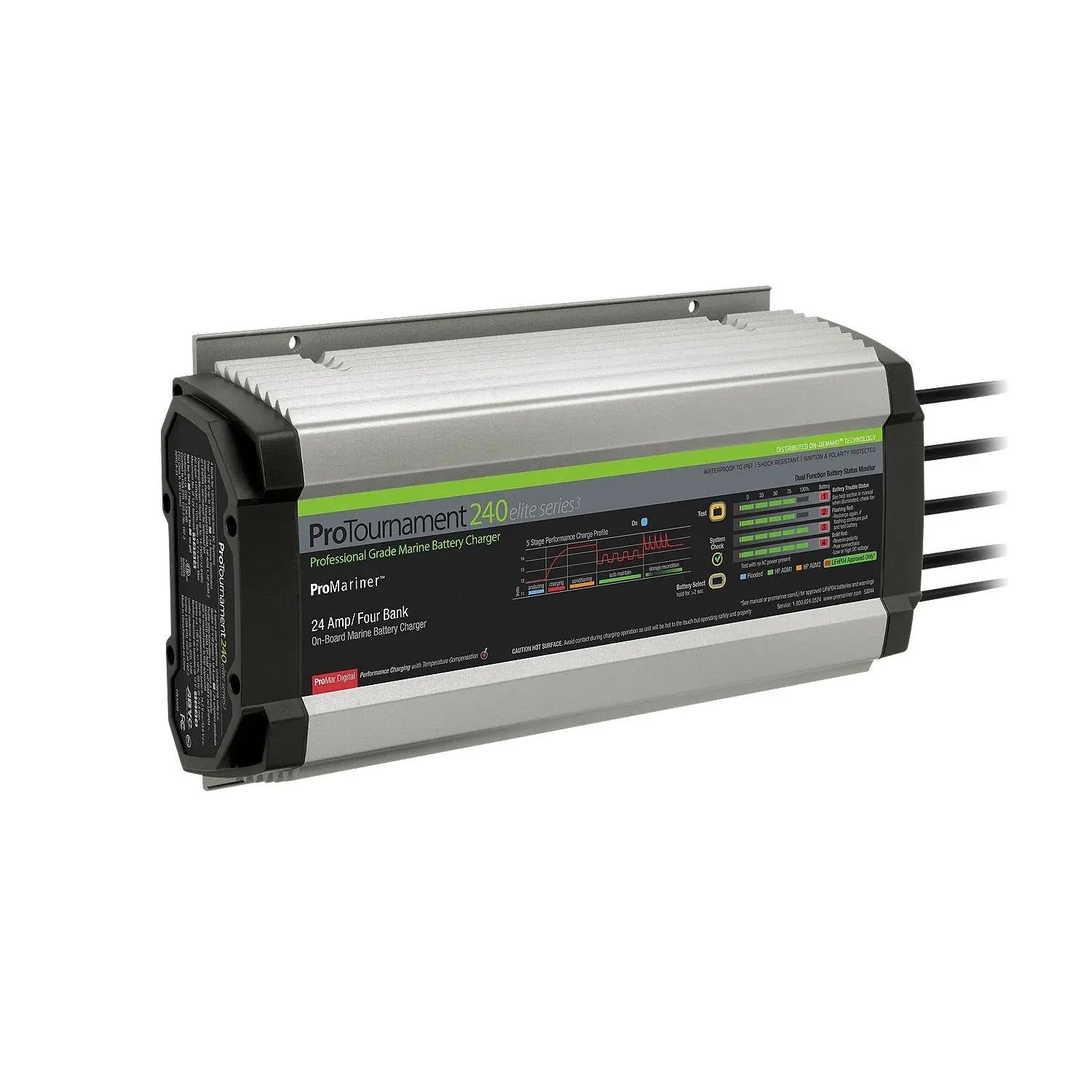

ProMariner ProTournament 240 24 Amp Battery Charger 12/24/36/48v 4 Bank 120v Input

Explore the Features of the ProMariner ProTournament 240 Battery Charger

ProMariner ProTournament 240 24 Amp Battery Charger 12/24/36/48v 4 Bank 120v Input

ProMariner ProTournament Elite 3 Series 240 4 Bank

Model: 53244

• IP 67 Sealed Waterproof Design
• Line of Sight, Charge Status AC Glow Plug
• 4 Digitally Selectable Charge Profiles
• Dual Mode Battery Status Monitor
• Distributed-On-Demand TechnologyTM

The new ProTournament Elite 3 provides a competitive edge getting you on the water first with power to last. Using advanced thermal modeling, its tri-surface aluminum heat sink delivers true-rated constant current charging amperage for the fastest charge times.

ProTournament Elite 3 boasts an industry first LED Charge Status AC Glow Plug, that when connected to an extension cord outside of your boat, illuminates 3 individual colors for charging, conditioning or auto maintaining your fully charged batteries. High Power ProTournamentelite 360 and 500 models feature an industry leading selectable Turbo Charge Mode with Forced Induction Power Flow Cooling for time critical charging.

Full output 5-stage digital performance charging to charge, condition, auto maintain and storage recondition your batteries once a month, maximizing battery life and performance. 100% charging performance with AC voltage as low as 90 VAC. System Check OK and Check Battery indicators, Charge Mode LEDs and a dual mode battery status monitor displaying charge progress or on the water power remaining. User selectable charging profiles for Flooded, AGM
and ProMariner approved LiFePO4 chemistries.

Designed to last in harsh environments and certified to UL Marine 1236 while meeting new energy efficient CEC and DOE requirements. Built-in safety features including dual inline waterproof fuses, reverse polarity, over-temperature, over-current, over-voltage and ignition protection.

Specifications

DC System Voltage12/24/36/48v DC

Amps ourtput
24

AC & DC Cables
6 feet

VAC Max Amps
120VAC +/- 10% VAC/7.5A

AC Plug
NEMA 5-15

Banks
4

Powerful Multi-Voltage Charging Capability

The ProMariner ProTournament 240 is a versatile battery charger supporting 12, 24, 36, and 48-volt battery banks. This multi-voltage capability makes it ideal for a wide range of marine applications, from small boats to larger vessels. The 24 amp charging current ensures fast and efficient battery charging while maintaining safety and battery health. This flexibility means users can rely on one charger model for different battery setups, making it a convenient and economical solution for marine power management.

Four Independent Charging Banks

Equipped with four independent charging banks, the ProMariner ProTournament 240 can simultaneously charge and maintain multiple battery banks. This feature is essential for modern marine vessels that use separate batteries for starting, trolling motors, and house systems. Each bank operates independently, delivering the correct voltage and amp output to optimize battery performance and extend life. This advanced multi-bank design simplifies onboard power management and enhances overall battery protection.

Reliable and User-Friendly 120V AC Input

The charger operates on a standard 120V AC input, commonly available on most marine vessels at docks and marinas. Featuring an easy-to-install design, the ProMariner ProTournament 240 offers dependable, maintenance-free operation. Its intelligent charging technology automatically adjusts charging stages to prevent overcharging, sulfation, and overheating. This ensures safe and efficient battery conditioning, contributing to longer-lasting battery life and enhanced vessel reliability.
