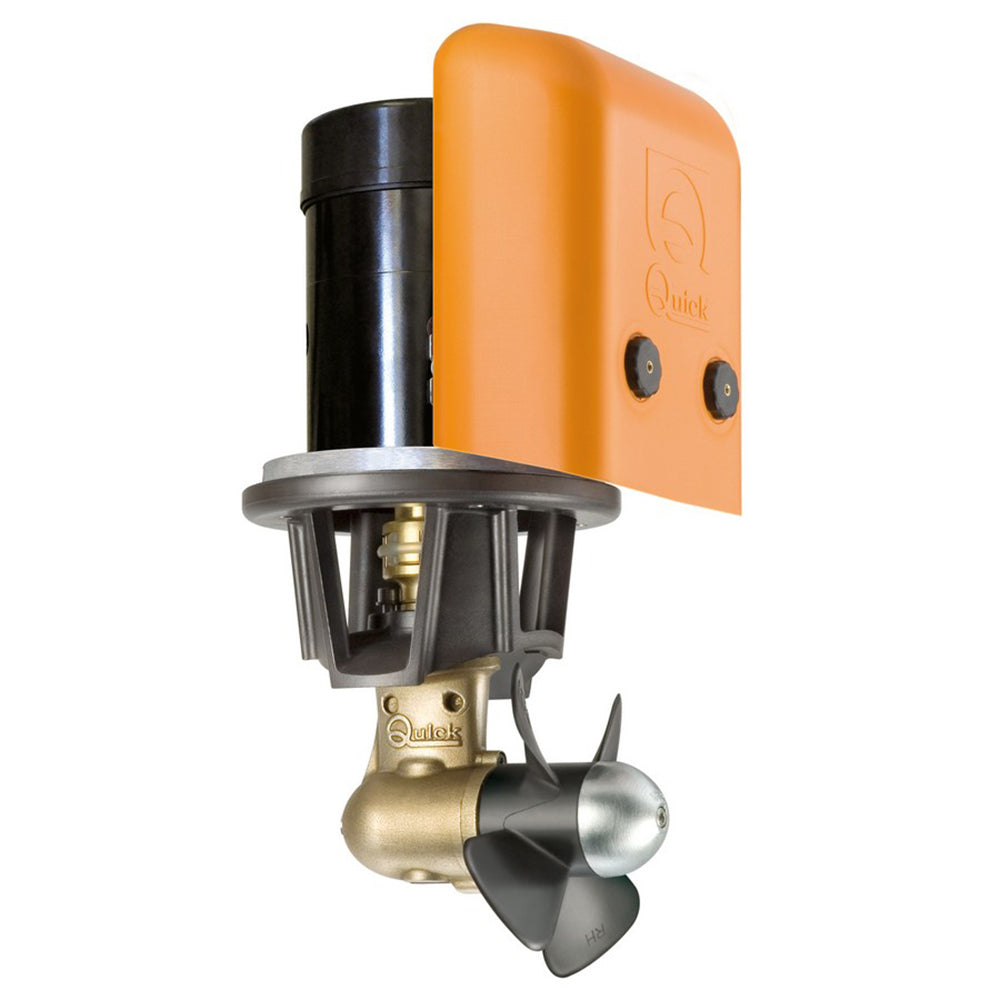

Quick Bow Thruster BTQ 140-40 40KGF - 12V - D140 - 2.2kW for Enhanced Marine Maneuverability

Bow Thruster BTQ 140-40 40KGF - 12V - D140 - 2.2kW

Better Performances, Lower Absorption

The 4-blade Propellers guarantee maximum thrust performance and reduction in current absorption. They are made of composite materials, resistant in every condition. The counter-rotating system offers better thrust performances. The two props have been designed to suit left side and right side, to guarantee the same upper performances in both directions.

Features:

• The Gearbox is created so that the behavior of the propeller is unaffected in either direction.
• The bronze propeller gearleg is provided with a hydrodynamic profile that minimizes turbulence.
• Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life.
• The anodic aluminum protection is easily replaceable. In case of total corrosion of the anode, the prop doesnt get lost because its fixed directly to the pod, independently from the anode.
• The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.

The Motors

New-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application.

Top Safety

In case of relays melting, the TMS remote circuit breaker system switch-off the power to the motor from any place where a TDC panels or a TSC emergency mushroom panels are installed. Motor temperature sensor BTQ motors dont need the thermic sensor to be able to always provide the maximum power when needed. The overheating protection is controlled by the software inside the touch panel or the joystick panel.

The Quick BTQ 140-40 bow thruster delivers reliable and efficient lateral propulsion for boats and yachts, providing 40 kilograms-force of thrust with a 12-volt power supply. Designed with advanced features, this thruster ensures smooth maneuvering even in challenging conditions. Its 4-blade composite propellers maximize thrust while reducing current absorption, leading to improved energy efficiency and performance. The counter-rotating system guarantees balanced thrust in both directions, with left and right side propellers optimized for symmetrical performance. Constructed with durable materials, the bronze gearleg features a hydrodynamic profile that minimizes turbulence, contributing to overall operational stability. The gearbox maintains consistent behavior regardless of thrust direction, and the maintenance-free design with highly resistant components ensures long-lasting service with a perfect lubrication seal for life. The easily replaceable anodic aluminum protection prevents corrosion and secures the propeller in place, independent of the anode's condition. An innovative elastic joint, part of Quick's exclusive design, aligns the motor and gearbox perfectly, absorbing impulses and extending system longevity. The motor's construction utilizes cutting-edge materials to guarantee persistent performance under demanding marine environments. Safety features include a remote circuit breaker system that instantly cuts power in case of relay failure, and integrated temperature sensors that monitor motor health without the need for external thermic sensors. The software-controlled overheating protection ensures maximum power delivery while safeguarding components. Overall, the Quick BTQ 140-40 bow thruster offers a high-performance, low-maintenance solution for precise vessel maneuvering, combining durability, efficiency, and safety in a compact package.

Features:

• Gearbox designed to ensure consistent propeller behavior in both directions

• Bronze propeller gearleg with hydrodynamic profile to minimize turbulence

• Maintenance-free operation with highly resistant components and lifetime lubrication seal

• Replaceable anodic aluminum protection for corrosion prevention

• Exclusive elastic joint for optimized motor and gearbox alignment, absorbing impulses

• New-generation motor materials for maximum output and durability in harsh conditions

• Remote circuit breaker system for safety and quick power shut-off

• Integrated motor temperature sensors for continuous health monitoring

• Software-controlled overheating protection to ensure maximum power and safety
