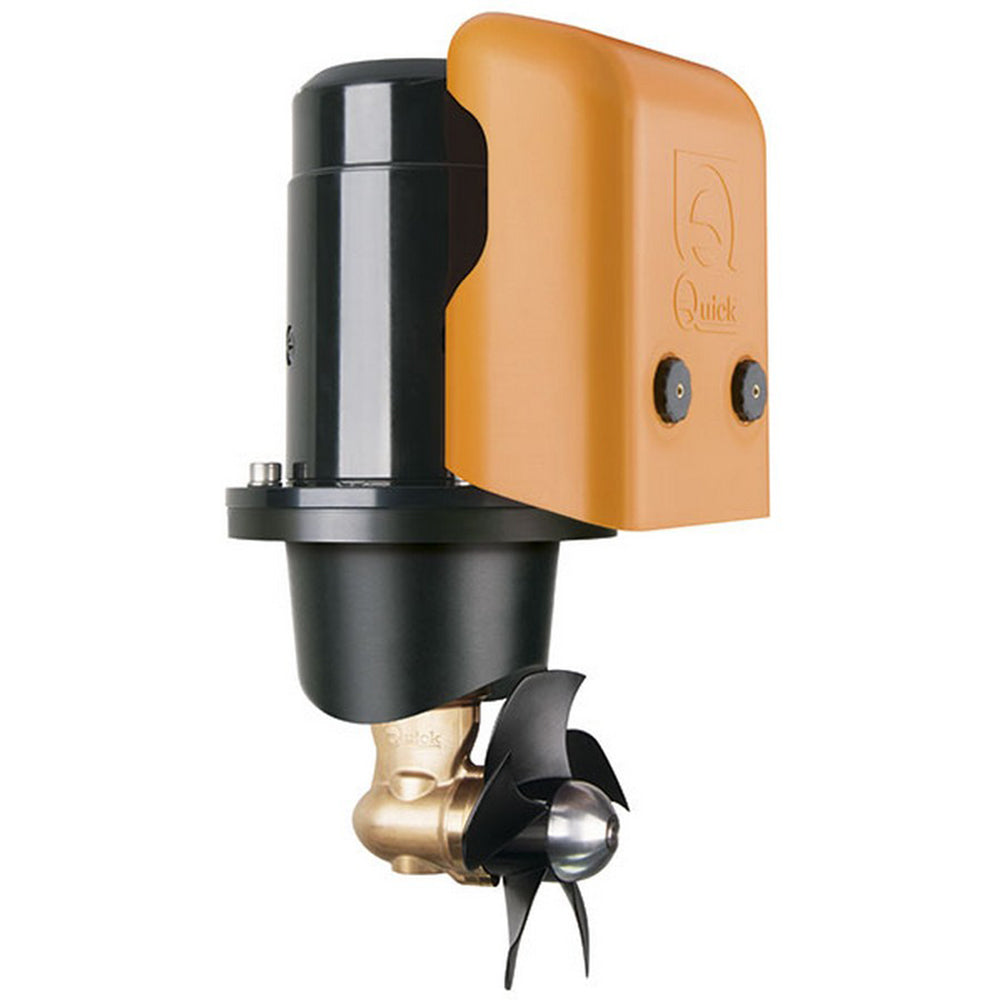

Quick BTQ 125-40 Bow Thruster, 40 kgf, 12V, D125, 2.2 kW – FGBT12540120T00

Bow Thruster BTQ 125-40 40KGF - 12V - D125 - 2.2kW

Better Performances, Lower Absorption

The 4-blade Propellers guarantee maximum thrust performance and reduction in current absorption. They are made of composite materials, resistant in every condition. The counter-rotating system offers better thrust performances. The two props have been designed to suit left side and right side, to guarantee the same upper performances in both directions.

Features:

• The Gearbox is created so that the behavior of the propeller is unaffected in either direction.
• The bronze propeller gearleg is provided with a hydrodynamic profile that minimizes turbulence.
• Maintenance is not required since the special highly resistant components guarantee a perfect lubrication seal for life.
• The anodic aluminum protection is easily replaceable. In case of total corrosion of the anode, the prop doesnt get lost because its fixed directly to the pod, independently from the anode.
• The elastic joint that optimizes the alignment between motor and gearbox is an exclusive Quick design. This acts as an even tension device, preserving the operating system from impulses from the bow thruster, with above-average results.

The Motors

New-generation materials have been chosen to constantly guarantee required output and maximum performance, given the severe conditions required by the application.

Top Safety

In case of relays melting, the TMS remote circuit breaker system switch-off the power to the motor from any place where a TDC panels or a TSC emergency mushroom panels are installed. Motor temperature sensor BTQ motors dont need the thermic sensor to be able to always provide the maximum power when needed. The overheating protection is controlled by the software inside the touch panel or the joystick panel.

Quick BTQ 125-40 Bow Thruster delivers dependable maneuvering performance for boats requiring powerful, efficient lateral thrust. Designed for 12V electrical systems, this 2.2 kW bow thruster produces 40 kgf of thrust through a D125 tunnel configuration. The Quick part number FGBT12540120T00 identifies this complete thruster assembly for streamlined selection and installation planning.

Efficient Propeller Performance

The four-blade composite propellers are engineered to provide strong thrust while reducing current absorption. Their durable construction resists demanding marine conditions, while the counter-rotating propeller system improves overall efficiency and directional performance. Dedicated left- and right-side propeller designs help maintain consistent thrust in both directions. The gearbox is designed so propeller behavior remains balanced regardless of operating direction.

Durable Gearleg and Low Maintenance

A bronze propeller gearleg features a hydrodynamic profile that helps minimize turbulence and support smooth water flow. Highly resistant internal components provide a long-lasting lubrication seal, eliminating routine gearbox maintenance. The replaceable anodic aluminum protection can be serviced when needed, while the propeller remains secured directly to the pod even if the anode is fully depleted. An exclusive Quick elastic joint helps optimize motor-to-gearbox alignment, equalizes tension, and protects the drive system from operating impulses.

Motor Safety and Control

The BTQ motor uses new-generation materials selected to deliver reliable output in demanding marine applications. For enhanced protection, the TMS remote circuit breaker system can disconnect motor power from locations equipped with a TDC control panel or TSC emergency mushroom panel if the relays melt. The motor temperature sensor is not required for the BTQ motor to deliver maximum available power. Overheating protection is managed through software in the compatible touch panel or joystick panel, supporting safe and responsive operation.

Features:

• 40 kgf of thrust from a 2.2 kW motor for effective bow maneuvering
• 12V electrical system compatibility

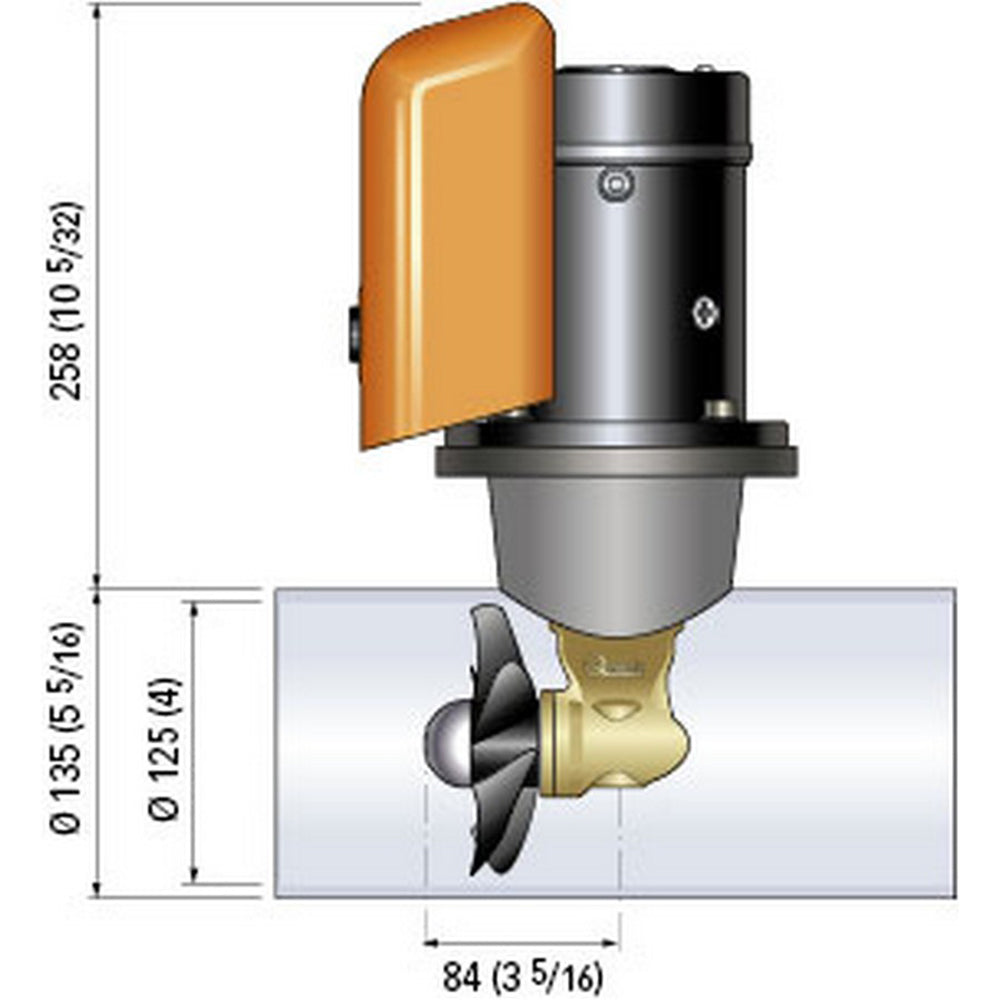

• D125 tunnel configuration
• Four-blade composite propellers provide efficient thrust with reduced current absorption
• Counter-rotating propeller system supports balanced performance in both directions
• Left- and right-side propellers are designed for consistent directional output
• Hydrodynamic bronze gearleg profile helps minimize turbulence
• Sealed, highly resistant gearbox components eliminate routine lubrication maintenance
• Replaceable anodic aluminum protection helps protect underwater components from corrosion
• Propeller remains secured to the pod independently of the anode
• Quick elastic joint helps maintain motor-to-gearbox alignment and absorb operating impulses
• TMS remote circuit breaker system provides emergency motor power shutoff capability
• Software-controlled overheating protection through compatible touch or joystick panels
• Brand: Quick
• Part Number: FGBT12540120T00
