SKU:33715

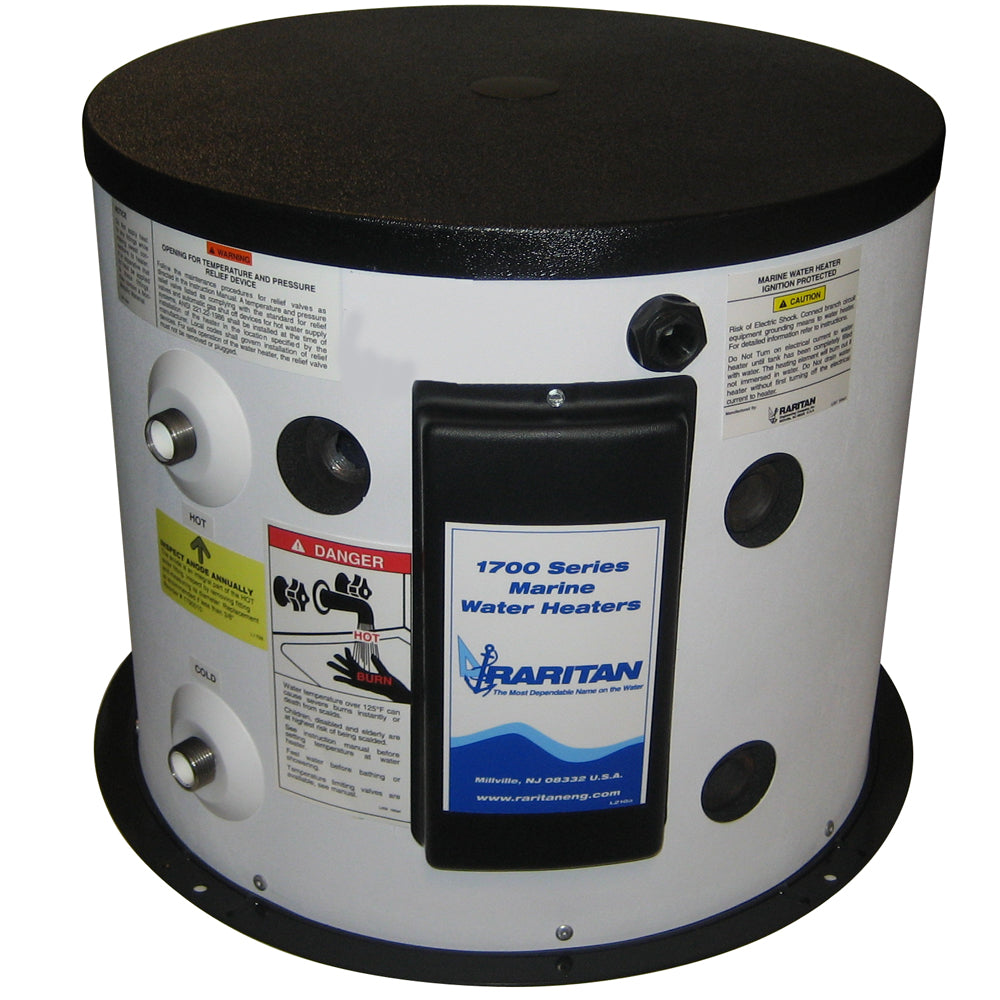

1700 Series Water Heater
120v
12 Gallon
With Engine Heat Exchanger
The "1700 Series" water heater provides hot water for galley and shower. Dense foam insulation provides better and longer heat retention than traditional fiberglass. The tank itself is protected by a 75 PSI T P (temperature and pressure) relief valve. The cylindrical design of the tank enables it to withstand more pressure than a cube shaped tank.
Heat exchanger models can be connected to the engine cooling system. This provides the added convenience of hot water when underway or generator power is not available. The innovative heat exchanger is over seven feet in length and is evenly coiled throughout the interior of the tank, providing hot water rapidly and efficiently.
Raritan's water heaters use an ignition protected thermostat. Although it is factory set to 120F, it is adjustable from 110 to 160F and has a safety shut down limit of 190F. All models and sizes have the plumbing connections on the same side to simplify installation. Hot and cold water connections are 3/4" male NPT (National Pipe Thread). Heat exchanger connections are 3/4" female NPT.
Benefits:
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
The Raritan 12-Gallon Hot Water Heater with Heat Exchanger is an essential upgrade for marine applications, providing reliable hot water for galley and shower needs. Designed with a durable glass-lined steel tank, this model offers superior longevity and resistance to corrosion, making it well-suited for the rigors of the marine environment. Its cylindrical shape allows it to withstand higher pressure levels compared to traditional square tanks, ensuring safety and durability during operation. The dense foam insulation enhances heat retention, reducing energy consumption and maintaining consistent water temperature over extended periods.
Integrating seamlessly with existing onboard pressure systems, the Raritan 1700 Series water heater features an ignition-protected thermostat, factory set to 120°F but adjustable between 110°F and 160°F, with a safety shutdown at 190°F. The plumbing connections are conveniently located on the same side, simplifying installation, with 3/4-inch NPT female and male fittings for hot, cold, and heat exchanger connections. The heat exchanger, over seven feet long and evenly coiled within the tank, enables rapid and efficient hot water delivery by connecting to the engine cooling system, allowing hot water to be available underway or when generator power is unavailable.
The unit boasts a corrosion-resistant polymer jacket, environmentally friendly CFC-free foam insulation, and a replaceable magnesium anode to neutralize acids and extend tank life. Its proven long-life design and easy retrofit capabilities make it a reliable choice for marine environments. Each unit is individually tested, assembled by hand, and backed by a five-year limited warranty on the tank, along with a two-year limited warranty on the entire unit supported by Raritan's renowned technical support team. This water heater ensures efficient, safe, and long-lasting hot water for your vessel's needs.
Note: This product may contain chemicals known to cause reproductive harm. For more details, visit P65Warnings.ca.gov.
Features:
