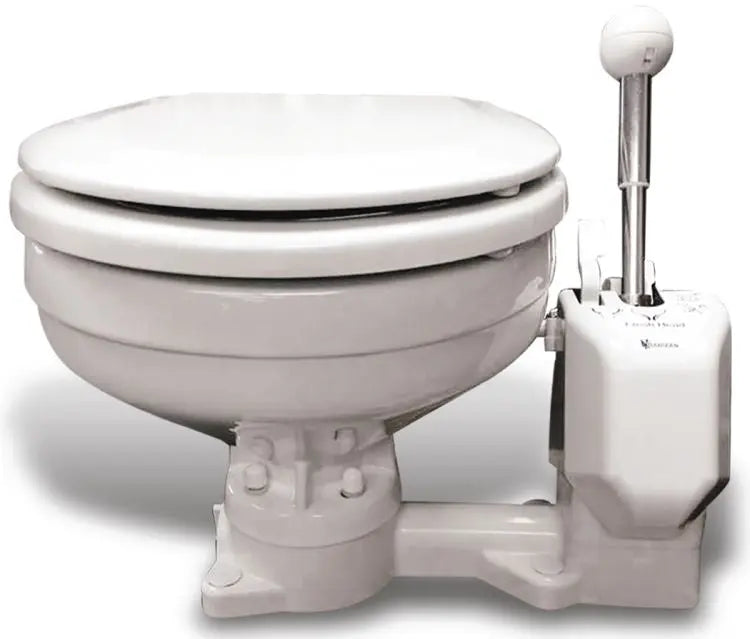

Raritan 25M00 Fresh Head Marine Size Bowl

Raritan 25M00 Fresh Head Marine Size Bowl

Raritan 25M00 Fresh Head

Manual Toilet with Marine Bowl

• The first manual marine toilet to utilize pressurized fresh water — eliminates calcium deposits in discharge hose
• Footprint is a direct replacement for competitive models
• No Thru Hulls necessary when installed with a holding tank
• Low water use toilet

With a diaphragm type pump and telescopic handle, flushing is extremely easy. Owners choose how much water to use. A lever allows water into the bowl to pre-wet it for a better flush. A built-in freshwater backflow prevention includes a vacuum break. A lock-out feature stops backflow coming in through the discharge when not in use.

Rinse Water Inlet
1/2 FPT
Maximum pressure 150 PSI(10 bar)
Minimum 3GPM (11.3 L/min) @ 10 PSI(0.7 bar)

Discharge
1 1/2 Hose
Maximum height 15 feet( 4.5 meter)

Avg Water Consumption per use
1 pint (.47L) for liquid,
3/4 G (2.8L) for solid use

Dimensions
13" H x 17 3/4" W x 17 1/4" D
