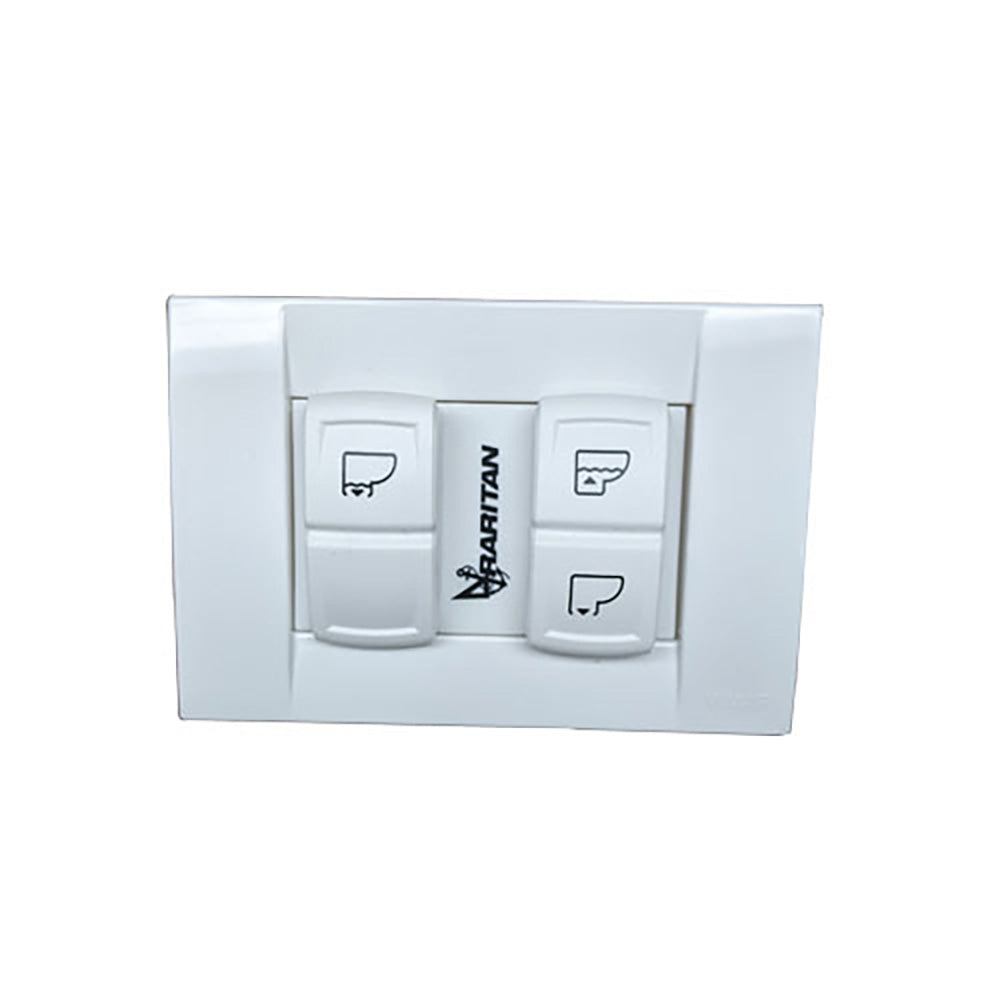

Raritan Multifunction Flush Panel - Model 221600 for Electric Toilets

Multifunction Flush Panel

The Multifunction Flush Panel is a toilet flush control providing momentary flush functions for normal flushing, adding water to a bowl, or emptying water from the bowl. This panel is designed to be used with Raritans Atlantes Freedom Vortex Vac, Marine Elegance, and SeaEra QC models. This panel may also be used with other electric toilets, whereas the discharge pump and rinse water can be operated independently and do not exceed the following voltage and amperage limits: 12VDC - 20 amps or 24VDC - 15 amps

The panel can be mounted in either a vertical or horizontal orientation.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Raritan Multifunction Flush Panel (Part Number 221600) offers versatile control for electric toilet systems, including the Atlantes Freedom Vortex Vac, Marine Elegance, and SeaEra QC models. Designed for ease of installation, this panel can be mounted in either a vertical or horizontal orientation to suit various vessel layouts. Its primary function is to facilitate multiple flush operations through a single, user-friendly interface, enabling normal flushing, adding water to the bowl, or emptying water from the bowl with simple press of a button. This makes maintenance and operation straightforward, especially in marine environments where space and efficiency are crucial. The panel's electrical specifications are compatible with systems operating at 12VDC up to 20 amps or 24VDC up to 15 amps, ensuring reliable performance without overloading the circuit. It is suitable for use with other electric toilets that require independent control of discharge and rinse water functions, providing flexibility across different installations. Ensuring proper function and safety, this control panel is built with durable materials designed to withstand marine conditions. The product complies with safety standards, but users should be aware of California’s Proposition 65 warning regarding chemical exposure, which can cause health issues. For detailed installation instructions and maintenance guidelines, refer to the included manual available online. This product is an essential component for marine sanitation systems, combining convenience, safety, and flexibility in one compact design.

Features:

• Multifunction flush control for normal, water addition, and bowl emptying operations

• Compatible with Raritan Atlantes Freedom Vortex Vac, Marine Elegance, and SeaEra QC models

• Can be mounted vertically or horizontally for flexible installation

• Operates with 12VDC at 20 amps or 24VDC at 15 amps

• Suitable for electric toilets with independent discharge and rinse water functions

• Durable construction designed for marine environments

• Includes safety and warning information per California Proposition 65
