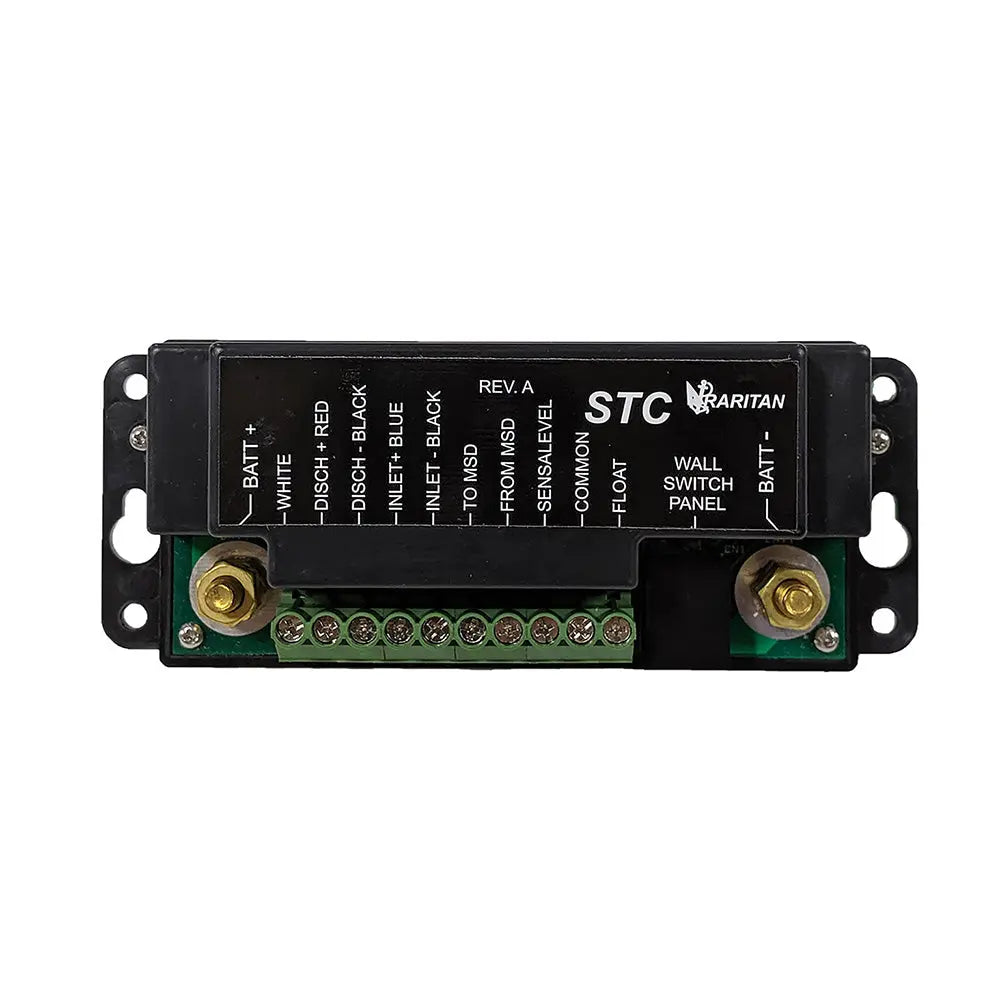

Raritan STC548W Smart Toilet Control Circuit Board for Efficient Flushing

Smart Toilet Control Circuit Board

Smart Toilet Control (STC) is a controller for flushing toilets to optimize water use without compromising the quality of flush.

Control consists of a controller, panel, and 7 of cable.

STC is designed to automatically start a flushing cycle if normal or water-saver buttons are pressed.

The water-only button brings inlet water to the bowl when pressed and the empty-only button evacuates the bowl. Both water-only and empty buttons have a time limit of eight seconds.

Flush timing of initial fill, discharge, and final fill are fully programmable from the panel. If wired, the panel also shows the holding tank's full status. When holding the tank full the LED is lit, and normal and water saver buttons are disabled. Water only and the empty button continues to function. Control is reverse polarity protected. In the case of reverse polarity motors and solenoids will activate as soon as power is connected. After reverse polarity is corrected (within 10 minutes), the unit will work as normal.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Raritan STC548W Smart Toilet Control Circuit Board offers advanced management of toilet flushing systems to optimize water consumption without sacrificing performance. Designed for compatibility with various toilet models, this controller integrates seamlessly with your existing setup, providing programmable flush timing for initial fill, discharge, and final fill cycles. Its intuitive control panel allows users to easily customize flush parameters, ensuring efficient operation tailored to your preferences. The system includes a control unit, panel, and seven connecting cables, delivering a comprehensive solution for modern restroom facilities. The control board features reverse polarity protection, safeguarding against wiring errors that could otherwise damage the system. When wired correctly, the panel displays the full status of the holding tank, with an LED indicator illuminating when the tank is full, disabling normal and water-saver buttons to prevent overfilling. The water-only button activates inlet water to fill the bowl, while the empty-only button evacuates waste; both buttons are limited to an eight-second activation period for safety and efficiency. This smart control system enhances water conservation efforts, reduces waste, and simplifies maintenance, making it ideal for commercial, institutional, or high-traffic restrooms. Please note that the product contains chemicals recognized by California as potentially harmful, and proper handling is recommended. With a durable build and intelligent features, the Raritan STC548W is a reliable choice for modern toilet management systems.

Features:

• Programmable flush timing for initial fill, discharge, and final fill cycles

• Includes control unit, panel, and seven connecting cables for comprehensive installation

• Full tank status display with LED indicator when wired

• Water-only button activates inlet water for bowl filling, limited to eight seconds

• Empty-only button evacuates waste, also limited to eight seconds

• Reverse polarity protection to prevent damage from wiring errors

• Automatic flushing initiation upon button press for both normal and water-saver modes

• Designed for efficient water use without compromising flush quality
